NiSi NM-200S Quick Adjustment Macro Focusing Rail with 360 Degree Rotating Clamp

SKU: IANM200S MFR: NISI-NM-200S
Earn VIP Reward Points

Key Features

  • Achieve pinpoint focus with this NiSi macro focusing rail, ideal for stunning close-up shots.
  • Enjoy smooth, precise adjustments with our CNC machined aluminum focusing rail for macro photography.
  • The 360-degree rotating clamp on this focusing rail offers flexible composition options.
  • This sturdy focusing rail supports up to 11 lbs, ensuring stable support for your camera setup.
  • Travel-friendly & easy to set up, this macro rail enhances your photography on the go.
  • Universally compatible, this focusing rail fits cameras with 1/4" and 3/8" screw mounts.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ERIC J U : Need it to use the Canon MP-E 65 mm macro lens. This lens has no focus ring and requires a focus rail.ALLANR P : Sounds like the perfect addition to do focused macro and close up photography.DOUGLAS D : You Tube reviews

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NiSi NM-200S Specifications

  • Load Capacity

    11 lbs (5kg)

  • Material

    CNC Machined Aluminum

  • Adjustment range

    7.08" (180mm)

  • Clamp

    360 Degree Rotation

  • Mount

    3/8" and 1/4" screw hole

  • Length

    7.9" (200mm)

  • UPC Code

    6972949376079

Models
NiSi NM-180 Macro Focusing Rail with 360 Degree Rotating Clamp
$139.00

In Stock

Novoflex CASTEL-MINI II Focusing Rack ARCA Compatible

SKU: NVCASTELMIII

MFR: CASTEL-MINI-II

$270.00

$351.00

Save:$81.00 (23%)

Special Order

Generally ships in 7-14 days, subject to availability

Equipment TypeFocusing RailFocusing RailFocusing Rail
Brand CompatibilityUniversalUniversalUniversal

About NiSi NM-200S

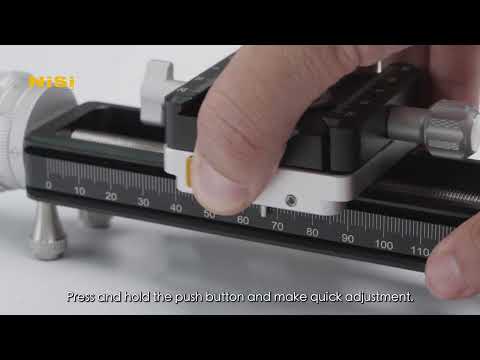

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp gives you the ability to precisely adjust the position of your camera when shooting macro photography. The rail is equipped with an integrated Arca-type compatible quick-release clamp and also includes an Arca-type plate. The clamp is able to be quickly positioned using a push button to make large adjustments quickly. The focusing rail itself has a double-dovetail mount and will fit most Arca-type clamps on the market. The mounting clamp allows 360-degree rotation to change the camera direction without having to remove the plate from the clamp. The adjustment range is 180mm while the rail size is 200mm, maximizing the movement of the camera. The movement is adjusted by a Collapsible Thumb-Screw Knob which makes it easy to adjust and store. The collapsable thumb screw knob has been upgraded and features engraved index markings for precise adjustment. Included is a longer quick-release plate designed for telephoto lenses and with a groove for straps and is easy to lock and release. The maximum load of the rail is 5kg.

The Macro Rail can be mounted in most Arca-type clamps/ball heads on the market and also includes four detachable foot nails that allow the use of the rail directly on the tabletop. The stage travel per revolution is 1mm with engraved index marks on both sides of the rail for fine adjustments. The bottom for the rail includes 3/8" and 1/4" screw hole which allows the use of all tripod heads.

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp is constructed with high-quality CNC machined aluminum and is hard anodized with a corrosion-resistant finish. These features make it scuff and scratch-resistant.

The two focusing rails can be stacked for dual-axis adjustments.

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp is the perfect companion for the NiSi Close Up Lenses.

NiSi NM-200S Features

  • Precisely adjust the position of your camera when shooting macro photography
  • Quickly position the clamp with a push of a button to make large adjustments
  • The perfect companion for the NiSi Close Up Lens
  • Length of rail: 200mm. Adjustment range: 180mm
  • Four detachable foot nails allow the use of the rail directly on the tabletop.
  • Ergonomically designed quick-release plate: easy to lock and release.
  • Longer quick-release plate for telephoto lenses and with grooves for straps
  • Engraved index marks on the both sides of the rail for fine adjustments
  • 360-degree rotating clamp
  • Collapsible Thumb-Screw Knob with indexing: easy to adjust and store
  • The bottom includes 3/8" and 1/4" screw hole which allows the use of all tripod heads
  • The maximum load of the rail is 5kg

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pinpoint focus with this NiSi macro focusing rail, ideal for stunning close-up shots.
  • Enjoy smooth, precise adjustments with our CNC machined aluminum focusing rail for macro photography.
  • The 360-degree rotating clamp on this focusing rail offers flexible composition options.
  • This sturdy focusing rail supports up to 11 lbs, ensuring stable support for your camera setup.
  • Travel-friendly & easy to set up, this macro rail enhances your photography on the go.
  • Universally compatible, this focusing rail fits cameras with 1/4" and 3/8" screw mounts.

What's in the box:

  • NiSi NM-200S Quick Adjustment Macro Focusing Rail with 360 Degree Rotating Clamp
  • Quick Release Plate
  • 4x Detachable Foot Nails
  • NiSi 1 Year Limited Warranty
