Ikan OTTICA Bundle with 3x Full HD NDI|HX 20x PTZ Camera and IP Controller

SKU: IAOTT3PTZ1C MFR: OTTICA-3PTZ-1C
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera, perfect for live streaming events.
  • Control up to 255 PTZ cameras via IP with the included controller for seamless production.
  • Experience smooth, professional-grade video with the 20x optical zoom PTZ camera lens.
  • Enjoy versatile connectivity with HDMI, SDI, and NDI|HX outputs on this PTZ camera.
  • Easily manage camera settings with multiple control protocols like VISCA and Pelco-D/P.
  • Excellent low-light performance ensures clear video in any environment with this PTZ camera.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan OTTICA NDI|HX Specifications

Camera: Image Sensor

Camera: Image Sensor

Jump to...
  • Image Sensor

    1-Chip 1/2.8" CMOS Sensor

  • Sensor Resolution

    Effective: 2.07 Megapixel

  • Signal-to-Noise Ratio

    55 dB

  • White Balance

    2400 to 7100K

Camera: Lens

Jump to...
  • Optical Zoom Ratio

    20x

  • Focal Length

    5.5 to 11mm

  • Field of View

    3.3 to 54.7 Degree

  • Focus Control

    Autofocus
    Manual Focus

Camera: Video Output

Jump to...
  • Output Formats

    SDI, HDMI, RJ45: 1920 x 1080p at 60 fps

  • Embedded Audio

    HDMI/SDI: 2-Channel

  • IP Streaming

    H.264, H.265: 1080p at 60p

Camera: Control

Jump to...
  • Presets

    255 via IP, RS-232, VISCA
    10 via IR

  • Supported Control Protocols

    IP
    Pelco-D
    Pelco-P
    RS-232
    RS-485
    VISCA

Camera: Interfaces

Jump to...
  • Video Output Connectors

    1x HDMI Type A Female
    1x BNC (3G-SDI) Female
    1x RJ45 (NDI) Female

  • Audio I/O

    1x 1/8" / 3.5 mm Mono Line Level Input

  • Control Interface

    1x 8-Pin Mini-DIN (RS-232) Input
    1x 8-Pin Mini-DIN (RS-232) Output
    1x 2-Wire (RS-485) Input

Camera: Power

Jump to...
  • PoE Support

    Yes

  • Power Connectors

    1x Barrel / Coaxial (12 VDC)

Camera: General

Jump to...
  • Tripod Mounting Thread

    1x 1/4"-20 Female

Controller: General

Jump to...
  • Number of Supported Cameras

    255 Channels

  • Supported Control Protocols

    IP
    Pelco-D
    Pelco-P
    RS-232
    RS-422
    RS-485
    VISCA

  • Control Interface

    1x RJ45
    1x 9-Pin D-Sub (RS-232)
    1x Phoenix (RS-422)

Controller: Power

Jump to...
  • PoE Support

    None

  • Power Connectors

    1x Barrel / Coaxial

  • Power Consumption

    0.6 W

  • DC Input Power

    12 VDC at 1 A

Controller: Environmental

Jump to...
  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

Controller: Physical

Jump to...
  • Security Lock Support

    None

  • Dimensions

    12.5 x 7 x 4.3" (31.8 x 17.8 x 10.9cm)

  • UPC Code

    847983032877

About Ikan OTTICA NDI|HX

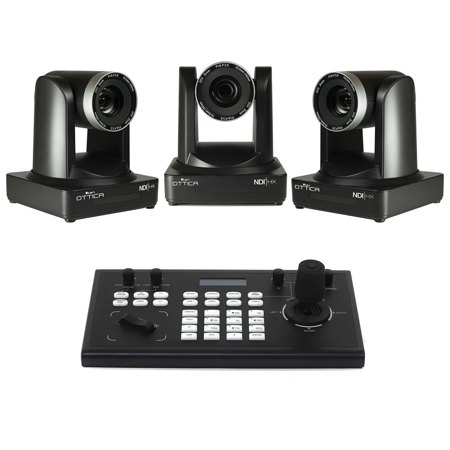

Take your video production to the next level with the OTTICA Bundle, featuring three Full HD NDI|HX 20x PTZ Cameras and a dedicated IP Controller. This comprehensive package is designed to facilitate a seamless multi-camera streaming setup, perfect for a variety of professional applications including houses of worship, broadcast studios, educational facilities, medical environments, sports coverage, and live event production.

The OTTICA NDI|HX PTZ Video Camera is engineered with a high-performance 1/2.8" CMOS sensor and a versatile 5.5-110mm varifocal lens, delivering crisp 1080p video at a smooth 60 frames per second. With 20x optical zoom, you can capture every detail from afar without compromising image quality. The camera's Power over Ethernet (PoE) capability simplifies installation by combining power and network connectivity into a single cable, while multiple output options such as HDMI, SDI, and Ethernet (NDI|HX) ensure compatibility with a wide range of systems.

The camera's advanced step drive motor mechanism and motor drive controller enable precise and whisper-quiet PTZ movements, essential for maintaining the sanctity of live events and productions. With support for H.264/H.265 video compression and various audio compression formats like AAC, MP3, and G.711A, the OTTICA cameras ensure efficient streaming even in bandwidth-limited scenarios.

Image quality is paramount, and the OTTICA cameras excel with advanced ISP processing algorithms that produce vivid, high-resolution images with excellent color rendition. The 3G-SDI interface allows for long-distance transmission up to 100 meters, maintaining a high-quality 1080p60 signal.

The camera's autofocus technology is both swift and stable, ensuring that your subjects remain in sharp focus. Additionally, the camera boasts a high signal-to-noise ratio (SNR) and employs sophisticated 2D/3D noise reduction to maintain image clarity while minimizing noise.

For ease of installation and management, the OTTICA cameras feature a low-power sleep function, RS-232 cascade capability, and the ability to set up to 255 preset positions. Control over IP is straightforward via a web client, allowing for comprehensive parameter adjustments and camera operation.

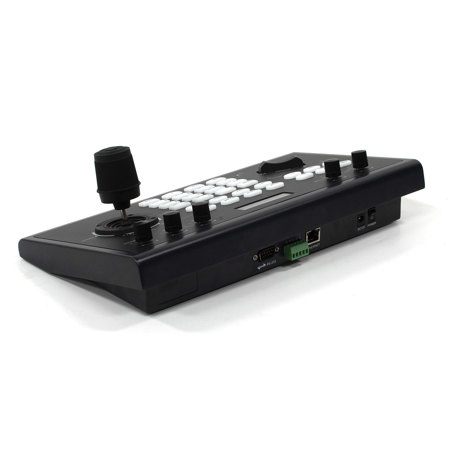

The OTTICA IP PTZ Camera Controller complements the cameras with its precise control over pan, tilt, and zoom functions. The high-quality joystick and customizable function buttons ensure smooth operation and quick access to camera settings. The controller's broad compatibility with various protocols and connection ports, including Ethernet, RS422, and RS232, makes it a versatile tool for managing your PTZ cameras.

Constructed with a durable metal housing and equipped with a clear industrial-grade LCD module, the controller is built to withstand the rigors of professional use. The included wall mount ensures a secure and stable setup for the OTTICA cameras, accommodating any camera with a standard 1/4"-20 thread.

Note that the OTTICA cameras come with NDI licensing included, eliminating the need for additional purchases to operate the NDI|HX features. While the OTTICA camera is not compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps, it works seamlessly with other video switchers, including the ATEM Mini and ATEM Mini Pro, making it a flexible choice for various production environments.

Ikan OTTICA NDI|HX Features

  • NDI|HX Compatibility with POE (Power Over Ethernet)
  • 1/2.8" CMOS Sensor/1080/60P Resolution/Frame Rate
  • Silent PTZ Motor Mechanism
  • 5.5-11mm Varifocal Lens with 20x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • NDI HX License INCLUDED with Purchase
  • Controller Supports ONVIF, VISCA, Serial Port VISCA, PELCOfD/P Protocols
  • Control up to 255 Cameras with RJ45, RS422, RS232 Interfaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera, perfect for live streaming events.
  • Control up to 255 PTZ cameras via IP with the included controller for seamless production.
  • Experience smooth, professional-grade video with the 20x optical zoom PTZ camera lens.
  • Enjoy versatile connectivity with HDMI, SDI, and NDI|HX outputs on this PTZ camera.
  • Easily manage camera settings with multiple control protocols like VISCA and Pelco-D/P.
  • Excellent low-light performance ensures clear video in any environment with this PTZ camera.

What's in the box:

  • 3x Ikan OTTICA PTZ Camera
  • 1x Ikan OTTICA IP PTZ Controller
  • 3x Camera Power Adapter
  • 3x Lens Cap
  • 3x Mounting Screws
  • 3x RS232 Cable
  • 3x IR Remote Controller
  • 3x Wall Mounting Bracket
  • 3x RS485 Connector
  • 3x Cascade Cable
  • 1x RS422 Connector
  • 1x Controller Power Adapter
  • Camera User Manual
  • Controller User Manual
  • Ikan 1 Year Limited Warranty
