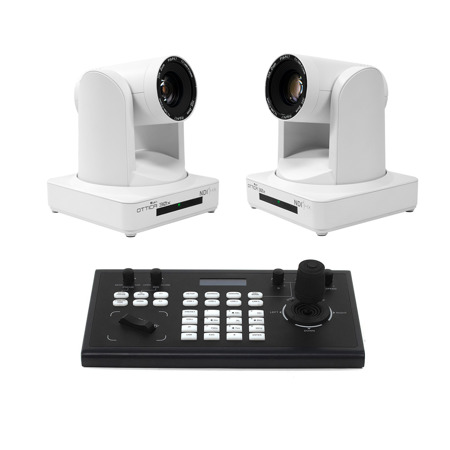

Ikan OTTICA Bundle with 2x Full HD NDI|HX 30x PTZ Video Camera and IP Controller, White

SKU: IAOTTICA3 MFR: OTTICA30W-2PTZ-1C
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera's stunning 1080p resolution.
  • Experience incredible detail with the 30x optical zoom, perfect for remote video production.
  • Seamlessly integrate with NDI|HX for broadcast-quality video over your IP network setup.
  • Control two PTZ cameras effortlessly with the included IP controller for multi-cam events.
  • Enjoy smooth pan, tilt, and zoom operations for professional live streaming and recording.
  • Excellent low-light performance ensures clear video, even in challenging lighting conditions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan OTTICA Specifications

PTZ Camera

PTZ Camera

Jump to...
  • Color

    White

  • AV

    F1.6 - F4.7

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    ON/OFF

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/-10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    30x f=4.3-129mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 -60 Degree /sec

  • Pan Rotation

    +/-170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / CONTROLLER: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/-10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60p

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1-30 Degree /sec

  • Tilt Rotation

    30 Degree -+90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    2.34 Degree -65.1 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Dimensions (W x H x D)

    5.9 x 5.9 x 6.6" (150 x 150 x 167.5mm)

  • Weight

    3.08 lbs (1.40kg)

PTZ Controller

Jump to...
  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF

  • Data Output Interface

    ONVIF, VISCA

  • Display

    LCD Blue Screen

  • Inputs

    RJ45, RS422, RS232

  • Interface

    RS422 5PIN, RS232, RJ45

  • Operating Temperature

    32 Degree F - 122 Degree F (0 Degree C - 50 Degree C)

  • Port Network

    RJ45

  • Power Consumption

    0.6 W Max

  • Power Supply

    DC12V +/-10%

  • Serial Port

    RS422, RS232

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 Degree C - 70 Degree C)

  • Dimensions

    12.5 x 7 x 4.3" (320 x 180 x 100mm)

  • UPC Code

    847983034611

About Ikan OTTICA

The OTTICA Bundle, featuring two Full HD NDI|HX 30x PTZ Video Cameras and an IP Controller, is a sophisticated solution for high-quality video production. This advanced bundle is perfect for a range of applications, including broadcasting, education, medical, sports, and live productions.

The OTTICA NDI|HX PTZ Video Cameras are equipped with a 1/2.8" CMOS sensor and a 4.3-129mm varifocal lens, delivering stunning 1080p resolution videos at 60fps. With a 30x optical zoom, these cameras offer exceptional flexibility in framing shots and capturing distant subjects. The cameras support a variety of connectivity options, including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in.

The OTTICA cameras utilize advanced ISP processing algorithms to produce vivid, high-resolution images with fantastic color rendition. They support H.265/H.264 encoding, ensuring smooth and clear motion video even under less than ideal bandwidth conditions. The use of NDI|HX technology significantly expands the camera's compatibility with different network options, making it a versatile choice for various settings.

The OTTICA IP PTZ Camera Controller, included in the bundle, offers precise control over a multitude of parameters. It is compatible with any PTZ cameras that use protocols including ONVIF, IP VISCA, Serial port VISCA, and PELCO-D/P. The controller features a high-quality joystick for smooth control of pan, tilt, and zoom, and allows for precise control over variable PTZ speed, red & blue gain, focus, iris, on-screen display, white balance, and more.

The OTTICA Bundle is designed for professional use, offering innovative features such as low noise CMOS for high SNR, advanced 2D/3D noise reduction technology, and a high accuracy step-driving motor mechanism for quiet PTZ operation. With the ability to program up to 255 preset camera positions and control the camera over IP through a web client, this bundle provides a comprehensive solution for all your video production needs.

Built with a metal housing and firm silicone buttons, the OTTICA IP PTZ Camera Controller is robust and durable. Its industrial-grade LCD module displays fine and clear characters, ensuring ease of use. The OTTICA Bundle is a high-quality, professional choice for those seeking advanced, innovative, and sophisticated video production equipment.

Ikan OTTICA Features

  • Includes 2 30x PTZ Cameras with an OTTICA IP Controller
  • NDI|HX2 Compatibility with PoE (Power Over Ethernet)
  • NDI|HX License Included
  • 1/2.8" CMOS Sensor
  • 1080/60P Resolution/Frame Rate
  • Fast, Stable, & Accurate Auto-focus
  • Silent PTZ Motor Mechanism
  • 4.3-129mm Varifocal Lens with 30x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • Controller Supports ONVIF, VISCA, Serial Port VISCA, PELCOfD/P Protocols
  • Control up to 255 Cameras with RJ45, RS422, RS232 Interfaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera's stunning 1080p resolution.
  • Experience incredible detail with the 30x optical zoom, perfect for remote video production.
  • Seamlessly integrate with NDI|HX for broadcast-quality video over your IP network setup.
  • Control two PTZ cameras effortlessly with the included IP controller for multi-cam events.
  • Enjoy smooth pan, tilt, and zoom operations for professional live streaming and recording.
  • Excellent low-light performance ensures clear video, even in challenging lighting conditions.

What's in the box:

  • 2x Ikan OTTICA Full HD NDI|HX 30x PTZ Video Camera with PoE (White)
  • IP PTZ Camera Controller
  • 2x Lens Cap
  • 2x Power Adapter for Camera
  • 2x RS232 Cable
  • 2x IR Remote Controller
  • 2x Wall Mounting Bracket
  • Mounting Screws
  • 2x RS485 Connector
  • 2x Cascade Cable
  • Power Adapter for Controller
  • RS422 Connector
  • User Manual
  • Ikan 1 Year Limited Warranty
