Ikan OTTICA Bundle with 3x Full HD NDI|HX 30x PTZ Video Camera and IP Controller, White

SKU: IAOTTICA4 MFR: OTTICA30W-3PTZ-1C
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera, perfect for streaming and recording.
  • Experience smooth, precise control with the included IP PTZ Camera Controller for easy operation.
  • Use the 30x optical zoom to get close-up shots with incredible detail, ideal for live events.
  • Enjoy versatile connectivity with NDI|HX, HDMI, and SDI outputs on this PTZ video camera.
  • Easily integrate these PTZ cameras into your existing setup with PoE for simplified power.
  • Create professional multi-camera productions with this PTZ camera bundle, ready for any event.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan OTTICA Specifications

PTZ Camera

PTZ Camera

Jump to...
  • Color

    White

  • AV

    F1.6 - F4.7

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    ON/OFF

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/-10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    30x f=4.3-129mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 -60 Degree /sec

  • Pan Rotation

    +/-170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / CONTROLLER: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/-10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60p

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1-30 Degree /sec

  • Tilt Rotation

    30 Degree -+90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    2.34 Degree -65.1 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Dimensions (W x H x D)

    5.9 x 5.9 x 6.6" (150 x 150 x 167.5mm)

  • Weight

    3.08 lbs (1.40kg)

PTZ Controller

Jump to...
  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF

  • Data Output Interface

    ONVIF, VISCA

  • Display

    LCD Blue Screen

  • Inputs

    RJ45, RS422, RS232

  • Interface

    RS422 5PIN, RS232, RJ45

  • Operating Temperature

    32 Degree F - 122 Degree F (0 Degree C - 50 Degree C)

  • Port Network

    RJ45

  • Power Consumption

    0.6 W Max

  • Power Supply

    DC12V +/-10%

  • Serial Port

    RS422, RS232

  • Storage Temperature

    -4 Degree F - 158 Degree F (-20 Degree C - 70 Degree C)

  • Dimensions

    12.5 x 7 x 4.3" (320 x 180 x 100mm)

  • UPC Code

    847983034628

About Ikan OTTICA

From professional broadcasting to live production applications, the OTTICA Bundle with 3x Full HD NDI|HX 30x PTZ Video Camera and IP Controller is your ultimate solution. This comprehensive bundle includes three OTTICA NDI|HX 30x PTZ Video Cameras and the OTTICA IP PTZ Camera Controller, providing a robust platform for multi-camera video production and streaming.

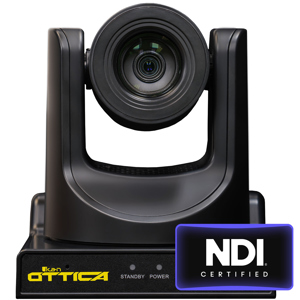

The OTTICA 30x PTZ Video Camera, powered by Ikan, boasts a 1/2.8" CMOS sensor and a 4.3-129mm varifocal lens with 30x zoom. This combination allows for capturing high-definition videos at a maximum resolution of 1080p at 60fps. The camera supports a wide range of connectivity options including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in.

With its step drive motor mechanism and motor drive controller, the OTTICA camera ensures smooth and noiseless PTZ operation. It supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats, providing high-quality video and audio output.

The OTTICA camera's advanced ISP processing algorithms deliver vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding, ensuring fluent and clear motion video even under less than ideal bandwidth conditions.

The camera employs a 1/2.8 inch high-quality CMOS sensor and supports resolutions up to 1920 x1080 with frame rates up to 60 fps. It includes a 4.3-129mm f/1.6-3.5 varifocal lens with a viewing angle ranging from 2.34 Degree (tele) to 65.1 Degree (wide) and offers 30x optical zoom.

The OTTICA camera also features an autofocus algorithm for fast, accurate, and stable lens focusing. Its advanced 2D/3D noise reduction technology further reduces noise while ensuring image sharpness.

The OTTICA IP PTZ Camera Controller is fully compatible with any PTZ cameras that use protocols including ONVIF, IP VISCA, Serial port VISCA, PELCO-D/P protocols. It features a high-quality joystick for smooth control of pan, tilt, and zoom, and allows for precise control over various PTZ speed, red & blue gain, focus, iris, on-screen display, white balance, fast camera switching, quick-set camera parameters & presets, and many other features.

Built from metal with firm silicone buttons, the controller's housing is sturdy and durable. Its industrial-grade LCD module displays fine and clear characters, enhancing user experience.

This OTTICA bundle is designed for a wide range of applications including house of worship, broadcast, education, medical, sports, and live production. It provides a comprehensive, high-quality, and reliable solution for multi-camera video production and streaming.

Ikan OTTICA Features

  • Includes 2 30x PTZ Cameras with an OTTICA IP Controller
  • NDI|HX2 Compatibility with PoE (Power Over Ethernet)
  • NDI|HX License Included
  • 1/2.8" CMOS Sensor
  • 1080/60P Resolution/Frame Rate
  • Fast, Stable, & Accurate Auto-focus
  • Silent PTZ Motor Mechanism
  • 4.3-129mm Varifocal Lens with 30x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • Controller Supports ONVIF, VISCA, Serial Port VISCA, PELCOfD/P Protocols
  • Control up to 255 Cameras with RJ45, RS422, RS232 Interfaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crystal-clear video with the Full HD PTZ camera, perfect for streaming and recording.
  • Experience smooth, precise control with the included IP PTZ Camera Controller for easy operation.
  • Use the 30x optical zoom to get close-up shots with incredible detail, ideal for live events.
  • Enjoy versatile connectivity with NDI|HX, HDMI, and SDI outputs on this PTZ video camera.
  • Easily integrate these PTZ cameras into your existing setup with PoE for simplified power.
  • Create professional multi-camera productions with this PTZ camera bundle, ready for any event.

What's in the box:

  • 3x Ikan OTTICA Full HD NDI|HX 30x PTZ Video Camera with PoE (White)
  • IP PTZ Camera Controller
  • 3x Lens Cap
  • 3x Power Adapter for Camera
  • 3x RS232 Cable
  • 3x IR Remote Controller
  • 3x Wall Mounting Bracket
  • Mounting Screws
  • 3x RS485 Connector
  • 3x Cascade Cable
  • Power Adapter for Controller
  • RS422 Connector
  • User Manual
  • Ikan 1 Year Limited Warranty
