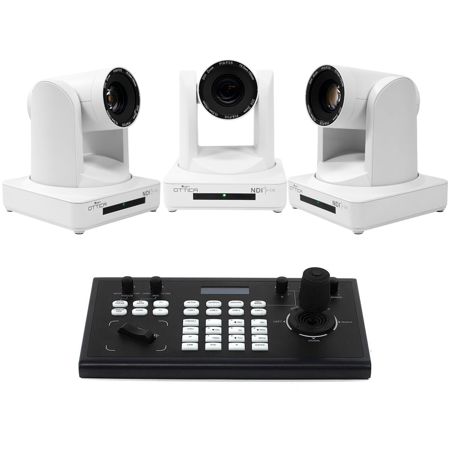

Ikan OTTICA Bundle with 3x Full HD NDI|HX 20x PTZ Video Camera and IP Controller, White

SKU: IAOTTICAWH3P MFR: OTTICA-WH-3PTZ-1C
Earn VIP Reward Points

Key Features

  • Capture stunning, detailed video with the Ikan PTZ camera's 20x optical zoom.
  • Enjoy seamless integration with NDI|HX for live streaming and broadcast workflows.
  • Remotely control pan, tilt, and zoom functions for dynamic video production setups.
  • Achieve broadcast-quality video with Full HD 1080p resolution at 60 frames per second.
  • Simplify setup with PoE (Power over Ethernet) for single cable connectivity solutions.
  • Manage multiple cameras easily with the included IP PTZ Camera Controller.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan OTTICA Specifications

PTZ Camera

PTZ Camera

Jump to...
  • Color

    White

  • AV

    F1.6 - F3.5

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    ON/OFF

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Focusing

    Input Audio Format

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/-10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    20x f=5.5-110mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 -60 Degree /sec

  • Pan Rotation

    +/-170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / CONTROLLER: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/-10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60fp

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1-30 Degree /sec

  • Tilt Rotation

    30 Degree -+90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    3.3 Degree -54.7 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity:

    20%-80%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Dimensions (W x H x D)

    5.9 x 6.6 x 5.9" (150 x 167.5 x 150mm)

  • Weight

    3.08 lbs (1.40kg)

PTZ Controller

Jump to...
  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF

  • Data Output Interface

    ONVIF, VISCA

  • Display

    LCD Blue Screen

  • Inputs

    RJ45, RS422, RS232

  • Interface

    RS422 5PIN, RS232, RJ45

  • Operating Temperature

    32 Degree F - 122 Degree F (0 Degree C - 50 Degree C)

  • Port Network

    RJ45

  • Power Consumption

    0.6 W Max

  • Power Supply

    DC12V +/-10%

  • Serial Port

    RS422, RS232

  • Storage Temperature

    -4 Degree F-158 Degree F (-20 Degree C - 70 Degree C)

  • Dimensions

    12.5 x 7 x 4.3" (320 x 180 x 100mm)

  • UPC Code

    847983034321

About Ikan OTTICA

Just imagine the possibilities with the OTTICA Bundle, featuring three advanced Full HD NDI|HX 20x PTZ Video Cameras and an innovative IP Controller. This sophisticated bundle is designed to elevate your video production capabilities, offering a comprehensive solution for multi-camera streaming setups.

The OTTICA NDI|HX PTZ Video Cameras are equipped with a high-quality 1/2.8" CMOS sensor and a versatile 5.5-110mm varifocal lens, delivering stunning 1080p resolution videos at a smooth 60fps. With 20x optical zoom, these cameras capture every detail, making them perfect for a variety of applications, from broadcasting and education to sports and live production.

Connectivity is a breeze with support for POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in. The cameras utilize a step drive motor mechanism and motor drive controller, ensuring smooth and noiseless PTZ operation. They also support H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats, providing high-quality streaming even under less than ideal bandwidth conditions.

The OTTICA IP PTZ Camera Controller included in the bundle offers seamless control over multiple cameras, making it an ideal solution for complex video production setups. With support for multiple control protocols including VISCA, IP VISCA, PELCO-D, PELCO-P, and ONVIF, this controller is highly compatible and easy to integrate into your existing setup.

The OTTICA Bundle is more than just a set of cameras and a controller. It's a comprehensive solution for professional video production, offering high-quality imaging, advanced features, and easy-to-use controls. Whether you're streaming a live event, conducting a video conference, or producing a broadcast, the OTTICA Bundle delivers the performance and flexibility you need to capture every moment in stunning detail.

Ikan OTTICA Features

  • Bundle Includes 3x NDI|HX PTZ Cameras & 1 PTZ Controller
  • NDI|HX2 Compatibility with POE (Power Over Ethernet)
  • 1/2.8" CMOS Sensor/1080/60P Resolution/Frame Rate
  • Silent PTZ Motor Mechanism
  • 5.5-110mm Varifocal Lens with 20x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • NDI|HX License Included with Purchase
  • Controller Supports ONVIF, VISCA, Serial Port VISCA, PELCOfD/P Protocols
  • Control up to 255 Cameras with RJ45, RS422, RS232 Interfaces

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning, detailed video with the Ikan PTZ camera's 20x optical zoom.
  • Enjoy seamless integration with NDI|HX for live streaming and broadcast workflows.
  • Remotely control pan, tilt, and zoom functions for dynamic video production setups.
  • Achieve broadcast-quality video with Full HD 1080p resolution at 60 frames per second.
  • Simplify setup with PoE (Power over Ethernet) for single cable connectivity solutions.
  • Manage multiple cameras easily with the included IP PTZ Camera Controller.

What's in the box:

  • 3x Ikan OTTICA Full HD NDI|HX 20x PTZ Video Camera with PoE (White)
  • IP PTZ Camera Controller
  • 3x Lens Cap
  • 3x Power Adapter for Camera
  • 3x RS232 Cable
  • 3x IR Remote Controller
  • 3x Wall Mounting Bracket
  • Mounting Screws
  • 3x RS485 Connector
  • 3x Cascade Cable
  • Power Adapter for Controller
  • RS422 Connector
  • User Manual
  • Ikan 1 Year Limited Warranty
