Ikan PD Movie PD4-S1-STUDIO Remote Air Pro 3 Single-Channel Wired Follow Focus System

SKU: IAPD4S1STD

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ikan PD4-S1-STUDIO Specifications

  • Drive Gear

    Module: 0.8 Teeth: 40

  • Noise Db

    < 28Db

  • Torque

    Motor: 0.5 Nm
    Motor Pro 1.2 Nm

  • Voltage

    7-20V

  • Battery Info

    Required, included

  • Battery Material

    Lithium-Ion

  • Battery Type

    -

  • Battery Quantity

    3

  • Dimensions

    Controller: 3.15 x 3.15 x 1.77" (8 x 8 x 4.5cm)
    Motor: 4.25 x 1.89 x 0.91" (10.8 x 4.8 x 2.3cm)

  • Weight

    Controller: 9.24 oz (262g)
    Motor: 6.93 oz (196.5g)

  • UPC Code

    847983033072

About Ikan PD4-S1-STUDIO

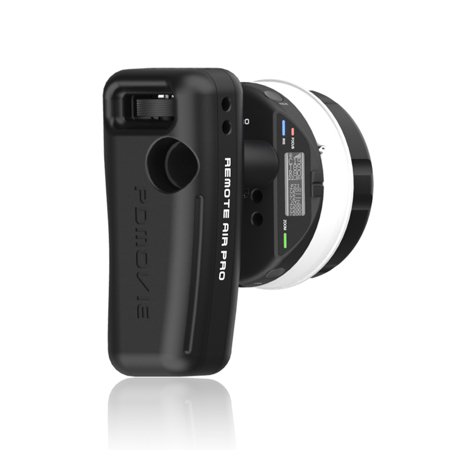

Remote Air Pro 3

Three-Channel Controller
The Remote Air Pro 3 controller now includes a 75mm focus wheel as well as zoom and iris rockers built into the same controller. The PD4-S1-STUDIO system is a single-channel system and can be upgraded to a two or three-channel system by adding additional PD-MX motors. The included controller (PD4-HT) has the ability to control three motors simultaneously with a single camera setup and up to six motors with a dual-camera 3D setup (additional motors available separately).

Unlimited Mounting Options
The Remote Air Pro 3 allows for unlimited mounting options by utilizing a detachable 19mm rod. Once the 19mm rod is inserted, the controller can be mounted to the standard Remote Air Pro 3 rubber handle. The controller also features four 1/4 screw threads so it can be easily attached to an articulating arm or clamp system. The included clamp allows you to mount the controller directly to you tripod handle and provides you with easy access to your lens' focus settings.

Quick Battery Replacement
The controller uses a replaceable 600mAh battery, supports hot plug, and features a battery-life of 12 hours.

Click, Press All-In-One Button
The Remote Air Pro 3 includes an all-in-one multifunction button. By clicking or pressing different times, you can quickly set the signal channel, control channel, motor speed and remote recording.

Note: Remote recording supports RED DSMC2, ARRI Alexa Mini/Mini LF, Lanc 2.5mm protocol.

Versatile Handle
The Remote Air Pro 3 includes a completely reimagined handle. You can now mount and unmount the hand controller with ease. The handle includes nine 1/4 mounting threads which allows you to mount accessories such as a mobile device, monitor, wireless receiver, and lanyard. Using the handle with a monitor makes focus pulling easier since the center of gravity is on top of the handle instead of the side. The handle is made of high-strength aluminum alloy and durable rubber.

Upgradable to Wireless
The Remote Air Pro 3 system is compatible with PD Movie's wireless PD-RX motors. Simply add a wireless motor to your setup to access a fully wireless lens control system. Once a wireless motor is added to your setup, you will have a two-channel wireless system that can control the focus, and zoom simultaneously from the same controller.

Ikan PD4-S1-STUDIO Features

  • Single-channel wired lens control system
  • Includes one controller and one motor
  • Removable Li-40/42B battery offers up to 15 hours standby mode and 10 hours consistent use
  • Controller can control up to three motors (additional motors available separately)
  • System can be upgraded to a two or three-channel wired system or wireless system
  • Motor is powered via AC Adapter

Key Features

  • Single-channel wired lens control system
  • Includes one controller and one motor
  • Removable Li-40/42B battery offers up to 15 hours standby mode and 10 hours consistent use
  • Controller can control up to three motors (additional motors available separately)
  • System can be upgraded to a two or three-channel wired system or wireless system
  • Motor is powered via AC Adapter

What's in the box:

  • Controller (PD4-HT)
  • Receiver Motor (PD-RX)
  • 3x Li42B Battery (3.7V 600mAh 2.2Wh)
  • Li42B Battery Charger
  • D-Tap Power Cable 0.7m (6-Pin)
  • USB Charging Cable 0.9m (6-Pin)
  • Micro USB Charging Cable
  • 15mm/19mm Adapter Ring
  • 4x Glow in the Dark Marking Disk
  • Short Antenna
  • Long Antenna
  • Connector
  • 4x 1/4 Screws
  • 2x Hex Spanners
  • Safety Box
  • Lanyard
  • Ikan 1 Year Limited Warranty
