Ikan LIVE PRO Specifications

  • Channel

    Single-Channel

  • Gearing

    Module: 0.8 teeth: 40
    Module: 0.6 teeth: 60
    Module: 0.5 teeth: 72
    Module: 0.4 teeth: 90

  • Noise Db

    < 28 Db

  • Torque

    Max 0.8Nm

  • Voltage

    7-20V

  • UPC Code

    847983027682

About Ikan LIVE PRO

LIVE PRO
Bigger and Better

The latest update to the PD MOVIE LIVE family, the LIVE PRO uses meticulous design to bring you the lightest and most efficiently constructed wired follow focus system on the market. Torque, strength, and precision have all been fine-tuned to give you the most intuitive focus control possible.

Focus
The PDL-TC- PF single-channel controller has two allows the user to precisely adjust focus with ease. It can be easily installed on the diameter of a 15mm-30mm tripod handle.

Luminous Marker Ring
LIVE PRO comes with a glow-in-the-dark marker ring which easily allows you to tag lens data when used with a single-channel controller. The fluorescence marker ring can be clearly seen when used in environments with poor light conditions.

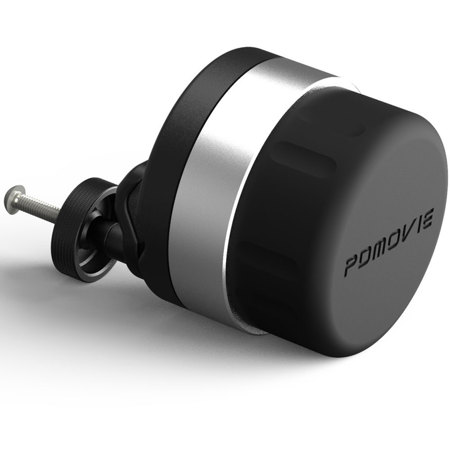

Smaller & Stronger
The new motor included with the LIVE PRO continues the previous simple design style. The motor is thinner, lighter, twice as fast as the previous generation The motor's maximum instantaneous power is 0.8 Nm, equivalent to 70 watts of electrical power.

Brushless Motor
LIVE PRO is equipped with a powerful, high-precision brushless motor, a powerful driving force, and smoothness, allowing it to quickly and smoothly control various large damping lenses.

Stable Data Transmission
The LIVE PRO can be used in a harsh environment, such as severe shaking, extreme cold, and heat, long term wear and tear, the self-locking pin plug provides safety and reliability. It can keep the performance of the product in a stable state for extended periods of time.

Ikan LIVE PRO Features

  • Professional solution for controlling the lens' focus, iris and zoom
  • Handwheel and dual-channel controller easily mount to a tripod handle
  • Brings control of your lens focus, iris, and zoom right to your fingertips
  • Automatically calibrates to the mapping of your lens
  • Simple, single button per channel control system
  • Single focus and zoom unit can control multiple motors simultaneously
  • Compact yet powerful motors can handle both subtle and rapid lens adjustments with ease
  • Precision motors attach to both 15 and 19mm rods (with included sleeves installed)
  • Remote control attaches to most square/round handles less than 1" in diameter
  • 0.8 pitch gearing is compatible with most common cinema lenses

Key Features

  • Professional solution for controlling the lens' focus, iris and zoom
  • Handwheel and dual-channel controller easily mount to a tripod handle
  • Brings control of your lens focus, iris, and zoom right to your fingertips
  • Automatically calibrates to the mapping of your lens
  • Simple, single button per channel control system
  • Single focus and zoom unit can control multiple motors simultaneously

What's in the box:

  • Motor Air/Slave Motor PD-MX
  • Single-Channel Focus Controller
  • 39.4 " 6-Pin Slave Motor Cable
  • 27.6 " D-Tap Power Cable
  • 15-19mm Rod Adapter Ring
  • 2x Luminous Marking Disk
  • iKan 1 Year Limited Warranty
