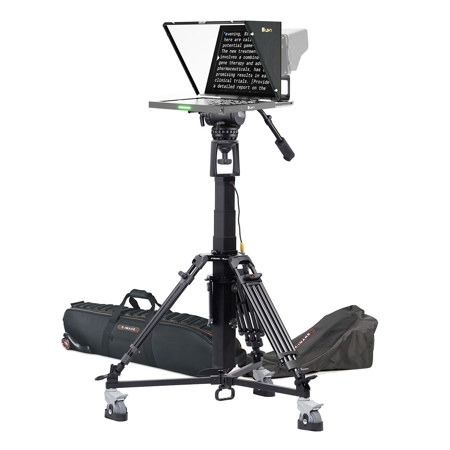

Ikan 19" SDI High-Bright Teleprompter Kit with Motorized Pedestal and Dolly Turnkey

Broadcast Turnkey Solutions
Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" 4:3 teleprompter, motorized pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 38.2 lbs. This solution also includes carrying bags for the Pedestal & Dolly.

- PT419 Teleprompter -
Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor features SDI, HDMI, Composite, and VGA video inputs. Its High-Bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

Proprietary Glass and Coating Formula
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through. This unique characteristic enables the presenter to read the reflected script text clearly, projected from a monitor below or behind the glass, while simultaneously allowing the camera positioned directly behind the glass to record through it without capturing the reflected text.

Large Range of Camera Compatibility
Our professional line of teleprompters include three different camera mount bases, making it compatible with a wide variety of cameras such as professional ENG cameras, cinema cameras, mirrorless cameras, and camcorders.

Height of Riser Plates:
• Large - 135mm/5.31 inches
• Short - 52.5mm/2.06 inches
• DLSR - 160mm/6.29 inches

Versatile Teleprompter Monitor
The 19-inch monitor features SDI, HDMI, Composite, and VGA inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. The wide viewing angles make it easy to view, even when you are not directly in front of the system.

Image Flip Button
The teleprompter monitor feature an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are video conferencing since it enables the presenter to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

High-Bright Screen
The 1000 nit High-Bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor.

Aluminum Chassis
The custom aluminum housing is robust and will protect the monitor from the rigors of production. The monitor features bezel-mounted buttons making it easy to navigate menu functions or change your input source.

Built-in Tally Light for On Air Status
The prompter monitor features a tally light that illuminates red and green. A green tally light is typically used to indicate that a camera is in preview mode. This means that the camera's output is being sent to a monitor, but it is not currently on air. This allows the talent, director, and production crew to check the composition, focus, and other aspects of the shot before it goes live. A red tally light is used to indicate when a camera is live or on-air.

Easy to Balance
The 19-inch Teleprompter includes a rail that allows you to easily balance your entire teleprompter setup so that you don't need a counter weight. The teleprompter can be offset along the sled

Ultra-Secure Hood
The hood of the teleprompter is anchored to the frame with bolts and additionally secured with magnets for extra stability.

Compatible with Bigger Lenses
The teleprompter hood for the PT419 features a much wider opening allowing some of the biggest lenses available to be used.

Note: An additional dovetail and rod system will be required for use with broadcast box lenses

Ships in Reusable Foam
The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam fits perfectly fit in the optional Ikan PT-CASE-4U rolling hard case (Sold Separately)

- M-GH25-PEDESTAL Pedestal System -
The M-GH25-PEDESTAL is designed for traditional camera setups, offering smooth motorized height adjustments and supporting up to 55 lbs of equipment for stable operation. It includes a wired remote control capable of adjusting the column's height using up & down buttons and preset height settings. With its robust design and flexible functionality, it ensures a solid and precise platform for various shooting scenarios. This pedestal system includes a hard case with padded foam and wheels.

Smooth Motorized Elevation | Remote-Control Convenience
At the core of the M-GH25-PEDESTAL is a motorized elevation system that enables effortless height adjustments with just a button press. Operated through a wired remote controller, users can fine-tune the height in real-time, ensuring accurate adjustments during shoots. The ease of use provided by the remote ensures that the operator can focus on capturing the perfect shot without the need for manual interference.

High Payload Capacity | Maximum Stability
With a payload capacity of 55 lbs, the M-GH25-PEDESTAL can securely support a variety of camera systems and accessories, including Ikan's largest & heaviest teleprompter systems. The system is designed to handle a wide range of traditional cameras and related gear, ensuring both flexibility and durability in demanding environments.

Extended Working Height
The M-GH25-PEDESTAL allows users to shoot at elevated angles with its maximum working height of up to 8.5 feet. Its column can be adjusted smoothly, with a stroke of 23.6 inches, making it suitable for dynamic movements or static high-angle shots, expanding the creative possibilities for any video production.

Controller Clamp
The height adjustment controller can be mounted directly onto the panhandle thanks to an included clamp. This makes height adjustment in-between shots or while filming much more convenient. Videographers can perform vertical parallax camera movements thanks to the smooth motion of the motorized column and convenient placement of the height controller.

Quick Positioning with Preset Height Positions
Efficiency is further enhanced by the system's ability to store and recall three preset height positions. This feature enables quick switching between frequently used elevations, saving valuable time during shoots that require repetitive positioning. The intuitive wired remote controller makes it easy to program and select these presets, ensuring consistent framing and composition across different takes.

Drag/Counterbalance
The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening. The Drag & Counterbalance combined are a crucial feature in video camera tripods, enhancing stability and facilitating smooth camera movements.

Slide Range
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range. By allowing horizontal adjustments of the camera position on the tripod plate, this feature enables precise counterbalancing. Videographers can fine-tune the distribution of weight to achieve equilibrium, ensuring that the counterbalance system effectively stabilizes the camera setup, especially when using heavy lenses or accessories.

Pan & Tilt Locks
The fluid head features individual locks for both the pan and tilt. These locks allow videographers to fix the horizontal panning and vertical tilting axes, ensuring stability and eliminating unintended shifts in framing.

Dual Panhandles
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24".

- GH25 Fluid Head -
The GH25 head is designed and built for professional videographers and cinematographers who want real quality at an affordable price. The professional fluid tripod head delivers field-tested reliability, solid construction, and all the features required for professional performance.

- EI-7004B Dolly -
The Medium Tripod Dolly with Cable Guards allows for quick and smooth movement for tripods weighing up to 132 lbs. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. It's designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.
