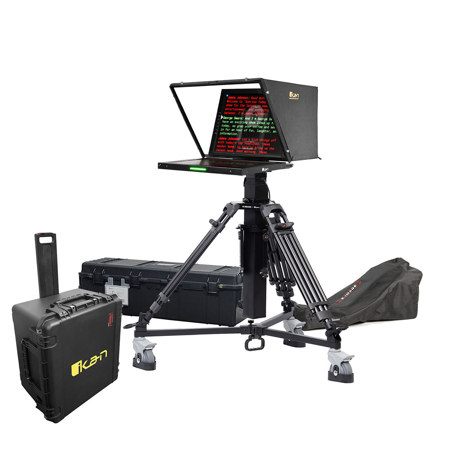

Ikan 19" SDI High-Bright PTZ Teleprompter Kit with Motorized Pedestal, Dolly Turnkey and Travel Case

Broadcast Turnkey Solutions
Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" 4:3 PTZ teleprompter, motorized pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 38.2 lbs. This solution also includes hard rolling cases for the teleprompter & pedestal and a carrying bag for the dolly.

- PT419-PTZ-TK Teleprompter with Case -
Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, Composite and VGA video inputs. Its High-Bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

PTZ Teleprompting
The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

Fully Enclosed PTZ Hood
The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows it's movement to remain unconstrained. The hood includes an opening in the back that gives you quick access to the PTZ cameras inputs and outputs. The opening can be closed with a drawstring which removes the possibility of any light leaks.

High-Bright Teleprompter Monitor
The 1000 nit High-Bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The monitor features SDI, HDMI, Composite and VGA inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly.

Easy-to-balance
The PT419-PTZ-TK includes a long rail which allows you to easily balance your entire teleprompter setup. The teleprompter base can be easily moved forwards and backwards until the perfect balance is set.

Large Range of Camera Compatibility
Our PTZ Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Ultra-Secure Hood
The hood of the PTZ teleprompter is anchored to the frame with bolts and additionally secured with magnets for extra stability.

Proprietary Glass and Coating Formula
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through. This unique characteristic enables the presenter to read the reflected script text clearly, projected from a monitor below or behind the glass, while simultaneously allowing the camera positioned directly behind the glass to record through it without capturing the reflected text.

Image Flip Button
The monitor features an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are video conferencing since it enables the presenter to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

Aluminum Chassis
The custom aluminum housing is robust and will protect the monitor from the rigors of production. The monitor features bezel-mounted buttons making it easy to navigate menu functions or change your input source.

Built-in Tally Light for On Air Status
The prompter monitor features a tally light that illuminates red and green. A green tally light is typically used to indicate that a camera is in preview mode. This means that the camera's output is being sent to a monitor, but it is not currently on air. This allows the talent, director, and production crew to check the composition, focus, and other aspects of the shot before it goes live. A red tally light is used to indicate when a camera is live or on-air.

Rolling Hard Case
The rolling hard case is designed to accommodate the full teleprompter system including the teleprompter base, risers, hoods, glass, monitors, and power supplies. The Injection Molded Mil-Standard Waterproof Case is crafted from ultra high-strength polypropylene copolymer resin. This case includes a gasket-sealed, water and dust tight design, ensuring it is submersible and complies with MIL-STD 810H standards. It is designed to withstand corrosion and impact damage.

- M-PTZ-PEDESTAL-TK Pedestal System -
The M-PTZ-PEDESTAL-TK Motorized Elevation System is designed for PTZ cameras and PTZ teleprompters, offering smooth, motorized height adjustments and supporting up to 66 lbs of equipment for stable operation. It includes a wired remote controller capable of controlling the column using an up & down arrow button, or with quick preset position buttons.

With the 2-stage legs and center column fully extended, you can shoot video at heights up to 9.1 ft. Whether using this pedestal for corporate AV offices, studio broadcast, or capturing a live performance, the M-PTZ-PEDESTAL-TK offers the flexibility and performance to meet and exceed expectations. This pedestal system includes a padded foam hard case with wheels.

Smooth Motorized Elevation | Remote-Control Convenience
At the heart of the M-PTZ-PEDESTAL-TK is its smooth motorized elevation system, which allows effortless height adjustments with the simple push of a button. Operated via a wired remote controller equipped with a clear display screen, users can monitor and adjust elevation settings accurately in real-time. The remote-control convenience not only streamlines the shooting process but also minimizes physical input, enabling operators to focus on capturing the perfect shot without manual interference.

High Payload Capacity | Maximum Stability
With a payload capacity of 66lbs, not only can you mount a PTZ camera and accessories, but also Ikan's PTZ teleprompters. The robust construction guarantees that the equipment remains secure, providing peace of mind during critical shooting moments.

Extended Working Height
With a maximum working height of 9.2 feet when used with a dolly, the M-PTZ-PEDESTAL-TK allows operators to capture unique shooting angles that add depth to the footage. After adjusting the height of the legs by-hand, the pedestal system features a motorized stroke of 23.6 inches, offering significant vertical movement to adapt to various shooting requirements, from low-angle shots to elevated viewpoints. The motorized column operates so smoothly that it can be used to create vertical camera movements suitable for live broadcasts.

Quick Positioning with Preset Height Positions
Efficiency is further enhanced by the system's ability to store and recall three preset height positions. This feature enables quick switching between frequently used elevations, saving valuable time during shoots that require repetitive positioning. The intuitive wired remote controller makes it easy to program and select these presets, ensuring consistent framing and composition across different takes.

Mono-Lock Mechanism
To speed up the setup process, the Mono-Lock feature simplifies height adjustments by allowing both tripod legs to be adjusted simultaneously with a single twist.

Quick-Release Adapter
This QR Adapter allows for quick and secure attachment of cameras. This quick-release mechanism enhances efficiency, particularly when swapping cameras or adjusting configurations on the fly.

Accessory Integration
The system includes standard 1/4" and 3/8" screw holes, providing the flexibility to attach various accessories such as monitors, microphones, or lights directly to the tripod. This integration reduces the need for additional stands and streamlines the overall equipment setup.

Enhanced Stability with Quick-Release Middle Spreader
M-PTZ-PEDESTAL-TK provides stability with its quick-release middle spreader. This adjustable spreader enhances the tripod's rigidity, reducing vibrations and providing a solid foundation for the camera setup. The design allows for quick adjustments, enabling operators to set up and break down the system efficiently.

- EI-7004B Dolly -
The Medium Tripod Dolly with Cable Guards allows for quick and smooth movement for tripods weighing up to 132 lbs. It is equipped with individually braked 4" wheels with cable guards and folds for easy transporting. It's designed for use with all E-Image tripod legs that feature dual spiked feet. It supports up to 132 pounds and is ideal for moving tripods along a flat surface for quick re-positioning between shots and is designed to help you move heavy tripods from one camera position to the next.
