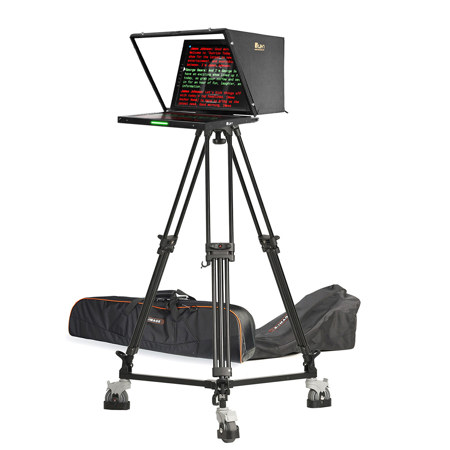

Ikan 19" SDI High-Bright PTZ Teleprompter Kit with Tripod & Dolly Turnkey

Broadcast Turnkey Solutions
Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" 4:3 PTZ teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 96.3 lbs. This solution also includes carrying bags for the tripod & dolly.

- PT419-PTZ Teleprompter -
Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, Composite and VGA video inputs. Its High-Bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

PTZ Teleprompting
The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

Fully Enclosed PTZ Hood
The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows it's movement to remain unconstrained. The hood includes an opening in the back that gives you quick access to the PTZ cameras inputs and outputs. The opening can be closed with a drawstring which removes the possibility of any light leaks.

High-Bright Teleprompter Monitor
The 1000 nit High-Bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The monitor features SDI, HDMI, Composite and VGA inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly.

Easy-to-balance
The PT419-PTZ includes a long rail which allows you to easily balance your entire teleprompter setup. The teleprompter base can be easily moved forwards and backwards until the perfect balance is set.

Large Range of Camera Compatibility
Our PTZ Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Ultra-Secure Hood
The hood of the PTZ teleprompter is anchored to the frame with bolts and additionally secured with magnets for extra stability.

Proprietary Glass and Coating Formula
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through. This unique characteristic enables the presenter to read the reflected script text clearly, projected from a monitor below or behind the glass, while simultaneously allowing the camera positioned directly behind the glass to record through it without capturing the reflected text.

Image Flip Button
The monitor features an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are video conferencing since it enables the presenter to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

Aluminum Chassis
The custom aluminum housing is robust and will protect the monitor from the rigors of production. The monitor features bezel-mounted buttons making it easy to navigate menu functions or change your input source.

Built-in Tally Light for On Air Status
The prompter monitor features a tally light that illuminates red and green. A green tally light is typically used to indicate that a camera is in preview mode. This means that the camera's output is being sent to a monitor, but it is not currently on air. This allows the talent, director, and production crew to check the composition, focus, and other aspects of the shot before it goes live. A red tally light is used to indicate when a camera is live or on-air.

Ships in Reusable Foam
The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam fits perfectly fit in the optional Ikan PT-CASE-4U rolling hard case

Features
• PTZ Hood Fully Encloses Camera Allowing it to Move Freely
• Compatible with Most PTZ Cameras
• Prompter Monitor features SDI, HDMI, Composite & VGA Inputs
• 1000-Nit High-Bright Monitor
• Prompter Monitor Features Red and Green Tally Lights
• High-Quality American Made 65/35 Beam Splitter Glass
• Screen Readable from up to 25'
• Multiple Camera Mounting Options
• Easy Balancing with Adjustable Base
• Lightweight and Compact Design
• Ships in Reusable Foam for Easy Transport
• Monitor Supports Image Flip
• PrompterPro Software for MAC & PC is FREE with this Teleprompter

- GA102D-PTZ Tripod -
Secure your PTZ Teleprompter or Robotic PTZ Head onto the GA102D-PTZ Tripod System's 100mm Flat Base. This tripod kit provides different mounting options for PTZ solutions including a PTZ camera, pan-tilt head, or a full PTZ teleprompter. With this studio version, you can transport your PTZ camera around the set or studio smoothly and quickly with the included EI-7003B dolly with cable guards.

Various PTZ Solutions
The GA102D-PTZ Tripod System is a versatile mounting solution tailored for PTZ equipment. Whether you're utilizing a PTZ camera, a robotic pan-tilt head, or a full PTZ teleprompter, this tripod system offers a 100mm flat base with a 3/8" - 20 mounting screw, ensuring secure and stable attachment of your equipment.

Heavy-Duty Tripod
The GA102 tiered video tripod legs are made of aluminum and can hold 132 lbs. The GA102 is topped off with a 100mm bowl for quickly adjusting the payload horizontally and/or vertically.

Mono-Lock
The heavy-duty tripod is made of aluminum and the legs are a twin tube design with two stages. It includes the E-Image Mono-Lock design which allows you to control the height of both stages with a single twist lock.

Flat Base
The 100mm Flat Base includes a 3/8"-16 mounting screw at the top and is designed to mount PTZ Teleprompter Systems or Robotic PTZ Heads. When using the pedestal with our 19" PTZ Teleprompter system, the 100mm Flat Base provides additional preliminary tilt adjustment. This will help remove the teleprompter monitor from your camera shot if you're shooting at a wide focal length. After finalizing your preliminary tilt adjustment, your PTZ Camera can be used for primary panning & tilting adjustments moving forward. If you are looking to only mount the PTZ camera itself, the P6 quick-release plate is included and can also be mounted directly onto the 100BF flat base.

Features
• Mounts PTZ Cameras, PTZ Teleprompters, or Pan-Tilt Heads
• Tripod Kit Supports Up to 88 lbs
• Height Range: 23.7" - 68.1"
• 2-Stage Legs with Mono-Lock Leg Locking System
• Includes EI-7004B Dolly with Locking Wheels and Cable Guard

- EI-7004B Dolly -
The EI-7004B dolly features 4" locking rubber wheels with a capacity of 132.3 pounds. This system has a working footprint of 39.4 inches and has height-adjustable cable guards. Each dolly system is easy to fold with its handle and single wingnut for transport in the DB-01 carrying bag (included).
