Ikan 19" Professional High Bright SDI Teleprompter with Pedestal, Dolly Turnkey, Talent Monitor and OTTICA 20x PTZ Camera

SKU: IAPT4900P15 MFR: PT4900S-PTZ-TM-PEDESTAL-O
Earn VIP Reward Points

Key Features

  • Achieve clear visibility with this pro teleprompter's 19" high-bright SDI monitor.
  • Easy setup: This complete teleprompter system includes pedestal, dolly, & software.
  • Control your script remotely for smooth delivery using the included teleprompter software.
  • Durable build: Anodized aluminum & carbon fiber ensure years of reliable teleprompting.
  • Software compatibility: PrompterPro software included for seamless script management.
  • Adjustable speed: Maintain a natural pace with customizable teleprompter scroll speeds.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan PTZ Camera Teleprompter Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    Talent Monitor Attachment
    Rod Clamp with Screws
    PTZ Teleprompter Hood
    50-Deg. Glass Frame Holder Bracket
    PTZ Riser
    1/4"-20 Screw (Long)
    1/4"-20 Screw (Short)
    OTTICA 20x PTZ Camera
    Lens Cap
    Power Adapter
    RS232 Cable
    IR Remote Controller
    Wall Mounting Bracket
    Mounting Screws
    RS485 Connector
    Cascade Cable
    User Manual
    (Hard Case Not Included)

19" Teleprompter

Jump to...
  • Build Material

    Chassis: Anodized Aluminum
    Rods: Carbon Fiber

  • Riser Plate Height

    Low: 2.06" (52.5mm)
    Medium: 3.74" (95mm)
    High: 5.31" (135mm)
    DSLR: 6.29" (160mm)

  • Length of Rods

    15 x 400mm

  • Reading Range

    25' (7.62m)

  • Beamsplitter Ratio

    70/30

  • Beamsplitter Shape

    Rectangular

  • Beamsplitter Material

    Glass

  • Tripod Mounts

    11x 1/4" -20 Female
    9x 3/8" -16 Female

  • Height of Teleprompter

    16" (406mm)

  • Weight

    With Low Plate: 22.70 lbs (10.2kg)
    With Medium Plate: 23.10 lbs (10.4kg)
    With High Plate: 23.23 lbs (10.5kg)
    With DSLR Plate: 22.60 lbs (10.2kg)

PTZ Teleprompter Add-on Kit

Jump to...
  • Material

    Hood: Polyester Canvas
    Riser Plates: Aluminum
    Glass Frame Holder: Aluminum

  • Angle of Glass Frame Holder

    50 Degree

19" SDI Teleprompter Monitor

Jump to...
  • Build Material

    Aluminum Chassis

  • Aspect Ratio

    4:3

  • Maximum Brightness

    1000 cd/ sq. m

  • Screen Size (Diagonal)

    19" (48.26cm)

  • Mount

    VESA 100mm

  • Video Inputs

    SDI, HDMI, VGA

  • Input Voltage

    DC 12v / 4A

  • Power Consumption

    30W

  • Native Resolution

    1280 x 1024

  • Viewing Angle

    160 Degree (H) / 170 Degree (V)

  • Image Flip

    Horizontal: Yes
    Vertical: Yes

  • Dimensions

    17 x 15 x 1" (43.1 x 38.1 x 2.54cm)

  • Weight

    6 lbs (2.72kg)

19" Widescreen Talent Monitor

Jump to...
  • Build Material

    Aluminum Chassis

  • Aspect Ratio

    16:9

  • Maximum Brightness

    1000 cd/sq. m

  • Screen Size (Diagonal)

    18.5" (46.99cm)

  • Mount

    VESA 100mm

  • Video Inputs

    SDI, HDMI, VGA

  • Input Voltage

    DC 12v / 5A

  • Power Consumption

    36W

  • Native Resolution

    1920 x 1080

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Image Flip

    Horizontal: Yes
    Vertical: Yes

  • Tally Interface

    RJ45

  • Dimensions

    18.3 x 12.3 x 1.2" (46.48 x 31.24 x 3.04cm)

  • Weight

    5.73 lbs (2.59kg)

Pedestal

Jump to...
  • Build Material

    Aluminum

  • Bowl Size

    100mm

  • Payload Capacity

    44 lbs (19.95kg)

  • Height Range

    40.2 - 72.6" (102 - 184.5cm)

  • On-Shot Stroke

    12.6" (32cm)

  • Steering Ring Diameter

    7.67" (195mm)

  • Weight

    34.8 lbs (15.8kg)

100mm Flat Base

Jump to...
  • Diameter

    4.52" (115mm)

  • Weight

    15.68 oz (444.52kg)

Soft Carrying Case

Jump to...
  • Material

    Waterproof 1680D Nylon

  • Dimensions

    External: 42.5 x 8.7 x 9.4" (107.9 x 22 x 23.87cm)
    Internal: 40.9 x 6.3 x 8.3" (103.8 x 16 x 21cm)

  • Weight

    6.2 lbs (2.81kg)

  • Build Material

    Legs: Aluminum
    Wheels: Rubber
    Screws: Steel

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100mm)

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Weight

    15 lbs (6.8kg)

PTZ Camera

Jump to...
  • Color

    Black

  • AV

    F1.6 - F3.5

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    ON/OFF

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Focusing

    Input Audio Format

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/-10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    20x f=5.5-110mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 -60 Degree /sec

  • Pan Rotation

    +/-170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / CONTROLLER: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/-10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60fp

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1-30 Degree /sec

  • Tilt Rotation

    30 Degree -+90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    3.3 Degree -54.7 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Dimensions (W x H x D)

    5.9 x 6.6 x 5.9" (150 x 167.5 x 150mm)

  • Weight

    3.08 lbs (1.40kg)

  • UPC Code

    847983033805

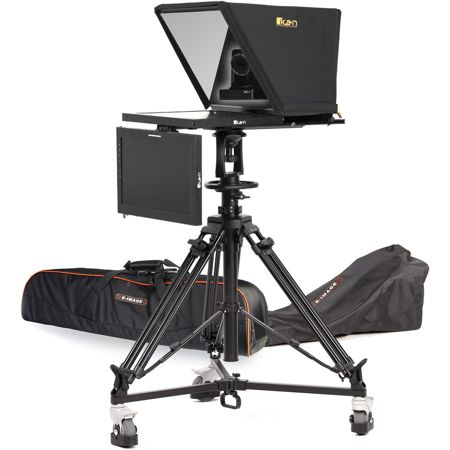

About Ikan PTZ Camera Teleprompter

Are you in search of a comprehensive solution for your professional video production needs Look no further than the 19" Professional High Bright SDI Teleprompter with Pedestal, Dolly Turnkey, Talent Monitor, and OTTICA 20x PTZ Camera. This robust and versatile product, crafted by industry-leading brand ikan, offers a complete package for your filming or broadcasting requirements.

The centerpiece of this package is the 19" PTZ Teleprompter, a professional-grade tool designed for seamless teleprompting with PTZ cameras. It boasts a 1000 cd/sq. m monitor and a 70/30 20"-wide beamsplitter glass, offering a clear and crisp reading range of up to 25'. The teleprompter's extra-wide hood assembly allows for considerable camera movement within the wide beam splitter glass, making it compatible with a wide range of PTZ cameras.

The PTZ Teleprompter system is unique in its ability to enable the PTZ camera's pan, tilt, and zoom capabilities while remaining behind the reflective teleprompter glass. This feature allows for easy panning between multiple people reading from the same script. The lightweight hood fully encloses the PTZ camera, ensuring its movement remains unconstrained, and includes a drawstring-closable opening for quick access to the PTZ camera's inputs and outputs.

The package also includes a 19-inch widescreen 3G-SDI Talent Monitor, which can be conveniently attached right below the teleprompter. This allows on-camera talent to view their presentations live. With a native resolution of 1920 x 1080 HD and a max brightness of 1000 nits, the monitor ensures a clear and vibrant display under any lighting conditions.

The OTTICA PTZ Video Camera, featuring a 1/2.8" CMOS sensor and a 5.5-110mm varifocal lens with 20x zoom, captures videos at a maximum resolution of 1080p at 60fps. It supports various connectivity options, including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in. The camera's advanced ISP processing algorithms provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.

The package is rounded off with a sturdy pedestal and a dolly turnkey for easy and stable setup. The pedestal's pneumatic column offers an effortless on-shot stroke of 12.75", supporting up to 44 pounds. The dolly features 4" locking rubber wheels with a capacity of 132.3 pounds, ensuring smooth and secure movement.

All these components come in reusable custom cut foam for safe storage and easy transport. Choose the 19" Professional High Bright SDI Teleprompter with Pedestal, Dolly Turnkey, Talent Monitor, and OTTICA 20x PTZ Camera for a comprehensive, high-quality, and reliable solution for your professional video production needs.

Ikan PTZ Camera Teleprompter Features

  • Includes OTTICA 20x Full-HD PTZ Camera with NDI|HX, HDMI, 3G-SDI
  • 19" Teleprompter System Designed to Use OTTICA PTZ Camera
  • Teleprompter and Talent Monitors Include 3G-SDI, HDMI, and VGA Inputs
  • Hood Completely Encloses OTTICA PTZ Camera Allowing it to Move Freely
  • Includes 1000-Nit High-bright Monitor
  • Easy Balancing with Adjustable Base
  • Comes in Reusable Foam for Easy Transport
  • PrompterPro Software for MAC & PC is FREE with This Teleprompter
  • On-Shot Stroke of 12.75" with Easy-Adjust Latch
  • Pedestal Height Range: 41 - 73"
  • EI-7004B Dolly with Locking Wheels and Cable Guard
  • Includes Carrying Bags for Pedestal Legs & Dolly

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve clear visibility with this pro teleprompter's 19" high-bright SDI monitor.
  • Easy setup: This complete teleprompter system includes pedestal, dolly, & software.
  • Control your script remotely for smooth delivery using the included teleprompter software.
  • Durable build: Anodized aluminum & carbon fiber ensure years of reliable teleprompting.
  • Software compatibility: PrompterPro software included for seamless script management.
  • Adjustable speed: Maintain a natural pace with customizable teleprompter scroll speeds.

What's in the box:

  • Pedestal
  • 100mm Bowl with Flat Base
  • Pedestal Carrying Bag
  • Dolly
  • Dolly Carrying Bag
  • Bottom Plate
  • Base
  • Glass Frame Holder Bracket
  • 19" 70/30 Teleprompter Glass
  • Hood Attachment Frame
  • Glass Holder
  • 2x 15mm Rod Clamps
  • 2x 15mm Rods
  • 19" SDI Teleprompter Monitor
  • AC Adapter w/Cord
  • Teleprompter Glass
  • PrompterPro Software
  • 19" SDI Teleprompter Monitor w/Tally
  • Talent Monitor Mount
  • (See the Specification Section for Additional Included Items)
  • Ikan 1 Year Limited Warranty
