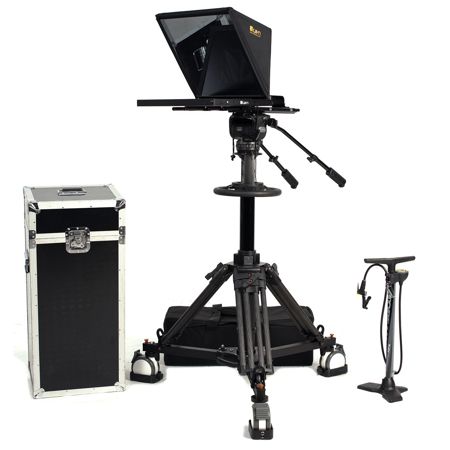

Ikan 19" SDI Teleprompter with Pedestal and Dolly Turnkey

Turnkey Broadcast Solution
Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" teleprompter, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 38.8 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 61.7 lbs. This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

19-Inch Teleprompter System
Ikan's 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminum teleprompter has multiple 3/8-16" and 1/4-20" for mounting to a pedestal. The teleprompter monitor includes HDMI, VGA, and 3G-SDI Inputs.

Extreme Clarity
The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you're under the sun or studio lighting.

Large Range of Camera Compatibility
Our professional line teleprompters include three different camera mount bases to allow for a large range of different-sized cameras to work. The base can conveniently slide to adjust the weight without the need to remove the plate.

Height of Riser Plates:
• Short - 2.06" (52.5mm)
• Medium - 3.74" (95mm)
• Tall - 5.31" (135mm)
• Extra Tall - 6.29" (160mm)

Easy To Balance
The PT4900 includes a long rail which allows you to easily balance your entire teleprompter setup. A counterweight is not needed with the PT4900 since the weight can be shifted anywhere along the teleprompter base. Since a counterweight is not needed, you will not be adding additional weight to the tripod head.

Slide Range
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range to counterbalance your entire teleprompter and camera setup.

Pan & Tilt Locks
The fluid head features individual locks for both the pan and tilt.

Drag/Counterbalance
The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening.

Dual Panhandles
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24"

100mm Bowl
The fluid head includes a 100mm bowl mount with a twist lock to secure the teleprompter and camera payload.

Pneumatic Pedestal
This pneumatic pedestal includes an air pump to inject air into the center column and an air release allows you to fine-tune the balance. After the perfect balance has been achieved, adjusting the height of the center column will be effortless. The pedestal system, without the teleprompter, can support payloads weighing up to 61.7 pounds. The on-shot stroke of the center column is 15".

Carbon Fiber Legs
The pedestal features dual carbon fiber legs for each section. When mounted onto the heavy-duty dolly, these pedestal legs can provide support up to 66 lbs.

Versatile Dolly Shots
The dolly base has track lock wheels to maintain direction during complex dollying and tracking shots. By locking the wheels in certain positions, radial arc shots can also be achieved.
