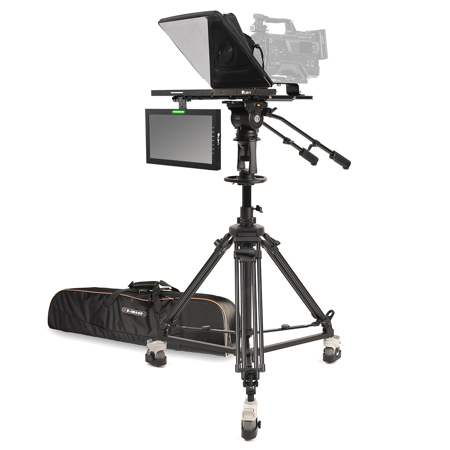

Ikan 15" 3G-SDI Teleprompter with Tally Light, Pedestal, Dolly Turnkey and Widescreen Talent Monitor

SKU: IAPTSTMWPTAL MFR: PT4500S-TMW-PEDESTAL
Earn VIP Reward Points

Key Features

  • Achieve perfect delivery every time with this 15" Ikan teleprompter and included software.
  • Enjoy a clear, easy-to-read display with a 1280x1024 native resolution for confident presentations.
  • The adjustable speed and remote control of this teleprompter let you manage your pace effortlessly.
  • Built with a durable aluminum chassis, this teleprompter ensures reliability for years of use.
  • This teleprompter's software compatibility enhances your workflow, integrating easily with systems.
  • Use the included pedestal and dolly for stable, professional teleprompter setup in any studio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan PT4500S-TMW-PEDESTAL Specifications

General

General

Jump to...
  • Color

    Black

  • Available Payload w/o Counterweight

    13 lbs (5.89kg)

  • Available Payload w/ Counterweight

    7.1 lbs (3.22kg)

  • Max Height of Full System

    7.58' (2.31m)

  • Min Height of Full System

    4.93' (1.50m)

  • Weight

    Full System w/ Talent Monitor: 71.26 lbs (32.32kg)
    Full System w/o Talent Monitor: 67.24 lbs (30.49kg)

15" Teleprompter

Jump to...
  • Length of Rods

    15 x 400mm

  • Reading Range

    17' (5.18m)

  • Beamsplitter Ratio

    70/30

  • Beamsplitter Shape

    Rectangular

  • Beamsplitter Material

    Glass

  • Sliding Range

    5.9" (150mm)

  • Weight

    With Low Plate: 24.11 lbs (10.93kg)
    With Medium Plate: 24.51 lbs (11.11kg)
    With High Plate: 24.64 lbs (11.17kg)
    With DSLR Plate: 24.01 lbs (10.89kg)

15" Teleprompter Monitor

Jump to...
  • Aspect Ratio

    4:3

  • Maximum Brightness

    1000 cd/sq. m

  • Screen Size (Diagonal)

    15" (38.1cm)

  • Tally Input

    RJ45

  • Tally Pin out

    3-Pin (5V, Red GND, Green GND)

  • Mount

    VESA 100mm

  • Video Inputs

    3G-SDI, HDMI, VGA

  • Input Voltage

    DC 12v / 4A

  • Power Consumption

    28W

  • Native Resolution

    1280 x 1024

  • Viewing Angle

    160 Degree (H) / 170 Degree (V)

  • Build Material

    Aluminum Chassis

  • Dimensions

    12.13 x 14.25 x 1" (30.81 x 36.19 x 2.54cm)

  • Weight

    3.97 lbs (1.8kg)

Pedestal

Jump to...
  • Bowl Size

    100mm

  • Payload Capacity

    44 lbs (19.95kg)

  • Height Range

    40.2 - 72.6" (102 - 184.5cm)

  • Build Material

    Aluminum

  • On-Shot Stroke

    12.6" (32cm)

  • Steering Ring Diameter

    7.67" (195mm)

  • Weight

    34.8 lbs (15.8kg)

Fluid Head

Jump to...
  • Head Payload Capacity

    44.1 lbs (20kg)

  • Bowl Size

    100mm

  • Counterbalance System

    Stepped, 1-8

  • Pan Drag Settings

    Fixed

  • Tilt Drag Settings

    Fixed

  • Tilt Lock

    Thumb Lock

  • Tilt Range

    -60 Degree /+90 Degree

  • Bubble Level

    Yes

  • Pan Handle Length Range

    16.7 - 24"

  • Sliding Plate Range

    7.87" (200mm)

  • Temperature Range

    -40 Degree F - 194 Degree F (-40 Degree C - 90 Degree C)

  • Camera Plate Length

    8" (203.2mm)

  • Weight

    7.7 lbs (3.5kg)
    With Pan Handles: 9.5 lbs (4.30kg)

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100mm)

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Weight

    15 lbs (6.8kg)

15" Widescreen Talent Monitor

Jump to...
  • Aspect Ratio

    16:9

  • Maximum Brightness

    1000 cd/sq. m

  • Screen Size (Diagonal)

    15" (38.1cm)

  • Mount

    VESA 100mm

  • Video Inputs

    SDI, HDMI, VGA

  • Input Voltage

    DC 12v

  • Power Consumption

    26.5W

  • LCD Panel Size

    13.5 x 7.7"

  • Native Resolution

    1920 x 1080

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Build Material

    Aluminum Chassis

  • Tally Input Port

    RJ45 (3-Pin)

  • Dimensions

    15.7 x 10.6 x 1.1" (39.87 x 26.92 x 2.79cm)

  • Weight

    3.73 lbs (1.69kg)

  • UPC Code

    847983035311

About Ikan PT4500S-TMW-PEDESTAL

How can you elevate your professional camera setup With Ikan's Turnkey Broadcast Solutions, you'll have everything you need for a seamless and efficient operation. This comprehensive package includes a 15" teleprompter, a widescreen talent monitor, a sturdy pedestal, and a versatile dolly.

The 15" teleprompter system, part of Ikan's 4th generation professional series, is designed for quick setup and optimal performance in both outside broadcast applications and professional studios. Crafted from lightweight aluminum, the teleprompter offers multiple 3/8-16" and 1/4-20" mounting options for the pedestal. The monitor supports HDMI, VGA, and Composite (BNC) inputs, ensuring compatibility with a variety of devices.

The 15" widescreen talent monitor is equipped with 3D-SDI, HDMI, and VGA inputs, and boasts a native resolution of 1920 x 1080 HD. With a maximum brightness of 1000 nits and an OSD adjustment menu, you can fine-tune contrast, brightness, backlight, tint, chroma, and sharpness to suit your needs. The monitor also features a red/green tally light that indicates when your camera is live, enhancing communication between on-camera talent and production teams.

Our teleprompter monitors come with integrated tally lights, designed to enhance communication between on-camera talent and production teams. These lights illuminate when the camera is actively live on-air or recording, providing real-time feedback to the presenters.

The high-quality 70/30 made-in-America teleprompter glass ensures a perfect balance of reflection and pass-through, without distorting the image. With 1000 nits, the prompting image will always be crisp and visible, whether you're under the sun or studio lighting.

The 15-inch Teleprompter includes a rail that allows you to easily balance your entire teleprompter setup. You can offset the entire teleprompter setup up to 7 inches. Our professional line teleprompters include four different camera mount bases and counterweights, accommodating a wide range of camera sizes.

The fluid head features individual locks for both the pan and tilt, ensuring stability and eliminating unintended shifts in framing. It also provides 8 levels of adjustable counterbalance, facilitating smooth camera movements. The dual panhandles allow you to maintain firm control on your shots and are perfect for mounting zoom, focus, and iris controls.

The Pneumatic Pedestal includes an air-assist center column for effortless height adjustments of your payload. The pedestal system can support payloads weighing up to 44 pounds. The pedestal and dolly, weighing 34.8 lbs, feature aluminum legs for added durability.

The heavy-duty dolly supports up to 132 lbs, making it ideal for moving tripods along a flat surface for quick repositioning between shots. The adjustable rubber foot mounts provide a quick and easy setup. This dolly also comes with height-adjustable cable guards and is perfect for both studio and on-location use where support for heavy setups is a requirement.

In conclusion, Ikan's Turnkey Broadcast Solutions offer a comprehensive, professional-grade camera setup solution, designed to enhance your broadcast operations with ease and efficiency.

Ikan PT4500S-TMW-PEDESTAL Features

  • Accommodates Camera Payloads up to 13.2 lbs (w/o Counterweight)
  • For Use in Studios, Live Events, & Virtual Productions
  • Video Inputs: HDMI, VGA, 3G-SDI
  • Monitor Includes Built-In Tally Light
  • Pneumatic Pedestal with Fluid Head
  • Dolly with Cable Guards
  • Carrying Bag for Pedestal

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve perfect delivery every time with this 15" Ikan teleprompter and included software.
  • Enjoy a clear, easy-to-read display with a 1280x1024 native resolution for confident presentations.
  • The adjustable speed and remote control of this teleprompter let you manage your pace effortlessly.
  • Built with a durable aluminum chassis, this teleprompter ensures reliability for years of use.
  • This teleprompter's software compatibility enhances your workflow, integrating easily with systems.
  • Use the included pedestal and dolly for stable, professional teleprompter setup in any studio.

What's in the box:

  • Ikan 15" 3G-SDI Teleprompter with Monitor
  • Pedestal with Head
  • Dolly with Wheels & Cable Guards
  • 15" Widescreen Talent Monitor
  • QR Plate
  • 4x Camera Riser Plates
  • PrompterPro Software (Free with Teleprompter)
  • Carrying Bag for Tripod & Head
  • Ikan 1 Year Limited Warranty
