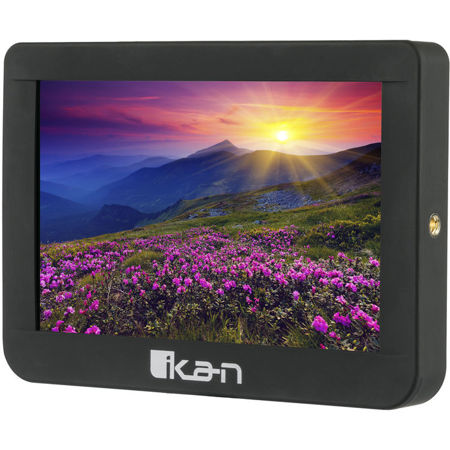

Ikan Saga S7C-DK 7" On-Camera LED Monitor Deluxe Kit
See all iKan items

Ikan Saga S7C-DK 7" On-Camera LED Monitor Deluxe Kit, 1920x1200, Supports 4K HDMI/3G-SDI

SKU: IAS7CDK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Ikan VXF7-HB 7" WUXGA High-Bright On-Camera Tally Field Monitor, 4K HDMI/3G-SDI
$849.99
undefined undefined: Picture 1 regular
Ikan VXF7-HB 7" WUXGA High-Bright On-Camera Monitor Deluxe Kit, 4K HDMI/3G-SDI
$849.99
undefined undefined: Picture 1 regular
Ikan 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor, V2
$749.99
undefined undefined: Picture 1 regular
Ikan 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor Deluxe Kit, V2
$799.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Ikan S7C-DK Specifications

Display

Display

Jump to...

  • Display

    7" LCD

  • Screen Resolution

    1920 x 1200

  • Aspect Ratio

    16:10

  • Backlight

    LED

  • Viewing Angle

    Horizontal: 178 deg. (89/89)

  • Touchscreen

    No

  • Maximum Brightness

    450 cd/sq. m

  • Contrast Ratio

    1100:1

  • LUT Support

    No

  • Image Controls

    False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Zebra

I/O

Jump to...

  • Video

    1x HDMI 2.0 (HDMI Type A) Input
    1x HDMI 2.0 (HDMI Type A) Output
    1x 3G-SDI (BNC) Input
    1x 3G-SDI (BNC) Output

  • Embedded Audio

    HDMI
    SDI

  • Audio

    1x 3.5mm Headphone Output

  • Built-In Speaker

    No

  • Power

    1x Barrel Input

  • Card Slot

    No

Supported Video Signal

Jump to...

  • SDI

    720x480i at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080p at 23.93, 24, 25, 29.97, 30, 50, 59.94, 60Hz

  • HDMI

    720x480i & 720x480p at 59.94, 60Hz
    720x576i & 720x576p at 50Hz
    1280x720p at 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
    3840x2160p at 24, 25, 30Hz
    4096x2160p at 24Hz

Power

Jump to...

  • DC Input Power

    7 to 24 VDC

  • Battery Type

    2x L-Series

Mounting

Jump to...

  • Mounting

    1x Cold Shoe

General

Jump to...

  • Dimensions (W x H x D)

    7.25 x 5 x 0.75" (18.42 x 12.70 x 1.91cm)

  • Weight

    1 lbs (0.45kg)

About Ikan S7C-DK

The Ikan Saga line of on-camera LCD monitors are high resolution and extremely portable. The Saga S7C is a 7" monitor with both HDMI and 3G-SDI inputs and outputs. This versatile and affordable monitor is designed for the run and gun shooter. The S7C differentiates itself by being slim, lightweight and affordable.

Ikan S7C-DK Features

  • 1920 x 1200 LCD display
  • Dual battery support
  • 4K Ultra HD support via HDMI
  • Histogram, peaking, false color, pixel-to-pixel, clip guides, image flip, audio meter
  • HDMI/3G-SDI input and output, 3.5mm audio output
  • L series battery mount

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ikan Saga S7C 7 " On-Camera LED Monitor
  • Sun Hood
  • Power Adapter
  • Shoe Mount Adapter
  • Soft Carry Case
  • Slim 1.5' HDMI Cable (Mini to Standard)
  • Slim 1.5' HDMI Cable (Micro to Standard)
  • Dual Battery Charger
  • 2x IBS-550 Battery
  • Ikan 1 Year Limited Warranty
