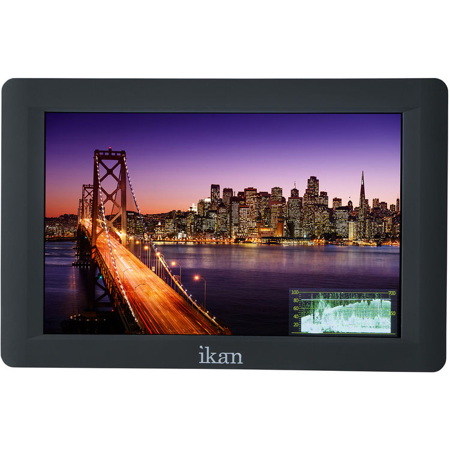

Ikan Saga 7" High Bright 4K Signal Support HDMI/3G-SDI On-Camera LED Field Monitor - with Panasonic D54 Compatible Batteries and Charger

S7H Monitor
• Waveform, Histogram, False Color
• Clip Guides, Peaking, Audio Meters
• Pixel to Pixel, Check Field, Underscan
• DSLR Scaling, Zooming, H/V Delay
• Guides, Crosshair, Grids

The iKan Saga line of on-camera LCD monitors are high resolution and extremely portable. The Saga S7H is a 7" high bright monito with both HDMI and 3G-SDI inputs and outputs (loop-through). This versatile and affordable monitor is designed for the run and gun shooter. The S7H differentiates itself from other high bright monitors by being slim, lightweight and affordable.

• 1920 x 1200 Full HD Plus LCD Panel
• 700 nit High Bright LCD Panel
• 3G-SDI / HDMI Inputs and Outputs
• Supports DCI 4K Ultra HD via HDMI Input)
• IPS Screen for More Accurate Color & Viewing Angles
• Histogram & Audio Level Meters
• Peaking, False Color, Clip Guides, & Pixel to Pixel
• Headphone Output
• Includes Dual Canon E6 Battery Plates

High Bright
The S7H is equipped with a high resolution color accurate LCD panel. At 700 NITS of brightness, this makes it an ideal outdoor field or on-camera monitor.

4K Signal Capability
The S7H supports both Ultra HD (3840x2160) as well as DCI 4K (4096x2160) via the HDMI ports. With 1:1 pixel mapping and peaking, everything will stay in sharp focus.

1920 x 1200 IPS Panel
The monitor's 1920 x 1200 resolution delivers a sharp picture and the IPS technology gives you great viewing angles and accurate colors.

Inputs & Outputs
The versatile S7H is compatible with all cameras and also equipped with both HDMI and 3G-SDI inputs and outputs. In addition, the monitor has a 3.5mm headphone output so you can easily monitor your audio.

Battery Power
The S7H includes dual Canon E6 battery plates. With the ability to use two batteries at a time, the monitor can extend its run time. Designed to use our BP5 style battery plates, the S7H is compatible with most battery styles with optional battery plates.

Common Software Features

Peaking
iKan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

Movable pixel to pixel
The 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

DSLR Scaling
The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen - convenience made simple.

Underscan
Underscan constrains the size of your image so the monitor shows everything the camera is seeing.
