Ikan Saga S7P Specifications

  • Aspect Ratio

    16:10

  • Battery

    L Series Battery

  • Brightness

    2000 cd/sq. m

  • Contrast Ratio

    1100:1

  • Inputs

    1x HDMI
    1x 3G-SDI
    1x 3.5mm Audio

  • Outputs

    1x HDMI
    1x 3G-SDI

  • Resolution

    1920 x 1200

  • Viewing Angle

    178 Degree (89 Degree/89 Degree)

  • Supported Video Signals

    SDI:
    720x480i @ 59.94, 60 Hz
    720x576i & 720x576p @ 50 Hz
    1280x720p @ 50, 60 Hz
    1920x1080i @ 50, 59.94, 60 Hz
    1920x1080psf @ 24, 25, 29.97, 30 Hz
    1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

  • Supported Video Signals (Contd.)

    HDMI:
    720x480i & 720x480p @ 59.94, 60 Hz
    720x576i & 720x576p @ 50 Hz
    1280x720p @ 50, 59.94, 60 Hz
    1920x1080i @ 50, 59.94, 60 Hz
    1920x1080psf @ 24, 25, 29.97, 30 Hz
    1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
    3840x2160p @ 24, 25, 30 Hz
    4096x2160p @ 24 Hz

  • Dimensions

    7.3 x 4.4 x 1.1" (18.5 x 11.1 x 2.7cm)

  • Weight

    1.5 lb (0.6kg)

  • UPC Code

    847983030736

About Ikan Saga S7P

The Saga S7P is equipped with an LCD panel that cranks out 2000 nits of brightness, which is about 4 times as bright as most monitors. Not only is the panel bright, but it is also extremely sharp and accurate. The S7P can be powered either by L series batteries or via the included AC adapter.

3D-LUT and HDR Capabilities
The Saga S7P allows you shot your footage in log format, while previewing in real time on the monitor in HDR or loading custom LUTs. HDR previews of HLG 2020, HLG 709, and HLG P3.

High End Video Analysis
The S7P is packed with video analysis features that help you get the perfect picture. The monitor has highly accurate Waveform, Vectorscope, RGB Parade and Histogram. You'll also have both options of navigating features via the intuitive touchscreen or easy to use scroll wheel.

Inputs & Outputs
The S7P is equipped with both HDMI and 3G-SDI inputs and outputs. In addition, the monitor also has a 3.5mm headphone output so you can monitor your audio from the S7P.

Battery Power

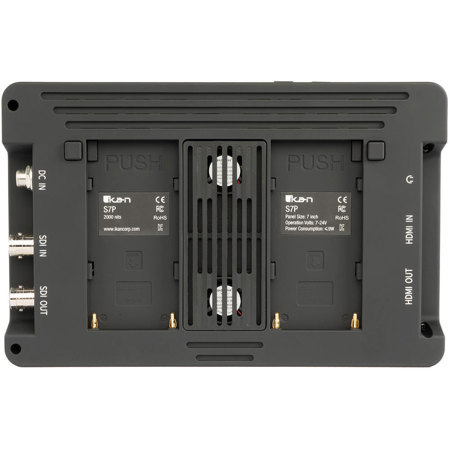

The S7P has the option to use either one or two L series batteries at a time. Additionally, the monitor can be powered via the screw thread DC in port for a secure connection.

Software Features
• 3D LUTs
• HDR Preview
• Waveform
• Y/YUV/RGB Parade
• Y/RGB Histogram
• Vector
• False Color
• Peaking
• Timecode
• Zebra
• Guide
• Aspect Ratio (Anamorphic De-Squeeze 1.33x)
• Pixel to Pixel
• Zoom
• Image Flip
• Freeze Frame
• Battery Level

Ikan Saga S7P Features

  • 1920 x 1200 touchscreen display
  • Daylight viewable monitor 2000 nit high bright panel
  • Real time LUT preview in HDR or loadable 3D LUTs via SD card slot
  • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
  • Waveform, RGB parade, vectorscope, histogram, peaking, false color, pixel-to-pixel, clip guides, image flip, audiometer
  • 4K Ultra HD support via HDMI
  • 3G-SDI & HDMI input and output, 3.5mm audio output
  • Dual L series battery slots

Key Features

  • 1920 x 1200 touchscreen display
  • Daylight viewable monitor 2000 nit high bright panel
  • Real time LUT preview in HDR or loadable 3D LUTs via SD card slot
  • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
  • 4K Ultra HD support via HDMI
  • 3G-SDI & HDMI input and output, 3.5mm audio output

What's in the box:

  • Saga S7P 7 " Monitor
  • Power Adapter
  • Shoe Mount
  • Ikan 1 Year Limited Warranty
