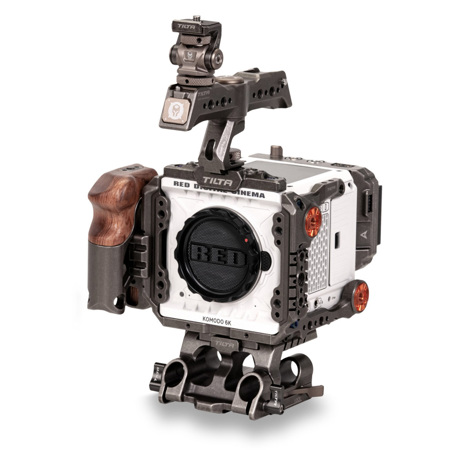

Tilta RED Komodo Kit E (V Mount) - Tactical Gray

This camera cage provides protective armor for the RED Komodo camera. It provides several 1/4"-20 and 3/8"-16 mounting points for mounting accessories. It also includes two rosettes on each side as well as a cold shoe mount on top. The base of the cage also provides several mounting holes when attaching your camera to gimbals to more easily fine tune the balance of your setup.

A variety of different baseplates can be attached to the bottom of the cage, allowing for various rod mounting and optional power supply configurations. The quick release top handle, adjustable quick release top handle, and various optional side handles can be attached to the cage to provide for different ways to comfortably operate your camera setup.

This kit of the RED Komodo camera cage will help to fully build out your setup. It includes: the base RED Komodo cage, right side wooden handle, quick release top handle, Arca and Manfrotto quick release baseplates, 15mm LWS baseplate, an Adjustable Cold Shoe Accessory Mounting Bracket, and finally a Dual Canon BP to V Mount Adapter Battery Plate to allow for a longer battery life for your camera.

- Full Camera Cage -

Camera Rig for KOMODO - Tactical Gray
The rig covers the entire camera body

Features and Rigging

Unique Nato Design
Multiple 1/4"-20 and 3/8"-16 threaded screws for various accessory mounting options. Space efficient and multifunctional.

Custom-Designed Rosette for KOMODO
Lightweight hollowed-out design. Rigid stainless steel with colored plating. Compatible with an array of accessories, such as a side handle, SSD holder, etc. 1/4"-20 threaded screws with locating points for mounting accessories.

Top Plate
The built-in cold shoe mount supports accessories such as a monitor bracket, wireless video transmitter, articulating arm, side handle, etc.

Fully Adjustable Top Handle
Press the release button to quickly adjust the top handle or side handle. Provides easy access to view the top monitor.

Adjustable Side Handle
360 Degree adjustable angle. Solves power supply and focus control issues.

Adjustable Top Handles & Side Handles

Fully Adjustable
The handle has built-in cold shoe mounts and a 15mm rod holder for mounting accessories. Loosen the 1/4"-20 screw to adjust the handle forward and backward.

Dual Cold Shoe Mounts
With safety pin.

90 Degree Rotatable Top Handle
Press and release button to quickly adjust the operating angle.

Wooden Handle
Durable and lightweight with ergonomic design.

Tiltaing Right Side Advanced Focus Handle Type V
360 Degree adjustable angle
• Solves power supply and focus control issues all-in-one
• Sony F570 Battery

Tiltaing Right Side Advanced Power Handle Type IV
• 360 Degree adjustable angle
• Powers the camera or Nucleus Nano lens control motor
• Extends the operating time
• Sony F570 Battery

Power Supply Module and Baseplate
The battery plate adapter extends the continuous operating time. Compact and efficient mounting options.

Easy Installation
Quick assembly and disassembly. Various outputs for better external power supply.

Top Ports Include
• 1x 5V USB Port
• 1x 14.8V P-Tap Port
• 1x 14.8V 2-Pin LEMO Port

Advanced Power Supply Module
Power Ports:
• 1x Run/Stop Port, Timecode Port
• 1x Control Port, Genlock Port
• 1x 5V USB Port, 14.8V P-Tap Port
• 1x 14.8V 2-Pin LEMO Port

Modular Design
Easily switch between V-mount and Gold Mount.

Compatible with Tiltaing 15mm LWS Baseplate
Provides multiple 1/4"-20 and 3/8"-16 threaded holes.

Compatibility
Compatible with Manfrotto and Arca quick release plates. Quick assembly and disassembly.

LWS Baseplate
Rigid. Steady. Lightweight.

Hollowed-Out Lightweight Design
Mini safety toggle for security.

- Tiltaing Right Side Wooden Handle Type I -
The Right-Side Wooden Handle Type I is designed to attach to the right side of the Tilta cage for the RED Komodo camera via an included NATO rail adapter.

- Tiltaing Adjustable Cold Shoe Accessory Mounting Bracket -
This bracket attaches to your camera setup via a cold shoe mount and provides an adjustable 1/4"-20 mounting point to allow you to attach a variety of accessories such as a monitor or wireless video transmitter.

Features
• Secure Connection: Via Cold Shoe and 1/4"-20 Screw
• Mount Accessories: Such as External Monitors and Wireless Video Transmitters
• Adjustable: Tilt Axis Allows for Flexibility When Mounting
• Compatible: With Any Cage that Features a Cold Shoe Receiver
• Lightweight & Durable: Aluminum and Steel Construction

- Tiltaing ARCA Quick Release Plate Type II -
This Arca-Swiss compatible quick release plate attaches directly to the bottom of the Tiltaing camera cages for Sigma fp and Black Magic Pocket Cinema Camera 4K/6K to allow you to quickly and easily attach and detach from Arca-Swiss support systems.

- Tiltaing Manfrotto Quick Release Plate Type II -
This Manfrotto-compatible quick release plate attaches directly to the bottom of the Tiltaing camera cages for Sigma fp and Black Magic Pocket Cinema Camera 4K/6K to allow you to quickly and easily attach and detach from Manfrotto support systems.

- 15mm LWS Baseplate -
This 15mm LWS baseplate attaches to the base of the full camera cage for RED Komodo to allow you to rig essential accessories on 15mm LWS rods such as a follow focus or matte box.

Dovetail track allows you to easily slide and lock this Baseplate onto our Tilta Standard Dovetails or an ARRI Standard Dovetail via an adapter. 1/4"-20 and 3/8"-16 Threads on the bottom support almost any Quick Release Plate.

Features
• 15mm Rod Support Secure 15mm Rods to your System for Various AccessoriAdjustable Top Handles & Side Handleses
• Dovetail Support Slides and Locks onto Tilta Standard Dovetails
• Universal Supports Quick Release Plates that Connect via 1/4"-20 or 3/8"-16 Threads
• Custom Designed for our RED KOMODO Full Camera Cage
• Sturdy Aluminum and Steel Construction

- Tiltaing Quick Release Top Handle -
This QR Top Handle is designed to attach to the shoe mount on the optional Tilta Top Plate for the RED Komodo camera, securing tool-free via a thumbwheel. It provides multiple 1/4"-20 and 3/8"-16 mounting threads and one shoe mount on the front end and one on the back. This can also be rotated in 90 Degree increments at the press of a large push button in the center.

- Dual Canon BP to V-Mount Adapter Battery Plate -
This adapter allows you to adapt the RED Komodofs dual Canon BP battery slots to a V-mount battery plate. This allows you to use the much greater battery life of a V-mount battery to power your camera setup, keeping battery swaps to a minimum.

Features
• Shoot Longer: With Higher Capacity V-Mount Batteries
• Power Outputs: 2x P-Tap Port, 2x 2 Pin Ports, and 1x USB Port
• Custom Designed: For RED KOMODO
• Compatible: With any V-Mount Battery
• Sturdy: Aluminum and Steel Construction
