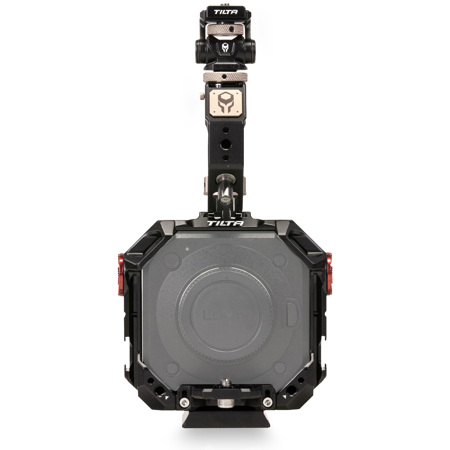

Tilta Panasonic BGH1/BS1H Kit B Black

This "full" camera cage provides protective armor for the Panasonic BGH1 camera.

It provides several 1/4"-20 and 3/8"-16 mounting points for mounting accessories. It also includes two rosettes as well as NATO rail receivers on each side as well as a cold shoe mount on top.

The base of the cage also provides several mounting holes when attaching your camera to gimbals to more easily fine tune the balance of your setup.

A variety of different baseplates can be attached to the bottom of the cage, allowing for various rod mounting and optional power supply configurations.

The quick release top handle, adjustable quick release top handle, and various optional side handles can be attached to the cage to provide for different ways to comfortably operate your camera setup.

This kit of the Panasonic BGH1 cage includes: the base Panasonic BGH1 cage, a lightweight quick release top handle, Arca and Manfrotto quick release baseplates, an adjustable cold shoe accessory mounting bracket, as well as an EF mount lens adapter support.

- Full Camera Cage -
This "full" camera cage provides protective armor for the Panasonic BGH1 camera. It provides several 1/4"-20 and 3/8"-16 mounting points for mounting accessories. It also includes two rosettes as well as NATO rail receivers on each side as well as a cold shoe mount on top. The base of the cage also provides several mounting holes when attaching your camera to gimbals to more easily fine tune the balance of your setup.

A variety of different baseplates can be attached to the bottom of the cage, allowing for various rod mounting and optional power supply configurations. The quick release top handle, adjustable quick release top handle, and various optional side handles can be attached to the cage to provide for different ways to comfortably operate your camera setup.

Top Plate
Reserved space for 1/4"-20 and 3/8"-16 threaded holes. Built-in cold shoe mount supports top handle, microphone, etc.

Side Arms
Built-in NATO slots on both side arms. Ready for mounting optional side handles.

Wooden Side Handle
Comfortable grip for operation. Compatible with side handle attachment. Available separately.

Ergonomically Designed Handle
Flexible angle. Ready for mounting accessories. Available separately.

Custom-Designed Advanced Focus Handle
360 Degree rotation allows for more flexible operation. Precisely control the focus with the pairing of a Tilta Nucleus Nano lens control motor.

ARRI Standard Rosette
Compatible with ARRI standard rosette accessories.

Bottom Plate
The bottom plate can be swapped out. It is compatible with the Tilta standard plate, ARCA quick release plate, and Manfrotto quick release plate.

Threaded Mounting Hole For Cable Clamp Attachment
Supports HDMI and USB cable clamp attachment. Perfect protection for the camera port and prevents data loss.

Built-In Port For Lens Adapter Support
Compatible with various lens adapters' heights. Provides ultimate support and security for your lenses.

15mm Single Rod Attachment Port
Compatible with 15mm rod. Provides mounting possibilities for various accessories such as a follow focus motor.

Features
• Protective Armor: For Panasonic BGH1 Minimizes Wear and Tear Over Time
• Mount Accessories: Via NATO Rail, Rosette, Cold Shoe, 1/4"-20 and 3/8"-16 Threads
• Compatible: With RED Komodo Baseplate and Quick Release Plates via 1/4"-20 Threads
• Expandable: Supports Many Other Tiltaing Accessories
• Lightweight & Durable: Aluminum and Steel Construction

- Tiltaing Lightweight Quick Release Top Handle -
This quick release top handle easily and securely attaches to the top of the various Tiltaing camera cages. This lightweight variant provides the same security as the standard Quick Release Top Handle, but is smaller in size making it the perfect solution for smaller camera builds.

It provides several 1/4"-20 and 3/8"-16 mounting points as well as one cold shoe mounting point on the front of the handle. A 15mm horizontal rod mount is built into the handle to allow for various rigging possibilities such as mounting an EVF or external monitor via a 15mm rod.

Note: Can only mount backwards on RED Komodo Top Plate

Features
• Universal Compatible with Most Tiltaing Cages
• Secure Connection via Cold Shoe and 1/4"-20 Screw
• EVF Support via a 15mm Rod Mount
• Mount Accessories via Cold Shoe, 1/4"-20 and 3/8"-16 Threads
• Sturdy Aluminum and Steel Construction

- Tiltaing Adjustable Cold Shoe Accessory Mounting Bracket -
This bracket attaches to your camera setup via a cold shoe mount and provides an adjustable 1/4"-20 mounting point to allow you to attach a variety of accessories such as a monitor or wireless video transmitter.

Features
• Secure Connection: Via Cold Shoe and 1/4"-20 Screw
• Mount Accessories: Such as External Monitors and Wireless Video Transmitters
• Adjustable: Tilt Axis Allows for Flexibility When Mounting
• Compatible: With Any Cage that Features a Cold Shoe Receiver
• Lightweight & Durable: Aluminum and Steel Construction

- Tiltaing Arca Quick Release Plate -
This Arca-Swiss compatible quick release plate attaches directly to the bottom of the Tiltaing camera cages to allow you to quickly and easily attach and detach from Arca-Swiss support systems.

Note: Not compatible with Tiltaing BMPCC 4K/6K cage

- Tiltaing Manfrotto Quick Release Plate -
This Manfrotto-compatible quick release plate attaches directly to the bottom of the Tiltaing camera cages to allow you to quickly and easily attach and detach from Manfrotto support systems.

Note: Not compatible with Tiltaing BMPCC 4K/6K cage

- EF Mount Lens Adapter Support -
This bracket attaches to the front of the Tiltaing camera cage for Panasonic BGH1 to provide support for a EF mount lens adapter.
