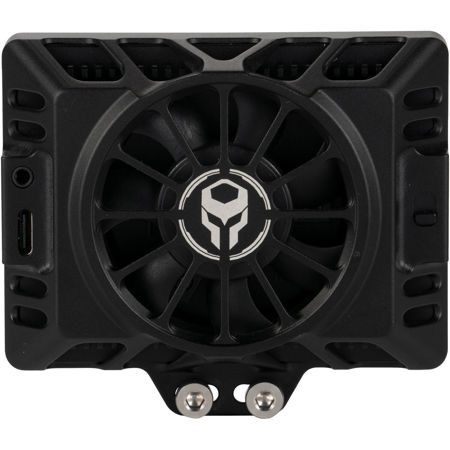

Tilta Cooling System - Black

Arm your camera with the Tiltaing Cooling System designed specifically for the Canon R5/R6. This Cooling System allows you to shoot longer with higher resolutions and faster frame rates without overheating restrictions limiting how long you can shoot.

The system seamlessly mounts to our Camera Cage for Canon R5/R6 and includes an additional mounting bracket, allowing you to use the system without a cage and remain as lightweight as possible. Pair it with the ARCA Baseplate for Cooling System to use it with existing equipment.

The system can be powered via any USB-C power source and features an EXT port for run stop cables. The module features two different fan speeds allowing for quieter cooling during takes and stronger cooling when needed. The highest fan speed reaches 5000 rpm and operates at a relatively quiet 30 db.

Full Range Cooling
Efficient & Stable
• High cooling efficiency
• Optimized cooling path
• Wide range coverage

6 Layers of Precise Modules
Innovative and Efficient Cooling
The precise and lighweight design provides support for your creative vision.

High Speed Fan, Low Noise Operation
• 7 Fan Blades
• 5000 RPM Run Speed
• 30 DB Low Noise

Features

Easy Access To Buttons
Durable and collapsible. Reserved space for the flip screen. Turn the cooling panel 90 Degree downwards to the bottom of the screen.

Compact
Custom engineered to fit the Canon R5 like a glove.

External Power Supply
Power the cooling system via a universal USB-C port. mVoltage range: 5V-12V. Amp range: 3A-5A.

EXT Port
EXT Port: Use Nano cable RS-WLC-T04-USBC to connect your camera with cooling system.
Type-C port: Use TCB-USBC2 to connect side handle.

Three Modes Of Operation
Choose between high or low speed modes to efficiently cool off your camera's electronics. Turn it off when you need quiet camera operation

Easy Assembly with The Camera Cage & Camera
Securely install it to the base of the camera cage. The standard baseplate is compatible with the camera body.

- ARCA Baseplate -
This ARCA Baseplate for our R5/R6 Cooling System attaches to the bottom of your camera body in order to mount the Cooling System directly to your camera. This allows you to use the Cooling System without a cage and remain as lightweight as possible. The bracket's articulating hinge lets you swivel the entire module away from the camera body, allowing you to flip the screen back into a closed position.

Features
• Articulating Hinge Allows You Easy Access to Your Camera Screen
• Cage Free Design Allows You to Mount the Cooling Module Directly to Your Camera
• Custom Designed for Canon R5/R6 Cooling Module
• Arca Ready Plate Compatible with All Standard ARCA Receivers
• Heavy Duty Aluminum Alloy & Stainless Steel Construction
