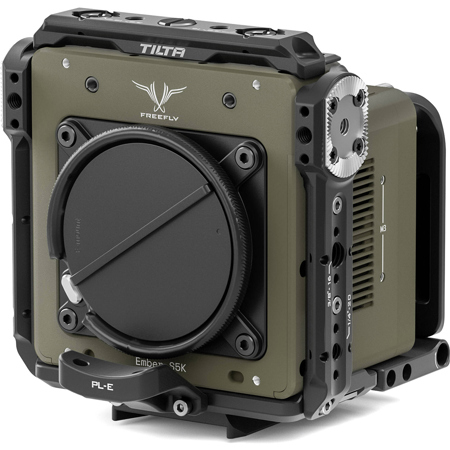

Tilta Full Camera Cage for Freefly Ember S5K, Black

Introducing the Full Camera Cage for Freefly Ember S5K.

This camera cage greatly expands mounting options for your Compact High Speed Camera as well as provides additional protection for the body via the cage's aluminum-alloy frame.

The cage features multiple mounting points including Arri Rosettes, NATO Rails on both sides, as well as 1/4"-20 and 3/8"-16 threads, both with locating points.

This cage compliments the Ember's unique design with a one of a kind backplate that connects to the camera body via two M3 screws and can swivel 90 degrees in order to free up access to the back of the camera when needed.

This Back Plate features a 15mm gap when connected to the camera in order to allow heat from the camera to dissipate easily.

This back plate is the perfect location to mount an accessory like our Tilta Pocket V-Mount Battery Plate V2 which is a great lightweight option for added a V-Mount Battery to your system.

This cage also includes Lens Adapter Support for both PL and EF Mounts that connects directly to the cage body without the need of using a baseplate or additional accessories.

The included Manfrotto Quick Release Plate is compatible with select Manfrotto Tripod Heads and will allow you to connect the system to our 15mm LWS Baseplate Type IV (Not Included).

Adaptable For Multiple Shooting Scenarios
The camera cage includes six parts: Top Plate, Left Side Arm, Right Side Arm, Rear Plate, Bottom Plate, and Baseplate. Each part is detachable and can be used independently.

Uninterrupted Heat Dissipation
A 15mm gap is provided between the camera and the cage's rear plate to ensure heat dissipation, allowing users to mount larger batteries without obstructing the camera's cooling fan.

Comprehensive Protection
The camera cage adopts a fully enclosed design, and the parts in contact with the camera are all contact surface are protected by silicone to prevent scraping and friction.

Flexible Adjustment
The rear plate comes with a rotational axis, which can rotate 90 degrees downward and free up two M3 thread on camera body.

Versatile Mounts Unleash Camera's Full Potential
It comes with multiple Arri Standard locating points, 1/4"-20 Threads, Arri Standard Rosette, NATO Rails. Ready to expand with accessories like, side handles, top handles, monitor cage, battery plates, articulating arms, and many more.

Note: Compatibility with Manfrotto Receivers is not guaranteed
