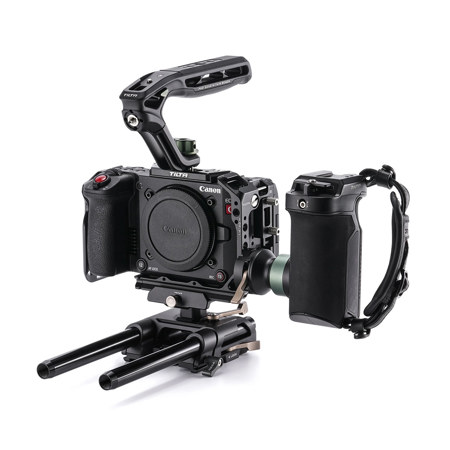

Tilta Full Camera Cage Pro Kit for Canon C50, Black

Introducing the Camera Cage for Canon C50 Pro Kit

The foundation of this kit is the full camera cage which is designed to provide additional protection for the Canon C50 Camera Body and allows users to build off of to support many video focused accessories.

Three points of contact create a secure connection and help maintain cage stability during high intensity and dynamic shooting environments while its modular design allows users to easily break the unit down into a half cage for smaller and lighter setups.

Arca Bottom Plate accommodates multiple configurations and fast transitions between support systems such as Tripods and Gimbals. 3/8"-16 and 1/4"-20 threads on the side arms make it easy to shoot vertically while locating points help keep accessories from twisting even with a single 1/4"-20.

Separate Cable Clamps for USB-C and HDMI can be tightened by hand and greatly improve cable security while the detachable Top Plate supports the original XLR Top Handle.

The Xeno Top Handle, which connects to the Top Plate via 1/4"-20 and improves handling via an elegant design with increased clearance. This handle features multiple mounting options for additional accessories including 1/4"-20 threads and a Cold Shoe Receiver, perfect for mounting an external monitor.

The Arca Height Adjustable 15mm LWS Baseplate allows users to adjust the height of their camera in relation to their rods which helps maintain the LWS 85mm standard between rods and the center of their sensor in order to ensure compatibility with a range of various accessories and camera bodies.

The Left Side PD Handle features a high-capacity internal battery, which delivers 50W PD output for cooling system and longer operating time. The release lever allows for quick and precise adjustments to the handle's angle which simplifies operating and creates a more efficient workflow.

Modular Design
• Flexible Full / Half Cage: Versatile expansion
• Detachable Top Plate: Clearance for the original XLR audio handle

Secure Installation
Three-point locking mechanism provides secure installation and maintains stability during high-intensity or dynamic shooting.

Multiple Configurations with Easy Expansion
• ARCA Base for Quick Transitions
• Horizontal & Vertical Shooting Support - Features 3/8"-16 and 1/4"-20 threads on the side for secure vertical shooting
• Comprehensive Mounting Points

Accessories

Expandable
XLR audio expansion module for attaching lights, monitors, and other accessories.

Stable Lens Adapter Mounting
PL-RF Mount Fastener Used to secure the PL-RF lens adapter.

Note: Compatible with C50/C80/C400 cameras.

Secured Cable Clamp
Hand-tightened cable clamp for securing HDMI and USB-C cables to ensure reliable data transmission.

V Mount Battery Adapter
The Baseplate-Free design enables a more lightweight power solution.

- Full Camera Cage -
Introducing the Full Camera Cage for Canon C50

The camera cage is designed to provide additional protection for the Canon C50 Camera Body and serves as a foundation to build from to support many video focused accessories. Three points of contact create a secure connection and help maintain cage stability during high intensity and dynamic shooting environments.

Its modular design allows users to easily break the unit down into a half cage for smaller and lighter setups. Arca Bottom Plate accommodates multiple configurations and fast transitions between support systems such as Tripods and Gimbals. 3/8"-16 and 1/4"-20 threads on the side arms make it easy to shoot vertically while locating points help keep accessories from twisting even with a single 1/4"-20.

Separate Cable Clamps for USB-C and HDMI can be tightened by hand and greatly improve cable security. The detachable Top Plate supports the original XLR Top Handle. The optional PL-RF Mount Fastener can be used to secure a PL-RF Lens Mount Adapter and is also compatible with the C400 and C80.

Features
• Custom Designed for the Canon C50 Camera Body
• Mount Accessories via 3/8"-16 and 1/4"-20 Threads with Locating Points
• Detachable Top Plate Supports the Original XLR Top Handle
• Vertical Ready Design via Mounting Points on Each Side Arm
• Cable Clamps Utilize Thumb Screws for Improved Cable Security

- Top Handle with 1/4"-20 Locating Screw -
The Xeno Top Handle features several different mounting options allowing it to be mounted to a variety of camera cages and systems.

The handle itself features a large silicone padded grip which makes operating or handling more comfortable and secure. The handle features numerous mounting points for additional accessories such as 1/4"-20 and 3/8"-16 threads with locating points. The handle also features a Cold Shoe Receiver with a Safety Release Pin as well as an Arri Standard Locating Thread.

Comfortable Grip
The grip operating comfort is designed with a curved handle, improving it uses anti-slip silicone to increase friction, making it more secure creating the a better handheld experience.

Easily Adapt To Multiple Scenarios
Different mounting options make it easy to adapt to different cages and systems. Compatible with many Tilta Camera Cages and accessories.

Works With A Wide Range Of Camera Cage Mounts
Choose the Tilta Xeno Handle in the mounting type that works the best for your camera or camera cage.

Four Mounting Options For Ultimate Flexibility
Four options available to accommodate different configurations.

Easy Expansion - Flexible Configurations
The handle features 1/4"-20 Threads with Locating Points. Making it convenient for mounting additional accessories.

Features
• Multiple Mount Options Compatible for Variety of Rigs
• Silicone Grip Creates a More Secure Handheld Operating Experience
• Extended Grip Provides Comfortable Handling via Updated Design with Improved Clearance
• Durable Aluminum Alloy and Silicone Construction

- 15mm LWS Arca Height Adjustable Baseplate -
Introducing the Arca Height Adjustable 15mm LWS Baseplate. This 15mm Baseplate allows users to utilize 15mm rods (not included) in order to mount various accessories such as matte boxes or follow focus systems.

Unique to this unit is the adjustable height design which allows users to adjust the height of their camera in relation to their rods. This means that users can maintain the LWS 85mm standard between their rods and the center of their sensor in order to ensure compatibility with a range of various accessories and camera bodies.

The distance from the center of the rods to the Arca receiver ranges from 18mm to 38mm and is compatible with DJI standard Arca plates. The bottom of the baseplate is compatible with Tilta Standard Dovetails and also features 1/4"-20 threads for mounting to tripods and other support systems. We recommend using this baseplate with camera systems that are under 10lbs.

Designed to accommodate different heights
The adjustable height design is compatible with most mirrorless camera bases or full/half cages, adhering to the LWS 85mm standard, and is perfect for professional users.

Flexible Range
The distance from the center of the rods to the Arca receiver ranges from 18mm to 38mm.

Arca Quick Release
Compatible with DJI standard Arca plate, Tilta standard dovetail plate, and 15mm rods.

Quick Lock Design
Easy to ensure the security of your equipment.

Features
• Height Adjustable Design Ensures Perfect LWS Alignment with Various Accessories
• Arca Receiver Compatible with DJI Standard ARCA Plates and Many Tilta Camera Cages
• 15mm Rod Support Accommodates Rod Based Accessories Like Matte Boxes and Follow Focus Systems
• Dovetail Support Slides and Locks Securely onto Tilta Standard Dovetails
• Safety Pin Provides Additional Security for Your Camera System

- Left Side PD Handle with Run/Stop Type VIII -
This next generation Side Handle is the ultimate option for powering various cameras and accessories via an internal battery with advanced power outputs. Featuring a high-capacity internal battery, this handle delivers 60W PD output for longer operating time, up to 170% longer than the average camera's internal battery.

The handle features Dual USB-C ports, one with PD quick charging protocol which allows the handle to charge or power a device with the maximum amount of power that the specific device can support. The release lever allows for quick and precise adjustments to the handle's angle which simplifies operating and creates a more efficient workflow.

The handle comes equipped with multiple mounting options, including a cold shoe receiver and a 1/4"-20 thread for mounting accessories like small articulating arms or external monitors. The handle also features a wrist strap for added stability and a standard USB-C port for RUN/STOP control.

The high-grade metal construction and non-slip coverage provide increased security and comfortable handling. Take your camera rig to the next level with the Tilta Left Side PD Handle, a powerful and ergonomic camera accessory designed to provide a seamless shooting experience.
