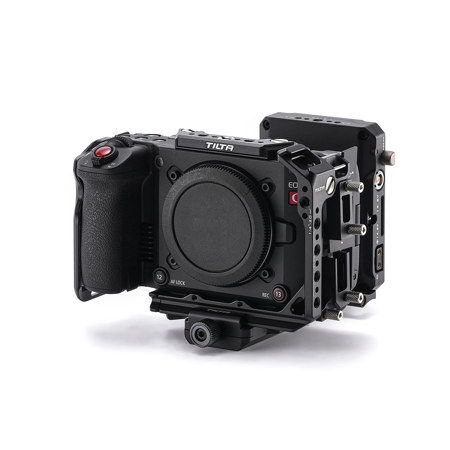

Tilta Full Camera Cage Power Kit for Canon C50, Black

Introducing the Camera Cage for Canon C50 Power Kit

The foundation of this kit is the full camera cage, which is designed to provide additional protection for the Canon C50 Camera Body and serves as a foundation to build from. Three points of contact create a secure connection and help maintain cage stability during high intensity and dynamic shooting environments.

Its modular design allows users to easily break the unit down into a half cage for smaller and lighter setups and the Arca Bottom Plate accommodates multiple configurations and fast transitions between support systems such as Tripods and Gimbals.

3/8"-16 and 1/4"-20 threads on the side arms make it easy to shoot vertically while locating points help keep accessories from twisting even with a single 1/4"-20 while separate Cable Clamps for USB-C and HDMI can be tightened by hand and greatly improve cable security.

Included in this kit is the Adjustable ARCA Receiver and Mini PD Battery Plate which provides a unique and lightweight option to mount a battery plate without traditional baseplates and 15mm rods. The Receiver can extend to move the battery plate closer or farther from the camera body while a swivel hinge also allows users to adjust the angle of their battery relative to their camera body.

The battery plate included with the kit allows users to extend the operating time of their camera and accessories via larger capacity V-Mount batteries and features multiple power output options such as a 60W PD USB-C, a P-Tap, and a 2-Pin Lemo connection.

Unique to this plate are the integrated strap slots which allows users to connect an included security strap to their V-Mount battery which limits the possibility of accidental disconnection. The battery plate also features 1/4"-20 and M4 threads on the top, allowing the unit to be easily mounted in unique ways via additional adapters or articulating arms. P-Tap/2 Pin Lemo Ports provide 20V/3A.

Modular Design
• Flexible Full / Half Cage: Versatile expansion
• Detachable Top Plate: Clearance for the original XLR audio handle

Secure Installation
Three-point locking mechanism provides secure installation and maintains stability during high-intensity or dynamic shooting.

Multiple Configurations with Easy Expansion
• ARCA Base for Quick Transitions
• Horizontal & Vertical Shooting Support - Features 3/8"-16 and 1/4"-20 threads on the side for secure vertical shooting
• Comprehensive Mounting Points

Accessories

Expandable
XLR audio expansion module for attaching lights, monitors, and other accessories.

Stable Lens Adapter Mounting
PL-RF Mount Fastener Used to secure the PL-RF lens adapter.

Note: Compatible with C50/C80/C400 cameras.

Secured Cable Clamp
Hand-tightened cable clamp for securing HDMI and USB-C cables to ensure reliable data transmission.

V Mount Battery Adapter
The Baseplate-Free design enables a more lightweight power solution.

- Full Camera Cage -
Introducing the Full Camera Cage for Canon C50

The camera cage is designed to provide additional protection for the Canon C50 Camera Body and serves as a foundation to build from to support many video focused accessories. Three points of contact create a secure connection and help maintain cage stability during high intensity and dynamic shooting environments.

Its modular design allows users to easily break the unit down into a half cage for smaller and lighter setups. Arca Bottom Plate accommodates multiple configurations and fast transitions between support systems such as Tripods and Gimbals. 3/8"-16 and 1/4"-20 threads on the side arms make it easy to shoot vertically while locating points help keep accessories from twisting even with a single 1/4"-20.

Separate Cable Clamps for USB-C and HDMI can be tightened by hand and greatly improve cable security. The detachable Top Plate supports the original XLR Top Handle, while the optional Top Handle Extension adds a Cold Shoe Receiver and NATO Rail. The optional PL-RF Mount Fastener can be used to secure a PL-RF Lens Mount Adapter and is also compatible with the C400 and C80.

Features
• Custom Designed for the Canon C50 Camera Body
• Mount Accessories via 3/8"-16 and 1/4"-20 Threads with Locating Points
• Detachable Top Plate Supports the Original XLR Top Handle
• Vertical Ready Design via Mounting Points on Each Side Arm
• Cable Clamps Utilize Thumb Screws for Improved Cable Security

- Adjustable ARCA Receiver -
Introducing the Tilta Mini PD V Mount Battery Plate with Adjustable ARCA Receiver

The Adjustable ARCA Receiver is a unique and lightweight option to mount a battery plate to a camera without traditional baseplates and 15mm rods. Once attached via a DJI standard ARCA Quick Release Plate or compatible camera cage, the Receiver can extend to move the battery plate closer or farther from the camera body. A swivel hinge also allows users to adjust the angle of their battery relative to their camera body.

The battery plate included with the Battery Plate + Receiver Kit allows users to extend the operating time of their camera and accessories via larger capacity V-Mount batteries and features multiple power output options such as a 60W PD USB-C, a P-Tap, and a 2-Pin Lemo connection.

Unique to this plate are the integrated strap slots which allows users to connect an included security strap to their V-Mount battery which limits the possibility of accidental disconnection. The battery plate also features 1/4"-20 and M4 threads on the top, allowing the unit to be easily mounted in unique ways via additional adapters or articulating arms. P-Tap/2 Pin Lemo Ports provide 20V/3A.

V-Mount Connection
With Power Output Ports for Accessories.

Fast Transitions
Quick release and attachment with Arca-Swiss compatibility.

Arca Quick-Release Plate
Non-slip pad for durability and scratch resistance. Two-points of contact for anti-twist stability.

Flexible Form, Compact Design
180 Degree foldable hinge for easy storage.

Balanced Center of Gravity Stable shooting for long sessions.
Stable shooting for long sessions.

Fully Compatible Connectivity
Perfect for various devices and systems.

Precise Balance Control
Fine-tune your camera's balance with a 37mm adjustable sliding plate, featuring a secure locking lever for stable and precise positioning.

Upgrade Your Tilta Battery Plate
Pair it with the compatible models. Mini PD V Mount Battery Plat, Mini V-Mount Battery Plate, Pocket V-Mount Battery Plate.

Compatible With Mainstream Mirrorless And DSLR Cameras
Sony/Panasonic/Leica/Canon/Nikon/Fujifilm (With Tilta Camera Cage or Standard Arca Plate).

Lightweight Mounting
Does not require a Baseplate or 15mm Rods - Easy installation. A new option for compact shooting or quick transitions.

V-mount Power Plate
Multiple Power Ports and Mounting Points.

Space-saving Storage
Paired with a mini V-Mount power plate, the folded size is only 4 x 3.3 x 1.2" (10.15 x 8.4 x 2.92cm).

Screen-friendly Design
When adjusted, it allows users to easily access their camera screen without interference.

Features
• Arca Receiver Compatible with DJI ARCA Quick Release Plate and Many Tilta Camera Cages
• Adjustable Swivel Allows Users to Adjust the Angle of the Battery Plate up to 180 Degrees
• Extended Power for Cameras and Accessories via Higher Capacity V-Mount Batteries
• Extendable Design Allows Users to Adjust the Distance of the Battery Plate
• Power Outputs Include P-Tap, USB-C and 2-Pin Lemo Connections

- Mini PD V Mount Battery Plate -
Introducing the Tilta Mini PD V Mount Battery Plate

This battery plate allows users to extend the operating time of their camera and accessories via larger capacity V-Mount batteries. This plate features multiple power output options such as a 60W PD USB-C, a P-Tap, and a 2-Pin Lemo connection. Unique to this plate are the integrated strap slots which allows users to connect an included security strap to their V-Mount battery.

This limits the possibility of accidental disconnection, which is especially useful when rigging the camera to support systems such as car mounts. Included with the battery plate is a dual rod adapter which makes the unit easy to integrate into systems that utilize 15mm LWS rods. The battery plate also features 1/4"-20 and M4 threads on the top, allowing the unit to be easily mounted in unique ways via additional adapters or articulating arms. P-Tap/2 Pin Lemo Ports provide 20V/3A.

Versatile Power Solution For Your Camera
Extend your camera and accessories operating time with options of USB-C, P-Tap, and 2-pin LEMO.

Includes Straps To Secure The Battery
It comes with two strap slots, allowing the installation of security straps without affecting the battery installation or access to ports.

Additional Mounting Points For Convenient Installation
The battery plate features 1/4"-20 and M4 threads on the top, allowing connection to various adapters.

Works with 15mm LWS Rod Mount
It can be mounted to a dual rod adapter, allowing installation on rods.

Features
• Extended Power for Cameras and Accessories via Higher Capacity V-Mount Batteries
• Power Outputs Include P-Tap, USB-C and 2-Pin Lemo Connections
• Security Strap Features a Unique Way to Further Secure V-Mount Batteries
• Mounting Points on the Top of the Plate Improve Sp
