Tilta T-BOX Video Converter/Hot-Swap Power Supply System for RED/ARRI/Sony Cameras (19mm), V-Mount

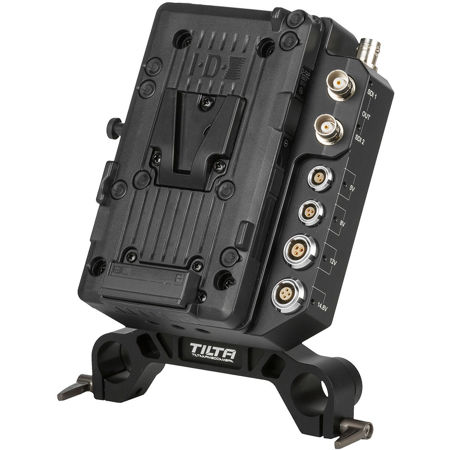

Designed specifically for use with high-end cameras, the Tilta TT-0501-V is a power and video output solution which solves numerous issues present when operating a camera rig. The TT-0501-V takes the power from a standard V-Mont battery (sold separately) and routes it to a number of different LEMO outputs and a high wattage D-TAP (50W Max) output. Available LEMO outputs include a 2-pin 5V, 3-pin 8V, 3-pin 12V, and a 14.8V 4-pin output.

For RED operators a four pin LEMO cable is provided to attach the TT-050-V to their cameras power input. To assist in proper video routing, TT-0501-V has the capability of splitting a HD/SDI signal into two HD/SDI outputs; providing one output for a preview monitor and one for a recording device or other HD/SDI receiving equipment. A unique 19mm dual-rod mount, with an articulating mounting arm, permits mounting the TT-0501-V in a convenient and easily accessible location.
