Ikan VK7i-1 7" LCD Field Monitor with Canon 900, Sony L, Panasonic D54 Battery Plates, 1280x800 Resolution, RGB Adjust, Peaking, False Color & Clip Guides

Updated!
The VK7i now employs an HD IPS (In-plane Switching) LCD panel, giving the monitor 1280 x 800 resolution, wider viewing angles and exceptional color rendition. An upgraded feature set includes on-screen tally and HDMI loop-through, plus the original VK7 features such as; RGB adjust, Peaking, False Color, DSLR Scaling and Clip Guides. The VK7i is easy to power in the field with multiple battery plate options from DV battery, DSLR or Pro battery.

Superb Viewing Angles
The VK7i has an IPS Panel with a resolution of 1280x800(720p+). In-Plane Switching provides the monitor with wider viewing angles and better color reproduction than standard LCD panels.

On-Screen Tally
On-Screen Tally System. The VK7i has an integrated tally system front and rear, but instead of using lights on the front chassis of the monitor, the front tally is displayed on screen..

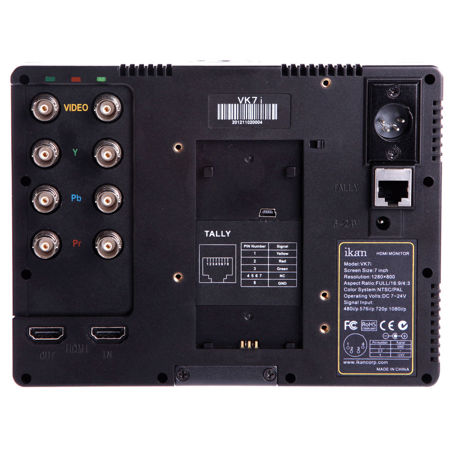

Input / Output
A variety of inputs are all complimented with lossless outputs. The monitor includes Composite (BNC), Component HD and SD (BNC) and HDMI ports.

Peaking
The VK7i is equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

False Color
The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time. By adjusting the camera's Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.

Movable pixel-to-pixel
The VK7i's 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

Clip Guides
The VK7i offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area.

Additional Features
• 1280 x 800 IPS LCD Panel
• HDMI, Component & Composite I/O
• RGB Adjust, Peaking, False Color & Clip Guides
• Tally System
• DSLR Scaling
• Includes: Canon 900, Sony L, Panasonic D54 Battery Plates
• Video Inputs: HDMI, Composite, Component
