Ikan 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor Deluxe Kit, V2

SKU: IAVXF7V2DK MFR: VXF7-V2-DK
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 7" Ikan on-camera monitor's vibrant 1920x1200 resolution.
  • Achieve accurate focus using the 4K HDMI field monitor, perfect for professional video shoots.
  • Enjoy flexible connectivity with 3G-SDI inputs/outputs on this reliable video monitor.
  • The included sunhood ensures optimal viewing on the Ikan camera monitor, even in bright conditions.
  • Power your shoots with the included battery and charger for extended on-location video monitoring.
  • Lightweight aluminum build for field use, this monitor offers durability and ergonomic comfort.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ikan VXF7-V2 Specifications

  • Supported Video Signal

    HDMI:
    720 x 480i & 720 x 480p@59.94, 60Hz
    720 x 576i & 720 x 576p@50Hz
    1280 x 720p@50, 59.94, 60Hz
    1920 x 1080i@50, 59.94, 60Hz
    1920 x 1080PsF@24, 25, 29.97, 30Hz
    1920 x 1080p@23.97, 24, 25, 29.97, 30, 50, 59.94,6 0Hz
    3840 x 2160p@24, 25, 30Hz
    4096 x 2160P@24Hz

  • Supported Video Signal (Contd.)

    3G-SDI:
    720 x 480i@59.94, 60Hz
    720 x 576i@50Hz
    1280 x 720P@ 50, 59.94, 60Hz
    1920 x 1080i@ 50, 59.94, 60Hz
    1920 x 1080psf@ 24, 25, 29.97, 30Hz
    1920 x 1080p @23.93, 24, 25, 29.97, 30, 50, 59.94, 60Hz

  • Screen Size

    7" (17.8cm)

  • Aspect Ratio

    16:10

  • Resolution

    1920 x 1200

  • Backlight

    LED

  • Brightness

    450 cd/sq. m

  • Build Material

    Aluminum

  • Color Depth

    16.7 Million

  • Color System

    PAL/NTSC/SECAM (Auto-Detected)

  • Contrast Ratio

    800:1

  • Input Voltage

    DC 7V - 24V

  • Inputs

    3G-SDI, HDMI, RJ45 (Tally)

  • Outputs

    3G-SDI, HDMI, 3.5mm Audio Port

  • Operating Temperature

    0 deg C - 50 deg C (32 deg F -122 deg F)

  • Power Consumption

    9W

  • Viewing Angle

    178 degrees horizontal/178 degrees vertical

  • Battery Info

    Required, included

  • Battery Material

    Lithium Ion

  • Battery Quantity

    1

  • Battery Type

    -

  • Dimensions

    7.36 x 5.6 x 1.3" (186.94 x 142.2 x 33mm)

  • Weight

    1.5 lbs (680g)

  • UPC Code

    847983032334

About Ikan VXF7-V2

Take your videography to the next level with the 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor Deluxe Kit, V2. This high-quality, durable field monitor is designed to deliver clear, detailed images with its full HD 1920 x 1200 IPS LCD panel. It's a versatile tool, compatible with a wide range of cameras and devices thanks to its 3G HD-SDI and HDMI interfaces.

The VXF7-V2 is more than just a monitor; it's a comprehensive tool for professionals. It comes equipped with advanced features like waveforms, peaking, false color, zooming, pixel-to-pixel mapping, and histogram levels. These features ensure precision and accuracy, making it an indispensable asset in any production environment.

One of the standout features of this user-friendly field monitor is its Tally Light Indicators. With a tally connector and three tally lights on both the front and back, this monitor seamlessly integrates into a switched multi-camera production. The tally connector pin key is easily accessible by removing the interchangeable battery plate.

Designed with professionals in mind, the VXF7-V2 boasts an ergonomic design and intuitive button layout for ease of use in the field. Four knobs on the front panel make it easy to adjust settings such as brightness, contrast, and color. The monitor also features tally lights on both the front and back, and a locking power input to ensure a secure connection and uninterrupted power supply.

The VXF7-V2 is not only portable but also rugged and strong. It updates the classic VXF7 design with aluminum for increased durability. All four 1/4-20" threads are outfitted to work with anti-rotation locating pins such as ARRI locating pins, enhancing its stability and reliability. This deluxe kit also includes a carrying case and other accessories, making it a complete solution for your on-camera monitoring needs.

Ikan VXF7-V2 Features

  • Deluxe kit additionally includes carrying case, battery, battery charger, HDMI to micro HDMI, HDMI to mini HDMI, sdi cable
  • 1920 x 1200 IPS panel
  • Three tally indicator LEDs on the rear and front on-screen display (green, red, yellow)
  • Waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer
  • Fully aluminum for durability
  • Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
  • 4K support via HDMI
  • 3G-SDI Input with loop through
  • HDMI Input with loop through
  • Supports L Series type battery

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior clarity with this 7" Ikan on-camera monitor's vibrant 1920x1200 resolution.
  • Achieve accurate focus using the 4K HDMI field monitor, perfect for professional video shoots.
  • Enjoy flexible connectivity with 3G-SDI inputs/outputs on this reliable video monitor.
  • The included sunhood ensures optimal viewing on the Ikan camera monitor, even in bright conditions.
  • Power your shoots with the included battery and charger for extended on-location video monitoring.
  • Lightweight aluminum build for field use, this monitor offers durability and ergonomic comfort.

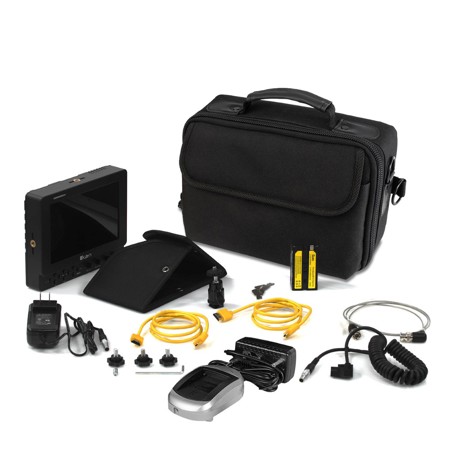

What's in the box:

  • 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor
  • Sunhood
  • Power Adapter
  • D-Tap Cable
  • Shoe Mount
  • Carrying Case
  • IBS-750 Battery
  • L Series Battery Charger
  • Slim 1.5' HDMI Cable (Mini to Standard)
  • Slim 1.5' HDMI Cable (Micro to Standard)
  • Slim 1.5' SDI Cable
  • Ikan 1 Year Limited Warranty
