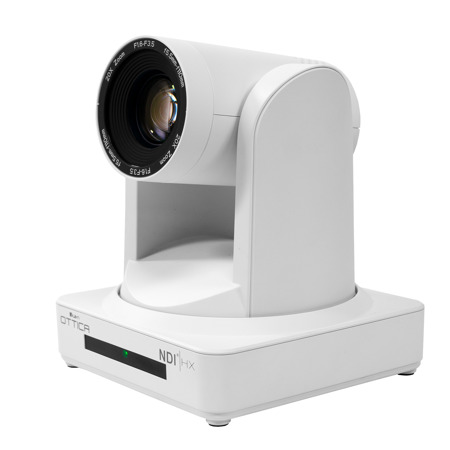

Ikan OTTICA Bundle with 2x Full HD NDI|HX 20x PTZ Video Camera and IP Controller V2, White

SKU: IAWH2PTZ1CV2 MFR: OTTICA-WH-2PTZ-1C-V2
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the Full HD PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan, tilt, and zoom with the PTZ camera's step-driving motor mechanism.
  • Control up to 5 PTZ cameras using the included IP controller, streamlining your workflow.
  • Achieve professional-grade video with 20x optical zoom, capturing every detail clearly.
  • Seamlessly integrate with NDI|HX for high-quality, low-latency video over your network.
  • Enjoy versatile connectivity with HDMI, SDI, and LAN interfaces on this PTZ video camera.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan OTTICA V2 Specifications

PTZ Camera

PTZ Camera

Jump to...
  • Color

    White

  • AV

    F1.6 - F3.5

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    On/Off

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Country of Origin

    China

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16:9, 2.07 megapixel

  • Focusing

    Input Audio Format

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/- 10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    20x f=5.5-110mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 - 60 Degree/sec

  • Pan Rotation

    +/- 170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / Controller: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/- 10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree/sec, Tilt: 30 Degree/sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60fp

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 - 140 Degree F (-10 - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1 - 30 Degree/sec

  • Tilt Rotation

    30 - +90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    3.3-54.7 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 - 122 Degree F (-10 - 50 Degree C)

Controller V2

Jump to...
  • Controllable Cameras

    5

  • Communication Protocol

    VISCA, PELCO P/D, UDP

  • Number of LED Displays

    4 Color LED Display Screens

  • Number of Camera Channels

    5

  • Variable Knobs

    4

  • Joystick

    2-Axis

  • Zoom Mode

    Tele-Wide Bridge Keys

  • Buttons

    17 Silicon Buttons

  • Presets Short Keys

    5 Presets or Max 10 Presets for selection per Each Channel

  • Focus Modes

    Auto/ Manual/ OPT

  • Pan/Tilt Rotation Speed

    7-Level Adjustment

  • Zoom In/Out Speed

    7-Level Adjustment

  • Baud Rate

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps

  • Data Bits

    8 Bit

  • Stop Bit

    1 Bit

  • Parity Bit

    None

  • Internet Protocol

    UDP / IP VISCA

  • Rated Voltage

    DC 12V

  • Rated Current

    0.3A max

  • Max Power Consumption

    3.6W

  • Password Privacy Protection

    Yes

  • Security Lock

    Kingston's Security Lock

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - +60 Degree C)

  • Working Environment

    Indoors

  • RS422/RS485 Interface

    Phoenix Contact 4 pin 3.81mm Terminal

  • RS232C Interface

    DB9 Male Interface

  • LAN Interface

    RJ45 Female Interface

  • Power Supply

    12V 100-240VAC 50-60Hz

  • Firmware Upgrade

    Via Micro USB

  • Dimensions (L x W x H)

    9.6 x 6.4 x 1.8" (244 x 164 x 48mm)

  • Weight

    3.08 lbs (1.40kg)

  • UPC Code

    847983035724

About Ikan OTTICA V2

With the OTTICA Bundle, featuring 2x Full HD NDI|HX 20x PTZ Video Cameras and an IP Controller V2, you can establish a comprehensive multi-camera video production setup. This bundle is designed to seamlessly integrate into various environments such as houses of worship, broadcast studios, educational institutions, medical facilities, sports venues, and live production settings.

The OTTICA PTZ Video Camera, manufactured by Ikan, is equipped with a 1/2.8" CMOS sensor and a 5.5-110mm varifocal lens. This powerful combination enables the camera to capture high-definition videos at a maximum resolution of 1080p at 60fps. The camera's connectivity options include POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in, providing you with a wide range of integration possibilities.

The camera's step drive motor mechanism and motor drive controller ensure smooth and noiseless PTZ operation. It supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats, optimizing video quality even under bandwidth constraints. The NDI|HX feature reduces the required bandwidth to approximately 1/10th of full-bandwidth NDI, enhancing the camera's compatibility with various network options.

The OTTICA camera employs a high-quality CMOS sensor, supporting resolutions up to 1920 x1080 with frame rates up to 60 fps. The camera's 5.5-110mm f/1.6-3.5 varifocal lens offers a viewing angle ranging from 3.3 Degree to 54.7 Degree and provides 20x optical zoom. The camera's autofocus algorithm ensures fast, accurate, and stable focusing performance.

The OTTICA camera's advanced 2D/3D noise reduction technology reduces noise while maintaining image sharpness. The camera also supports a low-power sleep/wake up function and an RS-232 cascade function for easy installation. You can program up to 255 preset camera positions (10 presets by IR remote).

The OTTICA IP PTZ Camera Controller V2 allows you to control up to 5 cameras using either IP or analog control protocols. The controller features a high-quality 2-axis joystick for smooth control of pan & tilt, and a zoom rocker. Two separate knobs allow for control of Focus & PTZ/Focus Speed. The controller also enables quick camera parameter adjustment through its large LED screen and three smaller LED screens.

The bundle includes an OTTICA PTZ Camera Wall Mount that supports the OTTICA camera using a 1/4"-20 screw on the bottom, providing a sturdy long-term mounting solution. The OTTICA cameras do not require the additional purchase of an NDI License to use and/or operate. Please note, the OTTICA camera is NOT compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps, but is compatible with other video switchers including Black Magic's ATEM Mini & ATEM Mini Pro.

Ikan OTTICA V2 Features

  • Bundle Includes 2 NDI|HX PTZ Cameras & 1 PTZ Controller
  • NDI|HX2 Compatibility with POE (Power Over Ethernet)
  • 1/2.8" CMOS Sensor/1080/60P Resolution/Frame Rate
  • Silent PTZ Motor Mechanism
  • 5.5-110mm Varifocal Lens with 20x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • NDI HX License included with Purchase
  • Supports IP VISCA, Serial Port VISCA, PELCO-D/P Protocols Simultaneously
  • Control up to 5 Cameras w/RJ45, RS422, RS232, or RS485
  • 3 Knobs Control Camera Parameters Displayed on Designated LED Screens
  • Recommended IP Scanning Software

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with the Full HD PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan, tilt, and zoom with the PTZ camera's step-driving motor mechanism.
  • Control up to 5 PTZ cameras using the included IP controller, streamlining your workflow.
  • Achieve professional-grade video with 20x optical zoom, capturing every detail clearly.
  • Seamlessly integrate with NDI|HX for high-quality, low-latency video over your network.
  • Enjoy versatile connectivity with HDMI, SDI, and LAN interfaces on this PTZ video camera.

What's in the box:

  • 2x Ikan OTTICA Full HD NDI|HX 20x PTZ Video Camera (White)
  • IP PTZ Camera Controller V2
  • 2x Lens Cap
  • 2x Camera Power Adapter
  • 2x RS232 Cable
  • 2x Camera IR Remote Controller
  • 2x Camera Wall Mounting Bracket
  • 2x Mounting Screws
  • 2x RS485 Terminal Connector
  • 2x Cascade Cable
  • Phoenix Contact 4-Pin 3.81mm Terminal
  • Controller Power Adapter
  • User Manual
  • Ikan 1 Year Limited Warranty
