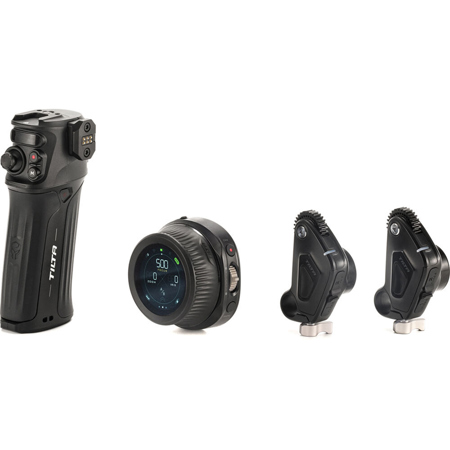

Tilta Nucleus Nano II Wireless Lens Control System with Control Handle Kit

Become a master of precision with the Nucleus Nano II Wireless Lens Control System, a must-have tool for filmmakers who demand exact control over their lenses. This advanced system features an enhanced Hand Wheel that allows users to adjust focus using the Main Dial. The newly designed Control Rocker smoothly manages Zoom or Iris functions via a dampened rocker, ideal for seamless zoom transitions.

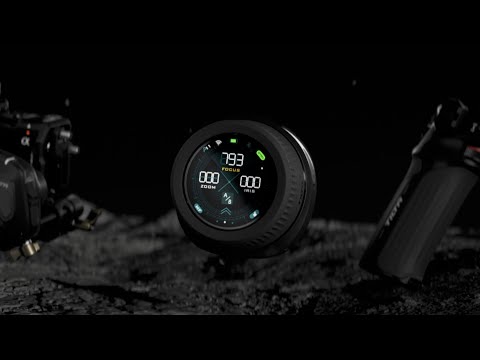

The Nucleus Nano II stands out with its 1.6" Circular Touch Screen Display, making system navigation a breeze. The user-friendly interface provides swift access to a range of advanced features, including dedicated pages for lens mapping and camera control functions.

This innovative system allows users to wirelessly adjust camera settings via Wi-Fi, Bluetooth, and the motor's USB-C port. It is compatible with leading camera systems such as Canon, Sony, and Black Magic Design and can manage up to 4 motors for Focus, Iris, Zoom, and Mirage VND when used with the included Control Handle.

The Control Handle, powered by a Sony L-Series Battery (F550/570), can also supply power to the Nucleus Nano II Hand Wheel for extended battery life. It features a focus dial on the front that can control both Nucleus Series Motors and the DJI Focus Motor via the optional Wireless Receiver Module (not included). This module can also be used to wirelessly operate the DJI RS2 or RS3 Pro.

The handle is equipped with a 1/4"-20 thread with locating points, perfect for mounting the Right Angle Rosette Adapter and a cold shoe receiver. When used with our optional Cold Shoe Mount and the Hand Wheel, it creates the perfect focus pulling station.

The Nucleus Nano II is our most compatible system to date, featuring compatibility with DJI RS2, RS3 Pro, DJI Focus Motors, Nucleus M (excluding the Hand Grips), and the previous generation of Nucleus Nano. This ensures a smooth workflow for users who already utilize previous iterations of the Nucleus Ecosystem.

The lens mapping control screen offers real-time focus distance information, allowing you to stay informed and in control of every frame without relying on physically marking a focus disc. An internal battery powered by USB-C offers up to 20 hours of continuous power, depending on usage.

The Nano II is equipped with a high-performance motor that delivers five times the torque of its predecessor, with convenient USB-C power input and output ports. This makes it perfect for chaining together multiple motors from a single power source.

Elevate your filmmaking experience with the Nucleus Nano II - Wireless Lens Control System. Gain precise control over your lenses, enjoy an intuitive user interface, and experience unmatched compatibility with industry-leading gear.

Please note, some features listed above are NOT fully functional in the current firmware. Lens Mapping, and other features are currently not available and will be implemented with future firmware updates. Camera Control functionality is only compatible with select cameras at this time. The Nucleus M Left and Right Hand Grips as well as the Advanced Side Focus Handles are NOT currently compatible with the Nano II Motor and will require additional hardware to be purchased separately. Features such as DJI Ronin/ DJI Focus Motor Compatibility are not yet available and will also require additional hardware purchased separately.

Note: Canon and Sony cameras are currently only compatible via USB-C PD Cables and Black Magic Design cameras are only compatible via Bluetooth. When using Lens Mount Adapters, Nano II Bluetooth functionality will only be possible when using officially supported lenses for the specific adapter. The Control Handle NATO Mount is only intended for the Nano II Hand Wheel. Do not connect other accessories via this NATO mount or you will risk damaging the contact pins.

The Nucleus Nano II Wireless Lens Control System is a high-performance tool that offers five times the torque of the Nucleus N, auto-adjustable torque design, high-efficiency cooling system, three main displays for camera control, focus control & motor control, touch control for intuitive interaction, improved power supply with upgraded USB-C port, efficient power management, multi-channel communication for maximum 4-channel control, and high compatibility with Tilta wireless lens control systems and the DJI Ronin lens control motor.

Please note, we recommend using only Sony L-Series F550 for the Control Handle. Compatibility with other brands is not guaranteed.
