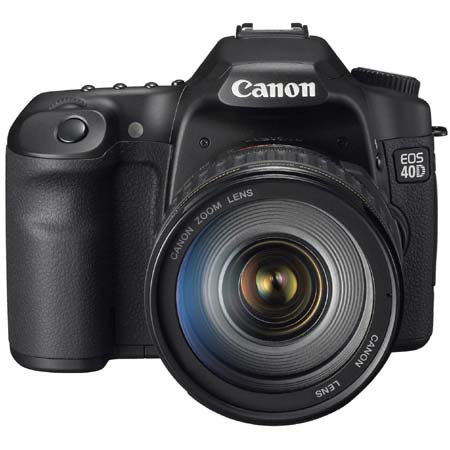

Canon EOS-40D Digital SLR Camera Body Kit with EF-S 17-85mm f/4-5.6 IS USM Lens - EF 70-300mm f/4-5.6 IS USM Lens - Canon BP-511A Li-on Rechargeable Battery - Canon 200-DG Digital Gadget Bag

Digital AF/AE SLR

CF Card Type I and II and external media (USB v.2.0 hard drive, via optional Wireless File Transmitter WFT-E3A)

0.87 x 0.58 in./22.2 x 14.8mm (APS-C size sensor)

0.87 x 0.58 in./22.2 x 14.8mm (APS-C size sensor)

Canon EF, EF-S, TS-E, and MP-E lenses

Canon EF mount

1.6x

High-sensitivity, high-resolution, single-plate, CMOS sensor

Approx. 10.10 megapixels

Approx. 10.10 megapixels

Approx. 10.50 megapixels

3:2 (Horizontal : Vertical)

RGB primary color filters

Fixed position in front of the CMOS sensor

DCF 2.0 (Exif 2.21): JPEG, RAW and RAW+JPEG simultaneous recording possible. Multiple options for recording images on a memory card.

1. JPEG/Large: Approx. 3.5MB (3,888 x 2,592)
2. JPEG/Medium: Approx. 2.1MB (2,816 x 1,880)
3. JPEG/Small: Approx. 1.2MB (1,936 x 1,288)
4. RAW: Approx. 12.4MB (3,888 x 2,592)
5. sRAW: Approx. 7.1MB (1,936 x 1,288)

Automatically created by camera; can be user-created with "Manual Reset" file naming setting

1.Continuous numbering
2. Auto reset
3. Manual reset (the image numbering is reset to 0001, a new folder is created automatically)

Selectable between sRGB and Adobe RGB

USB 2.0 Hi-Speed, mini-B port. NTSC/PAL for video output

Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent Light, Flash, Custom WB setting, user-set Color Temperature (2,500~10,000K)

Auto white balance, taken from imaging sensor

White balance bracketing: Three consecutive images written to CF card for each firing of shutter; Up to +/- 3 levels in 1-step increments
White balance shift: blue/amber bias and/or magenta/green bias +/- up to 9 levels; manually set by user

Eye-level SLR with solid glass pentaprism

Approx. 95% horizontally and vertically

Approx. 95% horizontally and vertically

0.95x (-1 dpt with 50mm lens at infinity)

Approx. 22mm

-3.0 to +1.0 diopter

Quick-return half mirror (Transmission: reflection ratio of 40:60)

AF (AF points, focus confirmation light), Exposure (shutter speed, aperture, ISO speed, AE lock, exposure level, spot metering circle, exposure warning), Flash (flash ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light), Image (monochrome shooting, maximum burst, white balance correction, CF card information)

Enabled with depth-of-field preview button; possible in Live View Function

None

TTL-CT-SIR AF-dedicated CMOS sensor

9 cross-type AF points, including center AF point; fully functional with f/5.6 or faster lenses
Additional high-precision, diagonal cross-type sensor at Center AF point, used with lenses f/2.8 or faster

9 cross-type AF points, including center AF point; fully functional with f/5.6 or faster lenses
Additional high-precision, diagonal cross-type sensor at Center AF point, used with lenses f/2.8 or faster

EV -0.5 ~18 (ISO 100 at 73°F/23°C)

Autofocus (One-Shot AF, Predictive AI Servo AF, AI Focus AF), Manual Focus (MF)

Superimposed red illumination in viewfinder; also visible on top or rear LCD panel when AF point select button is pressed

Intermittent firing of built-in flash

35-zone TTL full aperture metering
Evaluative metering (linked to all AF points)
Partial metering (approx. 9% of viewfinder)
Spot metering (approx. 3.8% of viewfinder)
Center-weighted average metering

EV 0-20 (ISO 100 at 73°F/23°C with EF 50mm f/1.4 USM lens, ISO 100)

Program AE (shiftable), Shutter-priority AE, Aperture-priority AE, Auto Depth-of-field AE (non-shiftable), Full auto (non-shiftable), Programmed image control modes, Manual exposure, E-TTL II autoflash program AE

Equivalent to ISO 100-1600 (in 1/3-stop or whole stop increments), ISO speed can be expanded to ISO 3200
* Standard output sensitivity. Recommended exposure index

Exposure Compensation (user-set): +/-3 stops in 1/3- or 1/2-half increments

Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
Manual (user-set): By AE lock button in all metering modes

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled

1/8000 to 30 sec. (1/3-stop increments), X-sync at 1/250 sec.

Soft-touch electromagnetic release

10 sec. delay, 2 sec. delay

Canon N3 type terminal

Auto pop-up, retractable, built-in flash in the pentaprism

13/43 (ISO 100 in meters/feet)

Approx. 3 sec.

Flash-ready indicator lights in viewfinder

17mm lens focal length (equivalent to 27mm in 35mm format)

E-TTL II autoflash

+/-2 stops in 1/3- and 1/2-stop increments;
Can be set on EOS 40D body or with most EX-series speedlites

TFT color, liquid-crystal monitor

3.0 in.

7 levels provided

Single image, 4-image index, 9-image index, Jump, Magnified zoom (approx. 1.5x to 10x), Histogram, AF point display, Auto rotate, Rotate
Live View: View image before shooting on LCD monitor; live histogram and live simulation of exposure level possible with C.Fn IV-7-1

In the single image display and (INFO) display, over-exposed highlight areas will blink

Single image or all images in the memory card can be protected or cancel the image protection

Single image, select images, all images in a CF card or unprotected images

Enabled with the Print/Share button

CP and SELPHY Compact Photo Printers, PIXMA Photo Printers and PictBridge compatible printers (via USB Interface Cable IFC-200U, included with camera kit)

Print quantity, style (image, paper size, paper type, printing effects, layout), trimming, tilt correction (compatibility varies, depending upon printer in use)

Shooting
Playback
Setup
Custom function/My Menu

18 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Simplified/Traditional Chinese, Korean, Japanese)

One dedicated Battery Pack BP-511A
AC power can be supplied via the optional AC Adapter Kit ACK-E2

Normal shooting, at 73°F/23°C:
No flash: approx. 1100 images
50% flash use: approx. 800 images
at 32°F/0°C:
No flash: approx. 950 images
50% flash use: approx. 700 images

(tests comply with CIPA industry test standards)

The above figures apply when one fully-charged Battery Pack BP-511A is used

Automatic

Provided. Power turns off after 1, 2, 4, 8, 15, 30 min.

One CR2016 coin-type lithium battery. Battery life approx. 5 years

32-104°F/0-40°C

85% or less

5.7 x 4.2 x 2.9 in./145.5 x 107.8 x 73.5mm (W x H x D)

26.1 oz./740g

Canon 1 year limited warranty
