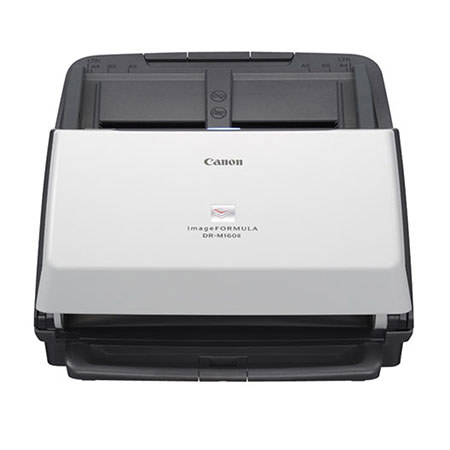

Canon imageFORMULA DR-M160II Office Document Scanner, 600dpi Optical Resolution, 60 Sheets Feeder Capacity, Hi-Speed USB 2.0 Interface,

SKU: ICADRM160II MFR: 9725B002
Earn VIP Reward Points

Key Features

  • Boost office efficiency with rapid, duplex scanning at up to 120 images per minute.
  • Process various documents; this sheetfed scanner handles sizes up to 11 x 17 inches.
  • Scan directly to cloud services using included software, streamlining your workflow.
  • Rely on robust image quality with a 600dpi optical resolution for clear, crisp scans.
  • Enjoy versatile connectivity options via Hi-Speed USB 2.0 for quick data transfers.
  • Scan up to 7,000 documents daily using the 60-sheet ADF for large volume jobs.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-09-04T20:00:00

Rated 5 out of 5

Works as advertised

Works as advertised, which is important. I don't want something that doesn't work.

fbgbanker

2018-08-07T20:00:00

Rated 5 out of 5

Excellent Images

Scanner is smooth and the images are excellent. Good choice. Also, the support technician was very patient and helped me get it up and going.

Cowen

2017-10-11T20:00:00

Rated 1 out of 5

Won't scan everything

This scanner is only capable of scanning regular paper. It will not scan cardstock, envelopes nor carbon sheets.

abc

2017-07-07T20:00:00

Rated 5 out of 5

Great Scanner

I have been using this scanner for more than a year now and have no complaints. I have procured several of them for our clients and they also really like them. With regards to the comment that the output tray is too short, that is incorrect. It's possible that they have not pulled the output tray all the way out as I routinely scan legal documents with no problem. To date I have scanned more than 100,000 pages with no problems whatsoever.

Sundance99

2017-01-29T19:00:00

Rated 5 out of 5

Excellent scanner with small shortcomings

I use this scanner as my daily driver at work and we have had for a couple works. It has a great selection of options and features. As for what one of the previous reviews mentioned, the bottom tray slides and can be extended, which ends up preventing jams. The only complaint that I have about it is that the top feed roller easily creates a jam if the paper is wrinkled at the top. Otherwise, I like everything about it, including the high level of customizability of the software.

yevy

2016-10-23T20:00:00

Rated 2 out of 5

Canon DR-M160II

I just bought a new one for work because my old one was not compatible with my new computer. This particular scanner's paper tray where the paper comes down to is too short, papers fly off the tray! You can't use the stopper because the tray is too short and by using it, it creates a jam up when the papers come out! Not good :(

Nancyl

2016-08-15T11:47:16

Rated 5 out of 5

Excellent scanner

For the price, this is an excellent Kofax scanner. We are a medium sized enterprise, and are fairly heavy users. So far, this scanner has done a great job.

Jordan K.

2015-12-03T19:00:00

Rated 5 out of 5

Durability

My cousin bought one and we love it I'm thinking of getting one for my home also

Naj

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canon DR-M160II Specifications

  • Type

    Office Document Scanner

  • Document Feeding

    Automatic or Manual

  • Document Size

    Width: 2 - 8.5" / 50.8 - 215.9mm
    Length: 2.1 x 14" / 53.34 x 355.6mm

  • Long Document Mode

    Up to 118.1" / 2999.74mm

  • Folio Mode

    Up to 11 x 17" / 279.4 x 431.8mm

  • Document Weight

    7 - 68lbs / 3.18 - 30.84kg Bond

  • Feeder Capacity

    Up to 60 Sheets

  • Grayscale

    8-bit

  • Color

    24-bit

  • Light Source

    RGB LED

  • Scanning Element

    One-Line Contact Image Sensor (CMOS)

  • Scanning Modes

    Color, Grayscale, Black and White

  • Color Dropout/Enhance

    RGB

  • Optical Resolution

    600dpi

  • Output Resolution

    150/200/240/300/400/600 dpi

  • Scanning Speeds: Black and White

    Simplex: Up to 60ppm
    Duplex: Up to 120ipm

  • Scanning Speeds: Grayscale

    Simplex: Up to 60ppm
    Duplex: Up to 120ipm

  • Scanning Speeds: Color

    Simplex: Up to 60ppm
    Duplex: Up to 120ipm

  • Interface

    Hi-Speed USB 2.0

  • Supported OS

    Windows XP Professional (32-bit/64-bit) Windows XP Home (32-bit), Windows Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit), Mac OS 10.7.5, Mac OS - 10.8.5, Mac OS 10.9.1

  • Power Consumption

    27 W max. (Energy Saving Mode

  • Suggested Daily Volume

    Approximately 7000 Scans

  • Bundled Software

    ISIS/TWAIN Drivers, Canon CaptureOnTouch, CapturePerfect, Nuance eCopyPDF Pro Office, Kofax VRS with AIPE

  • Bundled Mac Software

    TWAIN Driver, Canon CaptureOnTouch

  • Other Features

    Auto Color Detection, Auto Page Size Detection, Auto Resolution Setting, Background Smoothing, Character Emphasis, Color Dropout/Enhance Color, Deskew, Double-Feed Release, Feeding Retry, Folio Mode, Image Rotation, Long Document Mode, MultiStream, Pre-Scan, Prevent Bleed-Through/ Remove Background, Separation Retry, Shadow Cropping, Skip Blank Page, Text Enhancement, Text Orientation Recognition, Ultrasonic Double-Feed Detection, User Preferences

  • Dimensions (H x W x D)

    with trays closed: 9.09 x 11.02 x 9.76" / 230.89 x 279.91 x 247.9mm

  • Weight

    7.05lbs / 3.2kg

  • UPC Code

    660685130623

About Canon DR-M160II

FEATURED REVIEWS

Durability

By Naj

My cousin bought one and we love it I'm thinking of getting one for my home also

Great Scanner

By Sundance99

I have been using this scanner for more than a year now and have no complaints. I have procured several of them for our clients and they also really like them. With regards to the comment that the output tray is too short, that is incorrect. It's possible that they have not pulled the output tray all the way out as I routinely scan legal documents with no problem. To date I have scanned more than 100,000 pages with no problems whatsoever.

Enhance your office's document management capabilities with the Canon imageFORMULA DR-M160II Office Document Scanner, a high-quality and reliable solution designed to streamline your workflow. This durable and efficient scanner is ideal for a variety of industries, including legal, financial, healthcare, and government sectors, where precise records management is crucial.

Boasting an impressive 600dpi optical resolution, the imageFORMULA DR-M160II ensures that every scan is sharp and detailed, making it perfect for digitizing critical documents and images. Its robust feeder capacity can handle up to 60 sheets, allowing for rapid and uninterrupted scanning of large document batches, enhancing productivity and reducing manual workload.

The user-friendly design of this compact scanner makes it a valuable addition to any space-constrained office environment. Measuring less than a foot in length and width, it fits comfortably in tight spaces while still delivering exceptional performance. The front LED control panel offers one-touch access to customizable scan tasks, simplifying the scanning process for users of all skill levels.

Flexibility is at the core of the imageFORMULA DR-M160II, with its ability to process a diverse range of document types. From lengthy or oversized papers to embossed plastic cards and delicate thin sheets, this scanner's advanced roller system ensures reliable feeding and seamless scanning, minimizing the need for user intervention.

High-quality scanning is a hallmark of this device, with Canon's imaging technology providing features like Character Emphasis for enhanced text legibility, Auto Resolution for mixed batches of documents and photos, and Optical Character Recognition (OCR) to create searchable and editable digital files. These intelligent scanning capabilities eliminate the need for time-consuming manual data entry and reduce the potential for errors in document handling.

The imageFORMULA DR-M160II comes equipped with a suite of intelligent software applications, including Canon's CaptureOnTouch and Capture Perfect, which facilitate easy sharing of information through cloud services such as Microsoft SharePoint. Bundled with Kofax Virtual ReScan (VRS) and Nuance eCopy PDF Pro Office, the scanner extends its capture and output functionalities, ensuring superior document quality and efficient information organization.

Integration with existing systems is seamless, thanks to the included Windows ISIS and TWAIN drivers, as well as a Mac TWAIN driver, making the scanner compatible with a wide range of third-party capture or content management systems.

Mindful of the environment, the imageFORMULA DR-M160II adheres to ENERGY STAR guidelines for energy efficiency and meets EU RoHS and WEEE directives, emphasizing the reduction of hazardous substances and waste, making it a responsible choice for any eco-conscious business.

Elevate your office's scanning efficiency and document clarity with the Canon imageFORMULA DR-M160II Office Document Scanner, the perfect blend of performance, convenience, and environmental responsibility.

Canon DR-M160II Features

  • High-resolution 600dpi optical scanning for sharp document and image digitization
  • Large 60-sheet feeder capacity for efficient bulk scanning tasks
  • Compact and user-friendly design, ideal for space-constrained office environments
  • Versatile document handling, including plastic cards and oversized papers
  • Advanced image processing with Character Emphasis and OCR for legible, editable scans
  • Eco-conscious scanner meeting ENERGY STAR guidelines and EU RoHS/WEEE standards

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Boost office efficiency with rapid, duplex scanning at up to 120 images per minute.
  • Process various documents; this sheetfed scanner handles sizes up to 11 x 17 inches.
  • Scan directly to cloud services using included software, streamlining your workflow.
  • Rely on robust image quality with a 600dpi optical resolution for clear, crisp scans.
  • Enjoy versatile connectivity options via Hi-Speed USB 2.0 for quick data transfers.
  • Scan up to 7,000 documents daily using the 60-sheet ADF for large volume jobs.

What's in the box:

  • Canon imageFORMULA DR-M160II Office Document Scanner
  • Feed Tray
  • USB Cable
  • AC Adapter/Power Cord
  • Setup DVD-ROM
  • Canon 1 Year Limited Warranty
