Canon imagePROGRAF PRO-6100S Specifications

Print
  • Printing Technology

    FINE: Full-Photolithography Inkjet Nozzle Engineering

  • Head Configuration

    12-Channel Integrated Type

  • Nozzle Configuration

    1,536 Nozzles x 12 Channels, Total: 18,432

  • Droplet Size

    Minimum 4 Picoliters per Color

  • Maximum Print Resolution

    Up to 2400 x 1200 dpi

  • Ink Information

    Type: Pigment Based LUCIA PRO Ink Technology
    PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY
    PFI-1300 (330 ml): PBK, MBK, C, M, Y, PC, PM, GY
    PFI-1700 (700 ml): PBK, MBK, C, M, Y, PC, PM, GY

  • Media Handling

    Front-Loading Automatic Roll Feed: One Roll, Front Output
    Front-Loading Automatic Feed: Front Loading, Front Output

  • Media Width

    8" - 60" (Cut-Sheet and Roll)

  • Minimum Print Length

    8"

  • Maximum Print Length

    Roll Feed: 59' (18m) (Single Page)

  • Borderless Printing Widths

    No Size Restriction - 0"/14"/17"/24"/36"/42"/44"/46"/48"/56"/60" + Micro Margin (Roll Media Only)

  • Media Thickness

    0.07 mm - 0.8 mm

  • Media Core Sizes

    2" or 3" Core (with supplied adapter)

  • Printable Margins

    Roll Paper:
    Top: 3 mm; Bottom: 3 mm; Side: 3 mm

    Borderless:
    Top: 0mm; Bottom: 0mm; Sides: 0mm

    Cut-Sheet:
    Top: 3 mm; Bottom: 20 mm; Side: 3 mm

General

Jump to...
  • General Features

    60" Wide Printer with Stand, 12 Individual Ink Tanks, PF-10 Print Head (1) with Non-Firing and Compensation Function, L-COA PRO Image Processing Engine, Color Density Sensor for Calibration

  • Printer Memory

    3 GB (Standard)

  • Hard Disk Capacity

    500 GB

  • Display

    4.3" Color LCD Touch-screen

  • Acoustic Noise

    Operation: approx. 48 dB (A) (Glossy paper, Image, Print priority: Standard)
    Standby: 35 dB (A) or less

  • Power Supply

    AC 100-240 V (50-60 Hz)

  • Power Consumption

    97W or less
    2.0 W or less (Wired LAN connected)
    0.3 W or Less (Executive Order Compliant)
    Powered off: 0.3W or less

  • Environmental Certifications

    ENERGY STAR (Worldwide)

  • Operational Environment Temperature

    59 - 86 Degree F (15 - 30 Degree C)

  • Interfaces

    USB 2.0 High Speed
    Ethernet: 10/100/1000 Base-T/TX, WiFi

  • OS Compatibility

    Computer Operating Systems:
    32-bit: Windows Vista/7/8.1/10
    64-bit: Windows Vista/7/8/8.1/10 Windows Server 2008R2, Windows Server 2012/2012R2
    Windows Server 2016, Windows Server 2019
    OS X 10.10.5-OS10.11, macOS 10.12-macOS 10.14

  • Software (Mac/Windows Available)

    Professional Print & Layout
    Direct Print & Share (PC only)
    PRO Series Printer Driver
    Accounting Manager (PC Only)
    PosterArtist Lite
    Easy Photo & Print Editor
    Free Layout Plus (With Plug-in for Microsoft Office)
    Device Management Console
    Media Configuration Tool
    Canon PRINT Inkjet/SELPHY
    Quick Utility Toolbox

  • Firmware

    Printer Languages
    Printer Language: SGRaster

Physical

Jump to...
  • Dimensions (H x W x D)

    46 x 78.7 x 38.7" (116.8 x 200 x 98.2cm) (with basket open)

  • Weight

    Approx. 358 lb (162kg) (roll holder included, no inks, no print heads)

  • Print Head

    PF-10

  • Compatibility

    Pigment Ink Tank PFI-1100 C, PFI-1100 GY, PFI-1100 M, PFI-1100 MBK, PFI-1100 PBK, PFI-1100 PC, PFI-1100 PM, PFI-1100 Y, PFI-1300 C, PFI-1300 GY, PFI-1300 M, PFI-1300 MBK, PFI-1300 PBK, PFI-1300 PC, PFI-1300 PM, PFI-1300 Y, PFI-1700 C, PFI-1700 GY, PFI-1700 M, PFI-1700 MBK, PFI-1700 PBK, PFI-1700 PC, PFI-1700 PM, PFI-1700 Y

  • UPC Code

    660685207400

95 Accessories for Canon imagePROGRAF PRO-6100S 8-Color 60" Large Format Inkjet Printer

  • All Accessories (95)
  • Extended Warranty (2)
  • Ink & Toner (36)
  • PrintHead (1)
  • Replacement Parts (1)
  • Cutters & Trimmers (7)
  • Cleaning Accessories (1)
  • Printer Paper (17)
  • Sample Pack (5)
  • Photo Paper (2)
  • Gloves (3)
  • Storage & Presentation (8)
  • Protectors (3)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)
  • Cables & Adapters (5)
  • Software (1)
  • Installation Service (1)

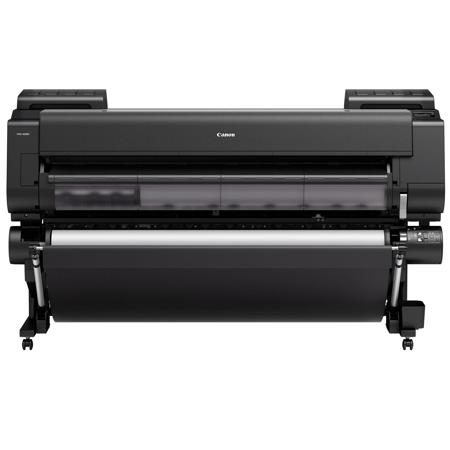

About Canon imagePROGRAF PRO-6100S

For professionals seeking superior print quality and unparalleled ease-of-use, the Canon imagePROGRAF PRO-6100S 8-Color 60" Large Format Inkjet Printer is a high-quality, durable, and advanced solution. Designed specifically for the poster and signage markets, this printer excels in delivering fast, consistent color output in large format.

The imagePROGRAF PRO-6100S is equipped with a 1.28-inch wide 12-channel integrated compact print head, powered by the LUCIA PRO ink set and the L-COA PRO high-speed image processing engine. This combination ensures a perfect balance between high-speed printing and exceptional print quality, making it a reliable choice for professional printing needs.

One of the standout features of this printer is its Intelligent Media Loading. For the first time in an imagePROGRAF printer, paper can be loaded and recognized without human intervention, streamlining the printing process and enhancing efficiency. The built-in multi-sensor measures the surface reflection and media thickness to automatically determine the media type, eliminating the need for manual input.

The imagePROGRAF PRO-6100S also boasts an advanced security system, including secure PIN printing to protect data and the ability to disable printing for increased administrative control. Its LUCIA PRO ink set adopts 8-color microencapsulated pigment inks, ensuring fantastic color reproduction, image clarity, and fine lines, ideal for creating vivid posters and advertising displays.

The printer's design eliminates the need for switching black inks when changing media types. Both matte black and photo black inks have their own dedicated nozzles, allowing for seamless transitions between different paper types without waste.

The printer's PF-10 print head, equipped with anti-clogging FINE technology, ensures fast print speeds while reducing the possibility of clogging. The 8-colors utilize all 12 ink channels in the print head, arranged in a mirror layout for denser ink placement and faster print speeds.

The imagePROGRAF PRO-6100S is powered by the L-COA PRO high-speed image processing engine, which processes massive image data and controls the optimal ink layout for high-resolution prints. The built-in color densitometer offers precise calibration and color matching, ensuring consistent color reproduction.

The printer also features a high-precision mechanical platform for stable print head scanning, resulting in precise ink droplet placement. The optional Multifunction Roll System enables either a second roll of media to be loaded on the printer or the unit to be configured as a bi-directional media Take-up unit.

Wi-Fi connectivity is standard with the PRO Series printers, and PDF and JPEG files can be directly printed from a USB thumb drive. The printer also features a built-in 500 GB hard drive, relieving workload from the host Mac or PC and providing a large capacity for print job data storage and retrieval.

In summary, the Canon imagePROGRAF PRO-6100S 8-Color 60" Large Format Inkjet Printer is a versatile, reliable, and advanced solution for all your large format printing needs.

Canon imagePROGRAF PRO-6100S Features

  • Intelligent Media Loading
  • Remaining Media Estimation
  • New Operation Panel
  • Enhanced Security
  • LUCIA PRO Ink Set
  • No Switching of Black Inks
  • PF-10 Print Head
  • L-COA PRO High-Speed Image Processing Engine
  • Color Calibration
  • High Precision Mechanical Platform
  • Multifunction Roll System
  • Wi-Fi Connection
  • Print From USB Thumb Drive
  • High Capacity Ink Tanks
  • Sub-Ink Tank System
  • Multipositional Basket
  • 500 GB Hard Drive

Product Documents

User Manual

Key Features

  • High-quality 8-Color 60" Large Format Inkjet Printer for professional printing needs
  • Intelligent Media Loading for automatic paper recognition and loading
  • Advanced security features including secure PIN printing for data protection
  • LUCIA PRO ink set for exceptional color reproduction and image clarity
  • Wi-Fi connectivity and direct USB thumb drive printing for easy operation
  • Built-in 500 GB hard drive for efficient print job data storage and retrieval

What's in the box:

  • imagePROGRAF PRO-6100S 60 " Printer
  • Multifunction Roll Unit with Tools
  • Stand
  • Tools & Screws
  • US AC Power Cable
  • Print Head PF-10
  • 330ml Starter Ink Tanks (MBK/BK/C/M/Y/PC/PM/GY)
  • 2 " Roll Holder with 3 " Core Adapters
  • Safety & Environmental Sheet
  • Printer Stand Setup Guide
  • Print Head Alignment Sheet
  • Manual
  • USB Connection Sheet
  • Software Discs
  • Sample Media (5 Sheets A2 Size)
  • Media Compatibility Sheet
  • iWR Service Terms Leaflet
  • Canon 1 Year Limited Warranty
