Canon 400S Specifications

  • Printer Type

    8-Color 24-inch Printer

  • Number of Nozzles

    Total: 30,720
    C, PC, PM, GY: 5,120 nozzles each
    BK, MBK, Y, M: 2,560 nozzles each

  • Nozzle Pitch

    1,200 dpi, Non-firing nozzle detection and compensation

  • Print Resolution (Up to)

    2,400 x 1,200 dpi (Max)

  • OS Compatibility

    Windows (XP/Vista/7/8), Macintosh (OSX)

  • Standard Interfaces

    USB 2.0 High-Speed
    10/100/1000 Base-T/TX

  • Ink Droplet Size

    4 picoliter
    LUCIA EX Ink (Pigment based)

  • Ink Capacity

    130 and 300ml per color available2

  • Color Set

    Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray

  • Buffer Ram

    250 GB / 250 MB

  • Media Width

    Cut Sheet and Roll: 8" - 24"

  • Media Thickness

    Top Loading Manual Feed: 0.07 - 0.8mm (3.2 - 31.4mil)
    Front Loading Manual Feed: 0.5 - 1.5mm (19.6 - 59.0mil)
    Roll: 0.07 - 0.8mm (3.2 - 31.4mil)

  • Maximum Roll Print Length

    59 Feet (18 meters)

  • Maximum Media Roll Diameter

    5.9" (150mm)

  • Borderless Printing Width

    10" (254 mm), B4 (257 mm), 14" (356 mm), 16" (407 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm)

  • Paper Feed Method

    Roll Feed: One Roll, front output
    Top Loading Manual Feed: One sheet, front output
    Front Loading Manual Feed: One sheet, front output

  • Languages

    GARO (Canon Proprietary)

  • Noise Level Approx

    Operation: 47 dB (A) or less
    Acoustic Power: Approx. 6.4 Bels or less

  • Power Source

    AC-100-240V (50-60Hz)

  • Power Consumption

    Maximum: 100W or less
    Standby 5W or less
    Power Off: .5W or less (Compliant with Executive Order)

  • Operating Environment

    Temperature: 59deg.-86deg. F (15deg.-30deg. C)
    Relative Humidity: 10-80% (No Condensation)

  • User-replaceable items

    Print Head (PF-05), Maintenance Cartridge (MC-16), Ink Tanks (PFI-106/PFI-206)

  • Software Included

    Canon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, PosterArtist Lite (PC Only), Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature, Color Calibration Management Console, Printer Driver Optimization Module for AutoCAD, Direct Print & Share

  • Dimensions (H x W x D)

    39.4 x 48.3 x 29.6" / 100.07 x 122.68 x 75.18cm
    39.4 x 48.3 x 34.4" / 100.08 x 122.68 x 87.37cm (with optional SU-21 Spectrophotometer attached)

  • Weight

    154lbs / 69.85kg with stand (Approx.)
    200lbs / 90.72kg with optional SU-21 Spectrophotometer attached (Approx.)

  • UPC Code

    013803222029

52 Accessories for Canon imagePROGRAF iPF6400S 24" Large Format Photo Printer, 2400x1200 dpi, USB 2.0

  • All Accessories (52)
  • Ink & Toner (8)
  • Cleaning Accessories (1)
  • Printheads (1)
  • Sample Pack (6)
  • Photo Paper (7)
  • Printer Paper (8)
  • Cutters & Trimmers (4)
  • Gloves (3)
  • Storage & Presentation (8)
  • Envelopes & Protectors (4)
  • Power Supply & Accessories (1)
  • Printer Accessories (1)

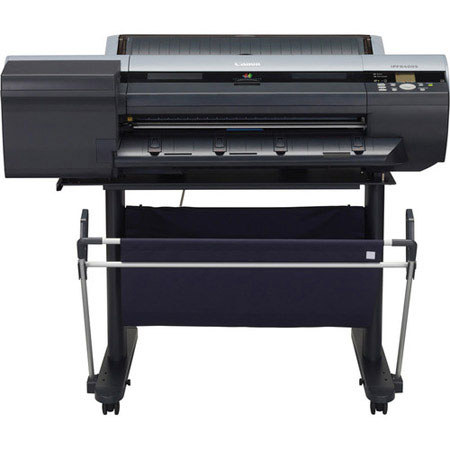

About Canon 400S

The Canon imagePROGRAF iPF6400S 24-inch large format printer was designed for professionals in the commercial photography, signage display, reprographic and proofing markets that seek the highest possible standards for quality-control and image reproduction, while maximizing productivity. A large color spectrum is produced by the 8-Color LUCIA Ex pigment ink set, which also provides scratch resistance and smoother gradations. The enhanced Multi-sensor allows for the printer to calibrate back to factory settings and is included with this printer to help provide improved color density detection. A Color Calibration Management System allows for color calibration targets to be created using the iPF6400S printer with optional spectrophotometer and shared across all new iPFX400S 8-Color printers, while the included software allows for all printers on the network to be monitored from one central location. The printer supports ink tank sizes of 130ml and for the first time, 300ml and the new Sub-ink tank system keeps some ink in reserve to allow for tanks to be changed without interrupting a print. The iPF6400S printer is also equipped with a 250GB hard drive, geared to help increase productivity in high volume printing and streamlined workflows, while allowing for fast processing of large files as well as the ability to reprint jobs directly from the printer.

As an optional add-on to the iPF6400S printer, the SU-21 Spectrophotometer features a scan speed of up to 10 inches per second and can accommodate media of different thicknesses (Canon or non-Canon branded) thanks to the device's mobile carriage which opens and closes automatically. The device attaches directly onto the front of the iPF6400S printer and includes a user-switchable UV blocking filter that can be switched on and off according to paper type, eliminating the need to purchase individual sensors.

To expand printing options and capabilities, the iPF6400S printer comes bundled with Canon's PosterArtist Lite software for easy poster creation and an Accounting Manager tool that helps keep track of job cost. Also included is a Print Plug-in for Microsoft Office and a Print Plug-in for Adobe Photoshop, which includes an Adjustment Pattern Setting that allows for multiples of an image to be printed at once with different color values implemented and displayed. Gallery wrap-ready prints can now be created using the included Gallery Wrap Feature, found in the imagePROGRAF Layout Tool. To improve versatility, the iPF6400S has a media configuration tool which allows customers to not only utilize existing Canon-branded media, but also with non-Canon branded media. By combining Canon's technological achievements, the imagePROGRAF iPF6400S achieves consistently breathtaking, durable and long lasting prints.

Canon 400S Features

  • LUCIA EX Ink Set: Canon's LUCIA EX Ink set is designed for dramatic photographic expression and detailed color reproduction for exacting proofing applications. This 8-Color ink set offers a brilliant range of vibrant colors, smooth gradations and transitions, with incredibly fine details
  • Optional SU-21 Spectrophotometer: This easy to install solution attaches right onto the front of the iPF6400S printer and brings superb image quality that you'd expect from a Canon imagePROGRAF printer to the next level
  • Color Calibration Management System: The Color Calibration Management Console is included for the centralized management of networked printers in a system from one easy to use software tool. This unique feature enables color calibration targets created using the iPF6400S printer
  • Enhanced Multi-Sensor: This printer includes an upgraded, built-in color multi-sensor that's designed to offer even more precise calibration and color matching
  • Large Ink Tank Capacity: The iPF6400S printer supports 130 ml ink tank sizes and now offers an option for large 300 ml ink tanks. Ink tank replacement becomes less frequent and users with higher printing volumes can enjoy greater productivity
  • Sub-ink Tank System: An ink tank system designed for uninterrupted printing even during tank replacement that has already been featured on the current 44 and 60 inch models, is now available on a 24 inch, 8-Color printer for the first time
  • Fast Draft Printing Mode: The Draft Mode produces 1200 x 1200 dpi output at up to 294ft2/hr on coated and uncoated paper stocks while reducing ink consumption by 10% to 20% versus standard mode
  • Fast Economy Printing: Help reduce total ink consumption by utilizing the Economy Printing Mode for producing draft prints on select media. This feature increases overall speed and regulates the use of all colors to produce quick check plots
  • 250GB Hard Drive: A built-in 250GB hard drive within the printer helps increase productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval
  • PosterArtist Lite: Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints. Users simply follow the program's four (4) easy steps to create posters that can be used in applications
  • Direct Print & Share Cloud Portal Software: Direct Print & Share software is a cloud portal solution that helps users to expand their printing workflow. Users are given the ability to upload documents to their own account using Google's cloud service
  • Print Plug-in for Adobe Photoshop: This export module allows 16-bit image processing, preserving the expanded color spectrum and high gradation of the file. The Print Plug-in also helps reduce the possibility of incorrect settings
  • Gallery Wrap Feature: This creative tool can be accessed via Adobe Photoshop (not included) and allows users to easily create gallery wrap prints for framing, as well as creative options that will expand output possibilities
  • Print Plug in for Microsoft Office: This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard"

Key Features

  • Direct Print & Share Cloud Portal Software
  • Color Calibration Management System
  • Print Plug in for Microsoft Office
  • Print Plug-in for Adobe Photoshop
  • Optional SU-21 Spectrophotometer
  • Fast Draft Printing Mode

What's in the box:

  • Canon imageCLASS MF6160dw Wireless Multifunction Printer
  • Standard Cartridge
  • Phone Cable -Power Cord
  • Canon 1 Year Warranty
