Questions & Answers

Shopper : Do you know if the Canon imagePROGRAF iPF670E 24" printer will print on waterproof inkjet transparency film?ANDREW R : Works with a variety of media as long as it's compatible with dye/pigment inks.
Henry S : What is the interior diameter for the paper roll of bond for the canon iPF670E?ANDREW R : The manufacturer supplies the following specs for roll media: Maximum Roll Print Length 59' (18 meters) Maximum Media Roll Diameter 5.9 (150mm)
Linda F : Can I print on canvas with the 670?

Reviews about this item

Review Summary

2019-08-14T15:05:42

Rated 5 out of 5

Easy set-up. Too early to recommend or discuss pros and cons.

Just set up my printer yesterday, which was pretty easy and have already made a couple of prints. Quality looks good. Printer is a lot bigger than I expected and I was confused by the measurements (in mm, why not in inches also?) Ask me in a couple of months, after I've run it through its paces whether I could recommend it and the pros and cons. I'll be using it for templates with my screenprinting.

helene r.

2019-01-02T08:45:24

Rated 5 out of 5

Works as intended

Great printer - does what is supposed to do.

Jeff S.

2018-05-15T13:46:30

Rated 5 out of 5

Never used a plot printer before

the Cannon IPF670E plot printer came in a BIG box. It was really easy to setup and install the drivers. It is a vary quite and easy to understand. We also order a roll of paper and was vary easy to feed the paper and the printer took over and did the rest. We are vary happy with it.

BRIAN W.

2018-01-24T08:50:45

Rated 3 out of 5

Very upset with purchase.

I only gave it three stars but it’s because of the advertising and not the actual product. I purchased this as an entry level large format photo printer bc that was the way it was advertised. Then, the “E” was not explained to be for “economy” which meant it came without a roll paper cover, without the usually included 3” roll adapters, and no paper stop for SHEET FEEDING, which the printer WILL DO. I spent over an hour on the phone with Canon Customer service trying to figure out why I couldn’t get the printer to do the things that the instruction manual showed it could do. Adorama also did not notify me UNTIL AFTER I called asking why I received the stand a week before the printer came, that the printer itself was being shipped by a separate freight company. I’m a student and I spent $ on this printer and it doesn’t work as advertised. I cannot send it back bc I no longer have the pallet or box it was shipped in so now I am having to try and sell it to an architectural firm or a home printing business, as it is actually a line printer and not for photography at all.

Mary F.

2017-11-28T13:38:59

Rated 5 out of 5

Great entry level printer!!

great printing quality, would recommend for small budget applications, size wise is a bit larger than anticipated nad struggles with OSX driver, but overall great product!

ACCOUNTS P.

Canon imagePROGRAF iPF670E Specifications

  • Printer Type

    5-Color 24-inch Printer

  • Number of Nozzles

    Total: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each

  • Nozzle Pitch

    1,200 dpi
    Non-firing nozzle detection and compensation

  • Print Resolution (Max.)

    2400 x 1200 dpi

  • OS Compatibility

    Windows (Vista/7/8.1/10)
    Macintosh (OSX 10.7.5-10.11X)

  • Standard Interfaces

    USB 2.0 High-Speed 10/100/1000 Base-T/TX

  • Droplet Size

    4 Picoliter

  • Ink Capacity

    90ml per tank

  • Ink Droplet Size

    Dye/Pigment Reactive Ink

  • Color Set

    Dye: Cyan, Magenta, Yellow, Black
    Pigment: Matte Black

  • Buffer Ram

    256mb

  • Media Width

    Roll Feed 10 - 24 (254mm - 610mm)

  • Media Thickness

    0.07-0.8mm (2.8-31.4mil)

  • Maximum Roll Print Length

    59' (18 meters)

  • Maximum Media Roll Diameter

    5.9 (150mm)

  • Borderless Printing Width

    10, B4, A3, 14, A2, 17, B2 (20.28"/515 mm), A1 (23.38"/594mm), 24

  • Paper Feed Method

    Roll Feed: One Roll, Top-loading, Front output

  • Languages

    GARO (Canon Proprietary)

  • Noise Level Approx

    Operation: 47 dB (A)
    Standby:35 dB (A) or less
    Acoustic Power: Approx. 6.4 Bels

  • Physical Dimensions

    42 (H) x 39 (W) x 34 (D) (When basket is open)
    20 (H) x 39 (W) x 27 (D) (Without stand)

  • Weight

    Approximately 92 lb. without stand
    Approximately 113 lb. with stand

  • Weight

    Approximately 92 lb. without stand
    Approximately 113 lb. with stand

  • Power Source

    AC-100-240V (50-60Hz)

  • Power Consumption

    Maximum: 140W or less
    Standby 5W or less
    Power Off: .5W or less (Compliant with Executive Order)

  • Power Consumption

    Maximum: 140W or less
    Standby 5W or less
    Power Off: .5W or less (Compliant with Executive Order)

  • User-replaceable items

    Print Head: PF-04
    Maintenance Cartridge: MC-10
    Ink Tanks: PFI-007 (90ml: C, M, Y, BK, MBK, MBK)

  • Operating Environment

    Temperature: 59½-86½ F (15½-30½ C)
    Relative Humidity: 10-80% (No Condensation)

  • Software Available

    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Sh are, PosterArtist Lite (PC Only), Print Plug-in for Microsoft½ Word /Excel/PowerPoint (PC only), Status Monitor, Media Configuration To ol, Optimized Module for AutoCAD

  • Printing Software

    imagePROGRAF Printer Driver for Windows/Mac, Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy (PC Only), Advanced Preview), Print Plug-in for Microsoft Office (PC only), Optimized Module for AutoCAD for Windows, Direct Print & Share (PC Only), Status Monitor for Windows, PrintMonitor for Mac, Media Configuration Tool, PosterArtist Lite for Windows

  • Operating System

    Windows XP (32 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Server 2012 (64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Macintosh OS X 10.6.8 - 10.9X

  • Print Language

    GARO (Canon Proprietary), HP-GL/2, HP RTL

  • Interface

    USB 2.0 Hi-Speed, 10/100/1000Base-T/TX

  • Protocol

    TCP/IP (IPv4/IPv6), IPX/SPX, AppleTalk, SNMP (Canon MIB supported), HTTP

  • Acoustic Noise

    Operation: Approx. 47 dB
    Standby: 35dB or Less
    Acoustic Power: Approx. 6.4 Bels

  • Power Supply

    AC 100-240 V (50-60 Hz)

  • Certifications

    Electrical Safety Regulations: TUV (USA), cTUV (USA), TUV.S mark, CB certification (Others)
    Electromagnetic Interface Regulations: FCC Class B (USA)
    Environmental Certifications: ENERGY STAR (Worldwide), RoHS Directive

  • Operational Environment

    Temperature: 59 - 86 deg. F (15 - 30 deg. C)
    Relative Humidity: 10 - 80% (No Condensation)

  • Dimensions (HxWxD)

    20 x 39 x 27" (50.80 x 99.06 x 68.58cm) without stand

  • UPC Code

    013803288735

53 Accessories for Canon imagePROGRAF iPF670E 24" Large-Format Inkjet Photo Printer, without Stand

  • All Accessories (53)
  • Sample Pack (5)
  • Ink & Toner (5)
  • Cleaning Accessories (1)
  • Maintenance Kit (1)
  • Printheads (1)
  • Printer Paper (13)
  • Photo Paper (2)
  • Cutters & Trimmers (4)
  • Gloves (3)
  • Storage & Presentation (8)
  • Protectors (3)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)
  • Printer Accessories (1)
  • Software (1)
  • Cables & Adapters (3)

About Canon imagePROGRAF iPF670E

FEATURED REVIEWS

Easy set-up. Too early to recommend or discuss pros and cons.

By helene r.

Just set up my printer yesterday, which was pretty easy and have already made a couple of prints. Quality looks good. Printer is a lot bigger than I expected and I was confused by the measurements (in mm, why not in inches also?) Ask me in a couple of months, after I've run it through its paces whether I could recommend it and the pros and cons. I'll be using it for templates with my screenprinting.

Works as intended

By Jeff S.

Great printer - does what is supposed to do.

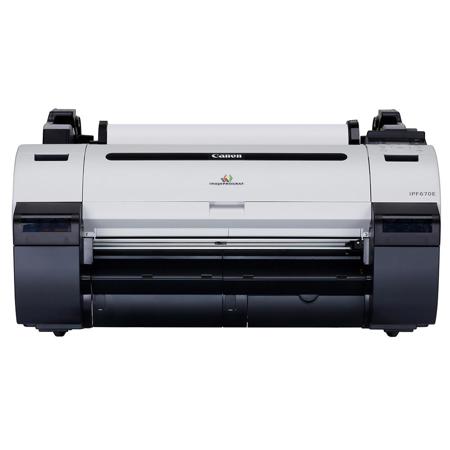

The Canon imagePROGRAF iPF670E is an economical, entry-level, large-format printer. The iPF670E is designed for customers who need to simply and easily satisfy a broad range of printing needs - CAD/GIS documents, posters and POP displays, and office documents - but without the added features of the premium models.

5-Color 540 ML Ink Set
The iPF670E has Cyan, Magenta, Yellow, Matte Black and Black ink tanks. Matte Black ink allows for crisp lines on plain paper prints while the Photo Black ink creates a true black on glossy paper prints - no need to mix C, M, and Y to create Black, as this would result in dull, faded images.

Priced Right ... Affordable Convenience
Available with or without a stand, the compact iPF670E printer can sit right on your desk or in the corner of your office, allowing you to do your own prints on demand. In addition to having an inexpensive, upfront purchase price, the iPF670E model ships standard with 540 ml of ink - a value of $360.

Sub-Ink Tanks and Hot Swap Ink Tanks
The iPF670E printer has a Sub-Ink Tank System that works to remove all the ink in the tank before having to replace it, helping to eliminate any waste. The empty tanks can also be replaced on the fly, without stopping the printer.

Value Added Features

Printer Driver Extra Kit - Free Layout, Color imageRUNNER Enlargement Copy (PC Only), Advanced Preview
Print Plug-in for Microsoft Office - Easily print by directly integrating with core Microsoft applications
Accounting Manager - Keep track of all printing costs
Optimized Module for AutoCAD - Help enable optimal printing productivity and reliability with a variety of compatible AutoCAD software products
Direct Print & Share - Easy drag-and-drop printing
PosterArtist Lite - No need to hire a graphic designer create professional posters with ease

Canon imagePROGRAF iPF670E Features

  • 24-inch Printer
  • 5-Color Dye/Pigment Reactive Ink Set (including BK ink for glossy papers)
  • Printer ships standard with 540 ml of ink (90 ml per tank)
  • Sub-Ink Tank System and Hot Swap Ink Tanks
  • Fast Printing - The iPF670E printer can print an A1-sized image in 56 seconds
  • Non-Firing Nozzle Detection and Compensation

What's in the box:

  • Canon imagePROGRAF iPF670E Printer
  • 2" Roll Holder
  • Print Head
  • Maintenance Cartridge (Installed)
  • 6 Ink Tanks (C/M/Y/BK/MBK/MBK)
  • Ethernet Card (Built In)
  • USB 2.0 High Speed Interface
  • Quick Setup Guide (Poster)
  • Power Cord
  • PosterArtist Lite Application CD
  • User Software CD
  • Canon 1 Year Limited Warranty
