5-Color 24" Printer
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
1200 dpi
Non-firing nozzle detection and compensation
2,400 x 1,200 dpi (Max)
Windows (XP/Vista/7/8)
Macintosh (OSX 10.6.8-10.9X)
USB 2.0 High-Speed
10/100/1000 Base-T/TX
4 picoliter
Dye/Pigment Reactive Ink
130ml or 300ml per color4
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
256MB
Cut Sheet - 8"- 24" (203.2mm - 610mm)
Roll Feed - 10" - 24" (254mm - 610mm)
0.07-0.8mm (2.8-31.4mil)
Roll Feed - 59' (18 meters) 5
Cut Sheet - 63" (1.6 meters)
5.9" (150mm)
10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24"
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
GARO (Canon Proprietary)
Operation: 48 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.5 Bels
AC-100-240V (50-60Hz)
Maximum: 140W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Temperature: 59 deg. -86 deg. F (15 deg. -30 deg. C) Relative Humidity: 10-80% (No Condensation)
Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK)
Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
42 x 39 x 35" / 1066.8 x 990.6 x 889mm (When basket is open)
42 x 39 x 43" / 1066.8 x 990.6 x 1092.2mm (When basket is extended for flatbed stacking)
125lbs / 56.69kg (with stand) (Approx.)
013803234497

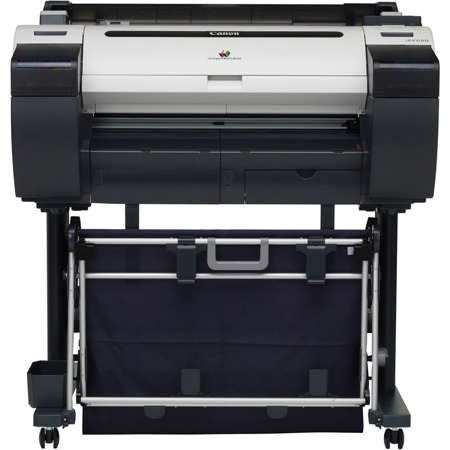

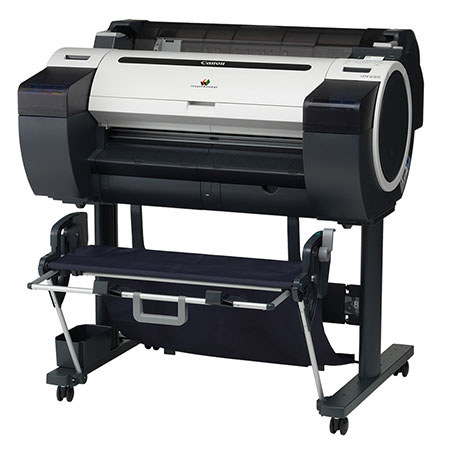

The Canon imagePROGRAF iPF680 5-Color Large Format Inkjet Printer award winning line of 5-color printers and provides enhancements in both hardware and software capabilities. The iPF680 device is capable of producing an Arch D (24" x 36") print in up to 25 seconds using Economy mode! The printer has the capability of accommodating 300ml ink tanks, geared towards lowering the cost per print. The included Sub-ink tank system allows for users to use all of the ink in the tank before replacing, while also replacing the empty ink tanks on-the-fly without having to stop a job mid-print and sacrifice print quality.
From a software perspective, the iPF680 printer comes loaded with user-friendly software solutions that are ready to be used right out of the box. Direct Print & Share, Canon's cloud-based portal solution, is available as a download and allows for files to be uploaded, downloaded, shared and printed from almost anywhere in the world! Also downloadable is a mobile printing app, imagePROGRAF Print Utility, allows for PDFs to be printed through use of an Apple iPad. The Accounting Manager software allows users to track job costs, while the Print Plug-in for Microsoft Office enables for documents created with Word, Excel or Powerpoint to be printed in large format. And to improve versatility, the iPF680 printer has a Media Configuration Tool which allows customers to optimally utilize their Canon-branded media in creating their desired output.
Dye/Pigment Reactive Ink Set
The 5-Color ink set found in the imagePROGRAF iPF680 printer is ideal for technical applications. This ink technology utilizes four highly colorfast dye inks for producing bold, expressive color, plus a channel of pigment matte black ink for printing precise lines, smooth curves and small text on technical and office documents. Also included is a newly formulated magenta ink that helps produce a wider color gamut in the red and orange spectrums, compared to previous models. These Canon inks provide superb adhesion to media, scratch and marker resistance and help ensure minimal "bleeding" between colors and text. Even small text printed on colored backgrounds or on uncoated technical papers is crisp and legible.
High-Speed Printing
The imagePROGRAF iPF680 printer has the ability to output a D (24" x 36") sized drawing in Economy mode in approximately 25 seconds! When you need to keep projects moving forward and meet deadlines, this kind of speed is critical. Powering these incredible print speeds is Canon's L-COA (Large Format Printer Common Architecture) print controller, driving the imagePROGRAF print engine to lay down ink with exceptional speed and precision. This high-speed processor enables the print system to process large volumes of data while optimizing output of complex high-color GIS images and architectural renderings for maximum readability and color accuracy.
Large Capacity Ink Tanks
The iPF680 printer supports ink tank sizes of 300ml, along with the available 130ml tanks, with the former helping to lower the ink cost per print. Tanks can also be mixed and matched based on user preference.
Sub-Ink Tank System
Canon's unique sub-ink tank system allows for users to use all of the ink that's available in a tank before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during long print jobs.
Economy Print Mode
Helps reduce total ink consumption when utilizing the Economy Print Mode by producing draft prints on select media. This feature regulates the use of all inks to produce quick check plots to help minimize the cost per print.
Flat Stacker/Basket
The integrated stacker/basket provides the capability to neatly stack up to twenty Arch D plain paper prints. The stacker basket can be configured as a regular basket, a small stacker or a larger flat-positioned basket.
Precision Printing: High-Density PF-04 Print Head
Engineered for speed and advanced image production, this printer boasts Canon's print-head technology that lays down ink with exceptional speed and accuracy. The PF-04 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 4 picoliter-size ink droplets that produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to +/-0.10% and as thin as 0.02mm.
Direct Print & Share
Canon's Direct Print & Share software is a cloud portal solution that helps users to expand their printing workflow. Available as a free download, this software gives users the ability to upload documents to their own account using any WebDAV compliant cloud service and have those documents printed from almost anywhere. Easily share a variety of file types and print PDFs, TIFFs, JPEGs and HP-GL/2 files through the user-friendly interface and even have the ability to do batch printing! In addition to these features, users can set-up hot folders on their desktop for easy shortcut printing, by being able to simply drag and drop the files they wish to print into these folders and see the job spool automatically. Users can set up multiple folders each with their own customized settings, allowing for multiple jobs to be run with ease.
imagePROGRAF Print Utility
imagePROGRAF Print Utility is Canon's mobile app for wireless printing via an Apple iPad to an imagePROGRAF printer2. Through use of the app, users have the ability to preview their PDF file, utilize some of the great basic settings seen in their Canon Printer Driver such as selecting the number of copies, paper orientation and quality and then send their print to one of the imagePROGRAF 5-Color Printers sharing the same network. imagePROGRAF Print Utility is available for download free of charge through the iTunes App Store.
Canon Printer Driver
These Windows and Macintosh drivers incorporate simplified page setup options, one-touch borderless printing, expanded color settings and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to stay productive. The Real Preview feature helps users check that the print setting and the layout on the roll paper are correct by providing real time preview, allowing users to change the print setting even after clicking on "print." The Free Layout feature enables nesting and custom layouts of images or files of nearly any type (available for both Windows and Mac driver).
The imageRUNNER Enlargement Copy feature built-in to the printer driver lets users transfer data from their Color imageRUNNER device with Universal Send to the imagePROGRAF printer - all with the touch of a button - enabling users to easily create posters from hard copy documents.
Status Monitor
The imagePROGRAF Status Monitor (Version 25.51) has a new Ink Purchase Notification Function. This feature enables a user to customize their Status Monitor so that when an ink tank is running low and needs replacing, a prompt will appear that either provides the user a link to a website where the tank can be purchased or the contact information to a trusted supplier. What appears exactly can be selected depending on user preference.
Accounting Manager
Tracks how much ink and media is being consumed when printing. Costs can be assigned to ink and paper to determine expenses based on "Cost of goods". The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel so the data can be used for billing purposes.
PosterArtist Lite
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints. Users simply follow the programs four (4) easy steps to create posters that can be used in applications such as Office presentation, Trade shows, Retail Signage and much, much more.
PosterArtist
For those with more demanding poster creation needs, Canon's optional PosterArtist offers advanced features such as Auto Design, Variable Data and in-application image editing features, as well as additional templates, royalty-free photos and clip art. The built-in weblink feature in PosterArtist Lite links users directly to the PosterArtist website for useful hints and tips and for even more free content for download.
Print Plug-In for Microsoft Office
This utility makes it easy to print large-format documents created in Microsoft Word, Excel or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard". The Plug-in will bypass the printer driver to simplify the printing process. A few simple steps convert your 8.5" x 11" office document to poster size.
Optimized Module for AutoCAD
This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. Through this module, the processing and printing time associated with printing AutoCAD files to the imagePROGRAF printer is decreased to approximately 1/3rd the time associated with printing through the Canon HDI Driver! The module also has a user-friendly interface that includes familiar features such as free layout, test printing and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, ensuring a smooth workflow with optimal printing results each time.
