Canon imagePROGRAF iPF770 MFP M40 Large Format Photo System with Computer, Touch-Screen Monitor and SmartWorks MFP Software - Bundle With Canon imagePROGRAF MFP Installation & 1-Yr Scan Warranty

• Complete Scan-to-Print/File/Share Solution
• M40 Scanner
• SmartWorks MFP Software
• SmartWorks MFP Plus Software
• imagePROGRAF Print Utility2
• Direct Print & Share Cloud Portal Software
• iPF770 36-inch Large Format Printer
• Touch Screen Monitor
• Computer
• MFP Stand

The Canon imagePROGRAF iPF770 MFP 36" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD, ECAD and applications. The iPF770 MFP M40 provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.

This Multi-Function Product's advanced M40 scanner adds versatility to the product capabilities with the ability to scan documents up to 2mm thick, allowing users to scan more than just technical documents. The scanner has the ability to scan documents up to 315" in length as a PDF or JPEG file and up to 590" in length as a TIFF file. The iPF770 MFP M40 also offers Canon's Direct Print & Share software, a cloud-portal software solution that enables the viewing, sharing and printing of files from anywhere in the world, a new Shortcut Print button for drag and drop printing through hot folder technology and is compatible with almost any cloud server that's WebDAV compliant. The solution is also equipped for mobile printing through use of the imagePROGRAF Print Utility app for iPad, available as a free download on the App StoreSM .

With true 600dpi optical resolution, CIS scanning technology for incredible line definition and accuracy and room for documents up to 41" wide (40" image width) by any length, the iPF770 MFP M40 is a versatile imaging solution. And with dynamic preview and a large, simple-to-use touch-screen interface, one-click scanning/copying has never been easier. Comes standard with the ability to scan to PDF, JPEG and TIFF file formats. The iPF770 MFP M40 provides the versatility and flexibility needed to be used in a wide variety of industries and applications, all in one captivating package.

Complete Scan-to-Print/File/Share Solution
The iPF770 MFP M40 is an affordable solution for providing fast, high-quality, large format image capture-to-output. Designed to be more than just its parts, it is the versatility of the product that makes it stand out. This multi-component system gives the user the opportunity to be more productive. The open architecture of the stand-alone computer can be used to load additional programs, among other things. The printer's ability to print on a wide variety of media lends itself to uses in many departments and applications as well.

A versatile system built for the way you work, the imagePROGRAF iPF770 MFP M40 includes:
• M40 Scanner
• iPF770 36-inch printer
• SmartWorks MFP software
• Stand-alone computer
• Touch screen monitor
• MFP stand

M40 Scanner
The M40 scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.

• 1200 dpi optical resolution, 9600 dpi maximum resolution
• Image scanning of up to 40" wide, fits documents 42" wide
• Scans documents up to 315" (26 ft) in length as a JPEG or PDF file and up to 590" (49 ft) in length as a TIFF file
• Scanning speed of up to 13 inches per second monochrome, 3 inches per second color
• USB 3.0 interface, 75 Mbytes / sec transfer rate
• Scan documents up to 2.0 mm thick
• Face up / Front load / Rear exit
• Straight paper path

The M40 scanner contains a single component image sensor that is the full width of the scanner and has long life LED Bi-directional illumination. Full width image capture, as opposed to time delayed scanning of separate sections, means less risk of misalignment of scan data. LED's require virtually no warm up time and provide a wide and consistent color gamut, with low power consumption and there is less potential for shadowing at creases or folds. A single driven hold up roller provides even pressure across the scan width which means originals are less susceptible to folds or creases.

SmartWorks MFP Software
SmartWorks MFP gives you the tools you'll need to quickly and easily scan to print / file / share large format technical documents. With a simple to use interface and unique scan-it-once ability, SmartWorks MFP allows for efficient batch scanning and helps create quality scanned images that are produced in a short amount of time. Scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.

• Scan lengths of up to 315" (26 ft) for PDF and JPG files and up to 590" (49 ft) for TIFF files
• Ability to add custom presets with one-touch retrieval for those often-used settings
• New image enhancements for white point adjust, black point adjust, sharpen, mirror and invert
• Full integration with Canon Digital Print & Share cloud software

Users have more control over their workflow with access to editing functions such as invert, mirror and black and white point adjustments. Custom presets help users control the scanner and increase control over printer settings.

SmartWorks MFP Plus Software
Available as an optional add-on to SmartWorks MFP, this software includes many additional features to help enhance your multi-function workflow.

• Scan to multipage PDF and PDF/A
• Ability to open and print non SmartWorks MFP PDF files (through Direct Print & Share)
• RGB Color Adjustment capabilities in preview mode
• Auto crop feature that removes printer margins from a scan to create a true 1:1 ratio

imagePROGRAF Print Utility
imagePROGRAF Print Utility is Canon's mobile app for wireless printing via an Apple iPad to an imagePROGRAF printer. Through use of the app, users have the ability to preview their PDF file, utilize some of the great basic settings seen in their Canon Printer Driver such as selecting the paper size, number of copies, orientation and quality and then send their print to one of the imagePROGRAF 5-Color Printers sharing the same network. imagePROGRAF Print Utility is available for download free of charge through the iTunes App Sore.

Direct Print & Share Cloud Portal Software
Canon's Direct Print & Share software is a cloud portal solution that helps users to expand their printing workflow. Users are given the ability to upload documents to their own account using any WebDAV compliant cloud service and have those documents printed from almost anywhere1. Available as a free download, this software allows users to easily share a variety of file types and print PDFs, TIFFs, JPEGs and HP-GL/2 files through the user-friendly interface and even have the ability to do batch printing! In addition to these features, users can set-up hot folders on their desktop for easy shortcut printing, by being able to simply drag and drop the files they wish to print into these folders and see the job spool automatically. Users can set up multiple folders each with their own customized settings, allowing for multiple jobs to be run with ease.

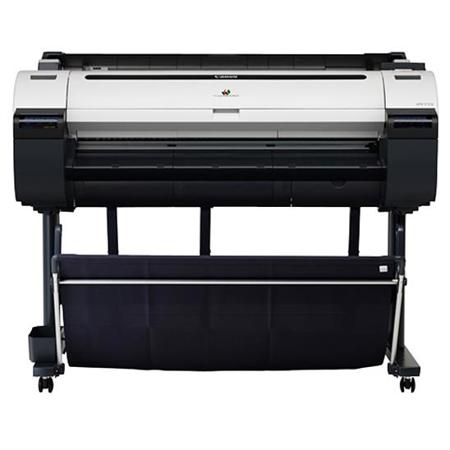

iPF770 36-inch Large Format Printer
The Canon imagePROGRAF iPF770 36-inch large format printer is an affordable model for entry-level users. Designed for technical and office applications, Canon's 5-color dye/pigment Reactive Ink technology utilizes four highly colorfast dye inks for producing bold, vibrant color, plus two channels of matte black ink for printing fine lines, smooth curves and small text on technical and office documents. A reformulated Magenta ink helps produce crisp, vivid red lines and texts, while also widening the color gamut in the red and orange spectrums. The iPF770 printer is capable of producing an A1 (23.39" x33.11") print in up to 25 seconds! Help reduce total ink consumption by utilizing the Economy Print Mode for producing draft prints on select media, which regulates the use of all inks to produce quick check plots while minimizing the cost per print. The iPF770 printer has the capability of accommodating 130ml ink tanks.

Touch Screen Monitor
A 22-inch flat panel multi-touch screen monitor is included in the system, helping to make it easy for the user to view accurate previews. This simple-to-use touch screen makes one-button scanning/copying easier than ever and the embedded USB ports provide a user with easy access. Full HD (1920 x 1080) experience with a 16:9 widescreen display.

Computer
A stand alone computer is included with the iPF MFP M40 system.

• Send scanned files directly to the PC for easy reprinting
• Add additional programs to the system
• Move files via a USB storage device
• Share files over a network via the Ethernet card

MFP Stand
The scanner stand connects directly to the printer stand to create a one piece structure and to reduce the total footprint of the iPF MFP system. The stand gives the user the flexibility to use an "all in one" configuration or to set up an independent scanner stand. The user can choose whether to place the monitor on the right or left side of the stand, as well as whether to use a straight or swing-arm orientation. When the monitor is set up using a swing-arm orientation, it can be positioned in two different heights. This single stand design eliminates the need to move the printer and scanner piece by piece when setting up or relocating the MFP.
