Canon iPF780 MFP M40 Specifications

  • Item Includes

    USB 2.0 High-Speed Interface for Printer, User Manual CD for Printer, Quick Start Guide, Reference Guide, Menu Map, Power Cord for Printer, Registration Card for Printer, PosterArtist Lite, User Software CD

  • Printer Type

    5-Color 36-inch Printer

  • Number of Nozzles

    Total: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each

  • Nozzle Pitch

    1,200 dpi
    Non-firing nozzle detection and compensation

  • Print Resolution (Up to)

    2400 x 1200 dpi (Max)

  • OS Compatibility

    Windows (XP/Vista/7/8)
    Macintosh (OSX 10.6.8-10.9X)

  • Standard Interfaces

    USB 2.0 High-Speed
    10/100/1000 Base-T/TX

  • Ink Droplet Size

    4 picoliter

  • Ink Droplet Size

    4 picoliter

  • Ink Capacity

    130ml or 300ml per color

  • Color Set

    Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black

  • Buffer Ram

    256MB

  • Media Width

    Cut Sheet - 8-36" (203.20-914.40mm)
    Roll Feed - 10-36" (254.00-914.40mm)

  • Media Thickness

    0.07-0.8mm (2.8-31.4mil)

  • Maximum Roll Print Length

    Roll Feed - 18m / 59.05'
    Cut Sheet 1.6m / 5.25'

  • Maximum Media Roll Diameter

    5.9" / 149.86mm

  • Borderless Printing Width

    10", B4, A3, 14", A2, 17", B2 (20.28" / 515.11mm), A1 (23.28" / 591.31mm), 24", A0 (33.11" / 841.00mm), B1, 36"

  • Paper Feed Method

    Roll Feed: One Roll, Top-loading, Front output
    Cut Sheet: One sheet, Top loading, Front output

  • Languages

    GARO (Canon Proprietary)

  • Noise Level Approx.

    Operation: 48 dB (A) or less
    Standby: 35 dB (A) or less
    Acoustic Power: Approx. 6.5 Bels

  • Power Source

    AC-100-240V (50-60Hz)

  • Power Consumption

    Maximum: 140W or less
    Standby 5W or less
    Power Off: .5W or less (Compliant with Executive Order)

  • Operating Environment

    Temperature: 59 deg. -86 deg. F (15 deg. -30 deg. C)
    Relative Humidity: 10-80% (No Condensation)

  • User-replaceable items

    Print Head: PF-04, Maintenance Cartridge: MC-10, Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK)

  • Software Included

    Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD

  • Scanner: Type

    Contact Image Sensor (CIS) technology

  • Scanner: Accuracy

    +/- 0.1%

  • Scanner Speed

    13 ips monochrome, 3 ips color at 200 dpi

  • Scanner: Optical Resolutions

    1200 dpi (Available resolutions 100, 200, 300, 400, 600, 1200)

  • Scanner: Max. Resolutions

    1200 dpi

  • Scanner: Max. Document Size

    Width: 42" document width (40" image width)

  • Scanner: Length

    315" (JPG/PDF), 598"(TIFF)

  • Scanner: Thickness

    0.079" (2mm)

  • Dimensions (H x W x D)

    42 x 51 x 35" / 1066.80 x 1295.40 x 889.00mm (When basket is open)
    42 x 51 x 43" / 1066.80 x 1295.40 x 1092.20mm (When basket is extended for flatbed stacking)

  • Weight

    Approx. 150lbs / 68.04kg (with stand)

54 Accessories for Canon imagePROGRAF iPF780 MFP M40 Large Format Photo Printer System with Computer, Touch-Screen Monitor and SmartWorks MFP Software - With Canon imagePROGRAF MFP Installation & 1-Yr Scan Warranty

  • All Accessories (54)
  • Ink & Toner (9)
  • Cleaning Accessories (1)
  • Maintenance Kit (1)
  • Printheads (1)
  • Sample Pack (6)
  • Printer Paper (13)
  • Photo Paper (2)
  • Cutters & Trimmers (4)
  • Gloves (3)
  • Storage & Presentation (8)
  • Protectors (3)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)
  • Printer Accessories (1)

About Canon iPF780 MFP M40

• Complete Scan-to-Print/File/Share Solution
• M40 Scanner
• SmartWorks MFP Software
• SmartWorks MFP Plus Software
• Direct Print & Share Cloud Portal Software
• iPF780 36-inch large format printer
• Touch Screen Monitor
• Computer
• MFP Stand
• imagePROGRAF Print Utility
• Accounting Manager
• Canon Printer Driver
• PosterArtist Lite
• PosterArtist
• Print Plug-in for Microsoft Office

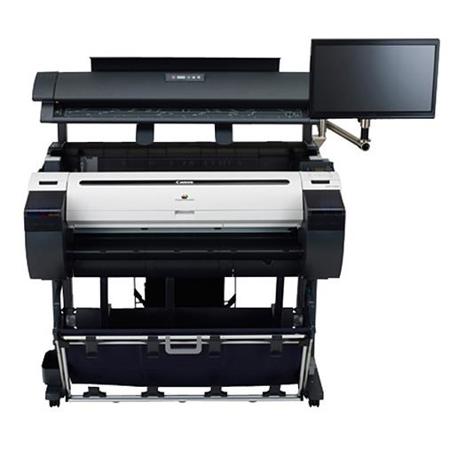

The Canon imagePROGRAF iPF780 MFP M40 is a large format imaging system that is designed to be a complete Scan-to-Print, File and Share solution. The system includes an imagePROGRAF iPF780 large format printer, M40 large format scanner, MFP stand, computer, SmartWorks MFP software and a large touch-screen monitor. This solution provides a fast and effective system for printing, copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs and posters.

This Multi-Function Product's advanced M40 scanner adds versatility to the product capabilities with the ability to scan documents up to 2mm thick, allowing users to scan more than just technical documents.

The versatile Canon imagePROGRAF iPF780 36-inch large format 5-color printer is designed for use by professionals in a variety of different markets including Computer-Aided Design; Architecture, Engineering and Construction; Geographical Information System and other technical document professional areas to produce large technical documents or posters in color.

Complete Scan-to-Print/File/Share Solution
The open architecture of the stand alone computer can be used to load additional programs, among other things.

A versatile system built for the way you work, the imagePROGRAF iPF MFP M40 includes:
• M40 Scanner
• iPF780 36-inch printer
• SmartWorks MFP software
• Stand alone computer
• Touch screen monitor
• MFP stand

M40 Scanner
The M40 scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.

• 1200 dpi optical resolution, 9600 dpi maximum resolution
• Image scanning of up to 40" wide, fits documents 42" wide
• Scans documents up to 315" in length as a JPEG or PDF file and up to 590" in length as a TIFF file
• Scanning speed of up to 13 inches per second monochrome, 3 inches per second color
• USB 3.0 interface, 75 Mbytes / sec transfer rate
• Scan documents up to 2.0 mm thick
• Face up / Front load / Rear exit
• Straight paper path

The M40 scanner contains a single component image sensor that is the full width of the scanner and has long life LED Bi-directional illumination.

SmartWorks MFP Software
With a simple to use interface and unique scan-it-once ability, SmartWorks MFP allows for efficient batch scanning and helps create quality scanned images that are produced in a short amount of time.

• Scan lengths of up to 315" (26 ft) for PDF and JPG files and up to 590" (49 ft) for TIFF files
• Ability to add custom presets with one-touch retrieval for those often-used settings
• New image enhancements for white point adjust, black point adjust, sharpen, mirror and invert
• Full integration with Canon Digital Print & Share cloud software

Users have more control over their workflow with access to editing functions such as invert, mirror and black and white point adjustments.

SmartWorks MFP Plus Software
Available as an optional add-on to SmartWorks MFP, this software includes many additional features to help enhance your multi-function workflow.

• Scan to multipage PDF and PDF/A
• Ability to open and print non SmartWorks MFP PDF files (through Direct Print & Share)
• RGB Color Adjustment capabilities in preview mode
• Auto crop feature that removes printer margins from a scan to create a true 1:1 ratio

Direct Print & Share Cloud Portal Software
Canon's Direct Print & Share software is a cloud portal solution that helps users to expand their printing workflow. Users are given the ability to upload documents to their own account using any WebDAV compliant cloud service and have those documents printed from almost anywhere. Users can set up multiple folders each with their own customized settings, allowing for multiple jobs to be run with ease.

iPF780 36-inch large format printer
Designed for technical and office applications, Canon's 5-color dye/pigment Reactive Ink technology utilizes four highly colorfast dye inks for producing bold, expressive color, plus two channels of black ink for printing precise lines, smooth curves and small text on technical and office documents. Help reduce total ink consumption by utilizing the Economy Print Mode for producing draft prints on select media, which regulates the use of all inks to produce quick check plots while minimizing the cost per print.

Touch Screen Monitor
A 22-inch flat panel multi-touch screen monitor is included in the system, helping to make it easy for the user to view accurate previews.

Computer
A stand alone computer is included with the iPF MFP M40 system.

• Send scanned files directly to the PC for easy reprinting
• Add additional programs to the system
• Move files via a USB storage device
• Share files over a network via the Ethernet card

MFP Stand
The scanner stand connects directly to the printer stand to create a one piece structure and to reduce the total footprint of the iPF MFP system. The stand gives the user the flexibility to use an "all in one" configuration or to set up an independent scanner stand. The user can choose whether to place the monitor on the right or left side of the stand, as well as whether to use a straight or swing-arm orientation.

imagePROGRAF Print Utility
imagePROGRAF Print Utility is Canon's mobile app for wireless printing via an Apple iPad to an imagePROGRAF printer. Through use of the app, users have the ability to preview their PDF file, utilize some of the great basic settings seen in their Canon Printer Driver such as selecting the number of copies, paper orientation and quality and then send their print to one of the imagePROGRAF 5-Color Printers sharing the same network.

Accounting Manager
Automatically tracks how much ink and media is being consumed when printing. Costs can be assigned to ink and paper to determine expenses based on "Cost of goods". The user can also input a variable cost that will be added to the total of the print cost.

Captured data includes
• Job Cost (ink, Media and variable cost inputted by user)
• Ink Consumed per Job
• Media Consumed per Job
• Job Completion time
• And more

Canon Printer Driver
The Real Preview feature helps ensure that the print setting and the layout on the roll paper is correct by providing real time preview, allowing users to change the print setting even after clicking "print." The Free Layout feature enables nesting and custom layouts of images or files of various types (available for both Windows and Macintosh drivers). The imageRUNNER Enlargement Copy feature built-in to the printer driver lets users transfer data from their Color imageRUNNER device with Universal Send to the imagePROGRAF printer - all with the touch of a button - enabling users to easily create posters from hard copy documents.

At a Glance
• Easy-to-use preset document profiles (examples are Poster, CAD, Photo)
• Automatic print quality options dependent on print application and media)
• Real Preview that lets users change document and printer settings after clicking "print")
• Page nesting feature with Free Layout for Windows and Macintosh)
• imageRUNNER Enlargement Copy feature - with a hot folder solution to print Color imageRUNNER PDFs directly )
• Economy Print Mode
• Borderless printing
• Easy setting/Advanced setting
• Optimized module for AutoCAD

PosterArtist Lite
Included PosterArtist Lite poster creation software helps users quickly and easily create professional large format posters. Users simply follow the program's 4 easy steps to create posters that can be used in applications such as office presentations, trade shows, retail signage and much, much more. The program includes pre-designed templates suited for a wide variety of markets, as well as royalty free images and clip art. The PosterArtist QuickCopy feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.

PosterArtist
For those with more demanding poster creation needs, Canon's optional PosterArtist offers advanced features such as Auto Design, Variable Data and in-application image editing features, as well as additional templates, royalty-free photos and clip art.

New features include
• Direct Print & Share cloud portal support
• New file format to allow for easy sharing of poster files

Print Plug-in for Microsoft Office
This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard". The Plug-i

What's in the box:

  • Canon Colortrac Scanner with Power Cord USB 3.0 Cable and USB 2.0 Cable
  • Scanner Stand
  • SmartWorks MFP Software
  • Computer
  • Touch-Screen Monitor
  • iPF780 Printer with Stand & Basket
  • 2 Roll Holder with 3 Core Adapters
  • Sample Cut Sheet Coated Paper (A2 Size/5 Sheets)
  • Print Head
  • Maintenance Cartridge
  • 5 Ink Tanks
  • Ethernet Card (Built In)
  • Canon 1 Year Limited Warranty (See Specs for More Included Items)
  • Canon imagePROGRAF MFP Installation & 1-Yr Scan Warranty
