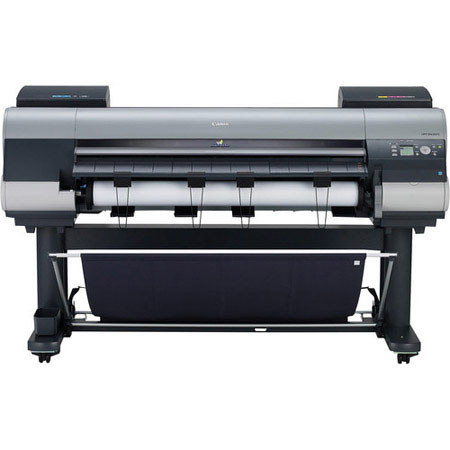

Canon iPF8400S Specifications

  • Printer Type

    8-Color 44" Printer

  • Number of Nozzles

    Total: 30,720
    C, PC, PM, GY: 5,120 nozzles each
    BK, MBK, Y, M: 2,560 nozzles each

  • Nozzle Pitch

    1,200 dpi Non-firing nozzle detection and compensation

  • Print Resolution (Up to)

    2400 x 1200 dpi (Max)

  • OS Compatibility

    Windows (XP/Vista/7/8), Macintosh (OSX)

  • Standard Interfaces

    USB 2.0 High-Speed
    10/100/1000 Base-T/TX

  • Ink Droplet Size

    4 picoliter
    LUCIA EX Ink (Pigment based)

  • Ink Capacity

    330 and 700ml per color available

  • Color Set

    Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray

  • Buffer Ram

    250GB / 384 MB

  • Media Width

    Cut Sheet: 8" - 44"
    Roll: 10" - 44"

  • Media Thickness

    Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
    Roll: 0.07 - 0.8mm (2.8 - 31.4mil)

  • Maximum Roll Print Length

    59' / 18m

  • Maximum Media Roll Diameter

    5.9" / 150mm

  • Borderless Printing Width

    515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"

  • Paper Feed Method

    Roll Feed: One Roll, front output
    Front Loading Manual Feed: One sheet, front output

  • Languages

    GARO (Canon Proprietary)

  • Noise Level Approx

    Operation: 50 dB (A) or less
    Acoustic Power: Approx. 6.8 Bels or less

  • Power Source

    AC-100-240V (50-60Hz)

  • Power Consumption

    Maximum: 190W or less

  • Operating Environment

    Temperature: 59deg.-86deg. F (15deg.-30deg. C)
    Relative Humidity: 10-80% (No Condensation)

  • User-replaceable items

    Print Head (PF-05), Maintenance Cartridge (MC-08), Durable Rotary Media Cutter (CT-06), Ink Tanks (PFI-306, PFI-706)

  • Software Included

    Canon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature, Color Calibration Management Console, Printer Driver Optimization Module for AutoCAD, Direct Print & Share

  • Dimensions (H x W x D)

    45 x 74.5 x 38.4" / 114.3 x 189.23 x 97.54cm

  • Weight

    315lbs / 142.9kg (Approx.) with stand

  • UPC Code

    013803131802

58 Accessories for Canon imagePROGRAF iPF8400S Large Format 44" Graphic Arts Printer, 2400x1200 dpi, USB 2.0/Ethernet, Supports Heavy Media up to 31.4 Mil

  • All Accessories (58)
  • Cutters & Trimmers (7)
  • Printheads (1)
  • Ink & Toner (12)
  • Cleaning Accessories (1)
  • Sample Pack (5)
  • Photo Paper (7)
  • Printer Paper (8)
  • Gloves (3)
  • Storage & Presentation (8)
  • Envelopes & Protectors (4)
  • Power Supply & Accessories (1)
  • Printer Accessories (1)

About Canon iPF8400S

An extremely versatile solution, the Canon 44" imagePROGRAF iPF8400S printer is ideal for those who need quality large format output and maximum productivity. Built for the commercial photography, signage display, reprographic and proofing markets, the iPF8400S printer delivers consistently superb results while increasing overall production. A large color spectrum is produced by the 8-Color LUCIA Ex pigment ink set, which also provides scratch resistance and smooth gradations.

The enhanced Multi-sensor allows for the printer to calibrate back to factory settings and is included with this printer to help provide improved color density detection. The Color Calibration Management System allows for color calibration targets to be created using the iPF6400S printer with optional SU-21 Spectrophotometer and shared across all new iPFX400S series 8-Color printers, while the included software allows for all printers on the network to be monitored from one central location.

The iPF8400S printer is up to 40% faster than the 12-Color line of imagePROGRAF Graphic Arts printers and achieves maximum productivity with large 330ml or 700ml ink tanks and a unique sub-ink tank system for replacing ink on-the-fly without stopping the printer. The iPF8400S printer is also equipped with a 250GB hard drive, geared to help increase productivity in high volume printing and streamlined workflows, while allowing for fast processing of large files as well as the ability to reprint jobs directly from the printer.

To expand printing options and capabilities, the iPF8400S printer comes bundled with Canon's PosterArtist Lite software for easy poster creation and an Accounting Manager tool that helps keep track of job cost. Also included is a Print Plug-in for Microsoft Office and a Print Plug-in for Adobe Photoshop, which includes an Adjustment Pattern Setting that allows for multiples of an image to be printed at once with different color values implemented and displayed. Gallery wrap-ready prints can now be created using the included Gallery Wrap Feature, found in the imagePROGRAF Layout Tool.

To help improve versatility, the iPF8400S printer has a media configuration tool which allows customers to not only utilize existing Canon-branded media, but also with non-Canon branded media. By combining Canon's technological achievements, the imagePROGRAF iPF8400S printer achieves consistently breathtaking, durable and long lasting prints.

Canon iPF8400S Features

  • LUCIA EX Ink Set: Canon's LUCIA EX Ink set is designed for dramatic photographic expression and detailed color reproduction for exacting proofing applications. This 8-Color ink set offers a brilliant range of vibrant colors, smooth gradations and transitions, with incredibly fine details
  • Color Calibration Management System: The Color Calibration Management Console is included for the centralized management of networked printers in a system from one easy to use software tool
  • Enhanced Multi-Sensor: This printer includes an upgraded, built-in color multi-sensor that's designed to offer even more precise calibration and color matching. Using a three-color LED and a recently developed condenser lens the sensor enables accurate recalibration of the device
  • Sub-ink Tank System: Utilizing the included sub-ink tanks, the iPF8400S printer keeps some ink in reserve so that even when the physical ink tanks run out of ink, printing can continue without interruption and the tanks can be replaced on the fly
  • Fast Draft Printing Mode: The Draft Mode produces 1200 x 1200 dpi output at up to 381ft/hr on coated and uncoated paper stocks while reducing ink consumption by 10% to 20% versus standard mode
  • Fast Economy Printing: Help reduce total ink consumption by utilizing the Economy Printing Mode for producing draft prints on select media. This feature helps increase overall speed and regulates the use of all colors to produce quick check plots while minimizing the cost per print
  • 250GB Hard Drive: A built-in 250GB hard drive within the printer helps increase productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval. This enables job data to be stored in protected mailboxes for easy access via web browser
  • PosterArtist Lite: Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints
  • Direct Print & Share Cloud Portal Software: Canon's Direct Print & Share software is a cloud portal solution that helps users to expand their printing workflow
  • Accounting Manager: The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel so the data can be used for billing purposes
  • Print Plug-in for Adobe Photoshop: This export module allows 16-bit image processing, preserving the expanded color spectrum and high gradation of the file. The Print Plug-in also helps reduce the possibility of incorrect settings
  • Gallery Wrap: This creative tool can be accessed via Adobe Photoshop (not included) and allows users to easily create gallery wrap prints for framing, as well as creative options that will expand output possibilities
  • Media Configuration Tool: It has developed a Media Configuration Tool, which allows customers to not only utilize Canon-branded media, but provides the ability to make adjustments to printer settings to enhance the precision and quality of output achieved with non Canon branded media
  • Print Plug in for Microsoft Office: This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow "Wizard"
  • PosterArtist (Optional): For those with more demanding poster creation needs, Canon's optional PosterArtist offers advanced features such as Auto Design, Variable Data and in-application image editing features, as well as additional templates, royalty-free photos and clip art

Key Features

  • Direct Print & Share Cloud Portal Software
  • Color Calibration Management System
  • Print Plug in for Microsoft Office
  • Print Plug-in for Adobe Photoshop
  • Fast Draft Printing Mode
  • Media Configuration Tool

What's in the box:

  • Canon imagePROGRAF iPF8400S Graphic Arts Printer
  • Stand
  • Basket
  • 2" Roll Holder with 3" Core Adapters
  • Print Heads (2)
  • Maintenance Cartridge (Installed)
  • 330ml Ink Tanks (BK/MBK/C/M/Y/PC/PM/GY)
  • Sample Roll Heavyweight Coated Paper
  • Ethernet Card (Built in)
  • USB 2.0 High Speed Interface
  • Power Cord
  • Canon 1 Year Warranty
