Canon imagePROGRAF PRO-6100 Specifications

Print
  • Printing Technology

    FINE: Full-Photolithography Inkjet Nozzle Engineering

  • Head Configuration

    12-Channel Integrated Type

  • Nozzle Configuration

    1,536 Nozzles x 12 Channels, Total: 18,432

  • Droplet Size

    Minimum 4 Picoliters per Color

  • Maximum Print Resolution

    Up to 2400 x 1200 dpi

  • Ink Information

    Type: Pigment Based LUCIA PRO Ink Technology
    PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, + CO
    PFI-1300 (330 ml): PBK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, + CO
    PFI-1700 (700 ml): PBK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, + CO

  • Media Handling

    Front-Loading Automatic Roll Feed: One Roll, Front Output
    Front-Loading Automatic Feed: Front Loading, Front Output

  • Media Width

    8" - 60" (Cut-Sheet and Roll)

  • Minimum Print Length

    8"

  • Maximum Print Length

    Roll Feed: 59' (18m) (Single Page)

  • Borderless Printing Widths

    No Size Restriction - 0"/14"/17"/24"/36"/42"/44"/46"/48"/56"/60" + Micro Margin (Roll Media Only)

  • Media Thickness

    0.07 mm - 0.8 mm

  • Media Core Sizes

    2" or 3" Core (with supplied adapter)

  • Printable Margins

    Roll Paper:
    Top: 3 mm; Bottom: 3 mm; Side: 3 mm

    Borderless:
    Top: 0mm; Bottom: 0mm; Sides: 0mm

    Cut-Sheet:
    Top: 3 mm; Bottom: 20 mm; Side: 3 mm

General

Jump to...
  • General Features

    60" Wide Printer with Stand, 12 Individual Ink Tanks, PF-10 Print Head (1) with Non-Firing and Compensation Function, L-COA PRO Image Processing Engine, Color Density Sensor for Calibration

  • Printer Memory

    3 GB (Standard)

  • Hard Disk Capacity

    500 GB

  • Display

    4.3" Color LCD Touch-screen

  • Acoustic Noise

    Operation: approx. 48 dB (A) (Glossy paper, Image, Print priority: Standard)
    Standby: 35 dB (A) or less

  • Power Supply

    AC 100-240 V (50-60 Hz)

  • Power Consumption

    97W or less
    2.0 W or less (Wired LAN connected)
    0.3 W or Less (Executive Order Compliant)
    Powered off: 0.3W or less

  • Environmental Certifications

    ENERGY STAR (Worldwide)

  • Operational Environment Temperature

    59 - 86 Degree F (15 - 30 Degree C)

  • Interfaces

    USB 2.0 High Speed
    Ethernet: 10/100/1000 Base-T/TX, WiFi

  • OS Compatibility

    Computer Operating Systems:
    32-bit: Windows Vista/7/8.1/10
    64-bit: Windows Vista/7/8/8.1/10 Windows Server 2008R2, Windows Server 2012/2012R2
    Windows Server 2016, Windows Server 2019
    OS X 10.10.5-OS10.11, macOS 10.12-macOS 10.14

  • Software (Mac/Windows Available)

    Professional Print & Layout
    Direct Print & Share (PC only)
    PRO Series Printer Driver
    Accounting Manager (PC Only)
    PosterArtist Lite
    Easy Photo & Print Editor
    Free Layout Plus (With Plug-in for Microsoft Office)
    Device Management Console
    Media Configuration Tool
    Canon PRINT Inkjet/SELPHY
    Quick Utility Toolbox

  • Firmware

    Printer Languages
    Printer Language: SGRaster

Physical

Jump to...
  • Dimensions (H x W x D)

    46 x 78.7 x 38.7" (116.8 x 200 x 98.2cm) (with basket open)

  • Weight

    Approx. 368 lb (167kg) (roll holder included, no inks, no print heads)

  • Print Head

    PF-10

  • Compatibility

    Pigment Ink Tank PFI-1100 B, PFI-1100 C, PFI-1100 CO, PFI-1100 GY, PFI-1100 M, PFI-1100 MBK, PFI-1100 PBK, PFI-1100 PC, PFI-1100 PGY, PFI-1100 PM, PFI-1100 R, PFI-1100 Y, PFI-1300 B, PFI-1300 C, PFI-1300 CO, PFI-1300 GY, PFI-1300 M, PFI-1300 MBK, PFI-1300 PBK, PFI-1300 PC, PFI-1300 PGY, PFI-1300 PM, PFI-1300 R, PFI-1300 Y, PFI-1700 B, PFI-1700 C, PFI-1700 CO, PFI-1700 GY, PFI-1700 M, PFI-1700 MBK, PFI-1700 PBK, PFI-1700 PC, PFI-1700 PGY, PFI-1700 PM, PFI-1700 R, PFI-1700 Y

  • UPC Code

    660685207394

93 Accessories for Canon imagePROGRAF PRO-6100 11-Color 60" Large Format Inkjet Printer

  • All Accessories (93)
  • Extended Warranty (2)
  • Ink & Toner (35)
  • PrintHead (1)
  • Replacement Parts (1)
  • Cutters & Trimmers (7)
  • Cleaning Accessories (1)
  • Printer Paper (16)
  • Sample Pack (5)
  • Photo Paper (2)
  • Gloves (3)
  • Storage & Presentation (8)
  • Protectors (3)
  • Envelopes & Protectors (1)
  • Power Supply & Accessories (1)
  • Cables & Adapters (5)
  • Software (1)
  • Installation Service (1)

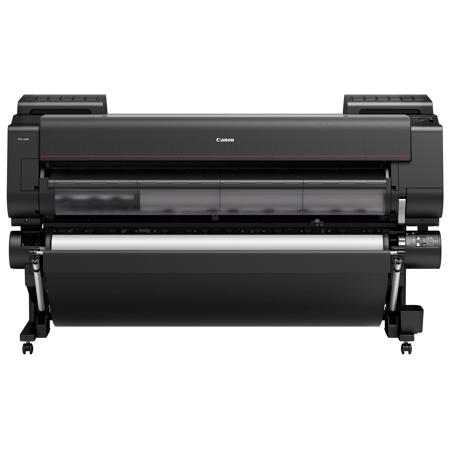

About Canon imagePROGRAF PRO-6100

Take your printing capabilities to the next level with the imagePROGRAF PRO-6100 11-Color 60" Large Format Inkjet Printer. This 60-inch printer is engineered to surpass expectations in image quality and color consistency, making it an ideal choice for professionals seeking a large format printer.

The imagePROGRAF PRO-6100 is equipped with a 1.28-inch wide 12-channel integrated compact print head, a LUCIA PRO ink set, and a Chroma Optimizer. These features, combined with a high-precision mechanical platform and the L-COA PRO high-speed image processing engine, deliver a perfect balance between exceptional print quality and speed.

This printer is designed with intelligent technology for advanced media handling, increased security features, borderless printing, and an improved operational design. For the first time in an imagePROGRAF printer, you can load and recognize paper without human intervention. Simply set the roll holder in the printer and let the media automatically feed into the print.

The imagePROGRAF PRO-6100 also features an innovative Remaining Media Estimation system that accurately measures the remaining media on a roll, saving both ink and media. The large 4.3" LCD operation panel utilizes smart phone touch screen technology for easy operation, with the top three most-used commands: Load, Feed and Cut, having their own dedicated buttons for convenience.

The LUCIA PRO ink set adopts 11-color pigment inks and a Chroma Optimizer, designed to meet the demands of even the most critical photographer. This ink set enhances gloss uniformity, improves scratch resistance, enhances dark area reproduction, and reduces graininess.

The PRO Series is designed to work seamlessly when changing media types. Matte black and Photo black inks have their own dedicated nozzles, so no manual switching between ink tanks is necessary. You can print on fine art paper then glossy paper with no worries, no changes, and no waste.

The PF-10, a 1.28"-wide print head with 18,432 nozzles equipped with anti-clogging FINE technology, generates fast print speeds while reducing the possibility of clogging. The imagePROGRAF printers are powered by the L-COA PRO high-speed image processing engine, which performs the processing of massive image data, and controls the optimal ink layout that produces high resolution prints.

The printer includes an upgraded, built-in color densitometer that offers precise calibration and color matching. The Device Management Console software, ideal for fleet management, lets you perform color calibrations remotely. This software lets you monitor the printer status of up to 50 units from any location in the world.

The imagePROGRAF PRO-6100 also features a high precision mechanical platform, a multifunction roll system, Wi-Fi connectivity, the ability to print from a USB thumb drive, high capacity ink tanks, a sub-ink tank system, a multipositional basket, and a built-in 500 GB hard drive. These features make the imagePROGRAF PRO-6100 a versatile and efficient solution for all your large format printing needs.

Canon imagePROGRAF PRO-6100 Features

  • Intelligent Media Loading
  • Remaining Media Estimation
  • New Operation Panel
  • Enhanced Security
  • LUCIA PRO Ink Set
  • No Switching of Black Inks
  • PF-10 Print Head
  • L-COA PRO High-Speed Image Processing Engine
  • Color Calibration
  • High Precision Mechanical Platform
  • Multifunction Roll System
  • Wi-Fi Connection
  • Print From USB Thumb Drive
  • High Capacity Ink Tanks
  • Sub-Ink Tank System
  • Multipositional Basket
  • 500 GB Hard Drive

Product Documents

User Manual

Key Features

  • Intelligent technology for advanced media handling and borderless printing
  • LUCIA PRO 11-color pigment ink set and Chroma Optimizer for exceptional image quality
  • Built-in color densitometer for precise calibration and color matching
  • Wi-Fi connectivity and USB thumb drive printing for enhanced convenience
  • Equipped with a 500GB hard drive for efficient print job data storage and retrieval

What's in the box:

  • imagePROGRAF PRO-6100 60 " Printer
  • Multifunction Roll Unit with Tools
  • Stand
  • Tools & Screws
  • US AC Power Cable
  • Print Head PF-10
  • 330ml Starter Ink Tanks (MBK/BK/C/M/Y/PC/PM/GY/PGY/R/B/CO)
  • 2 " Roll Holder with 3 " Core Adapters
  • Safety & Environmental Sheet
  • Printer Stand Setup Guide
  • Print Head Alignment Sheet
  • USB Connection Sheet
  • Software Discs
  • Sample Media (5 Sheets A2 Size)
  • Media Compatibility Sheet
  • iWR Service Terms Leaflet
  • Canon 1 Year Limited Warranty
