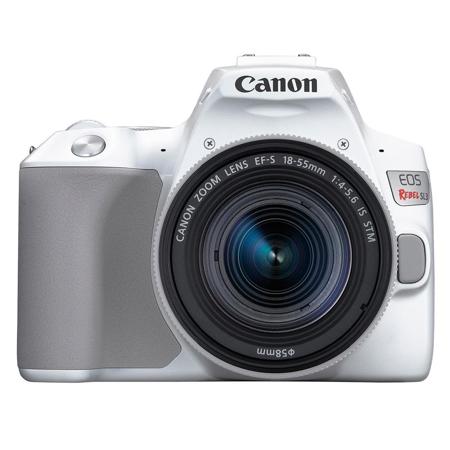

Canon EOS Rebel SL3 DSLR Camera with EF-S 18-55mm f/4-5.6 IS STM Lens - White

Digital AF/AE single-lens reflex camera with built-in flash Recording Media

SD/SDHC/SDXC memory cards
SD speed class-compatible
UHS-I speed class-compatible
High-speed writing is supported when a UHS-I compatible SD card is used
Compatible with Eye-Fi cards
Multimedia cards (MMC) cannot be used (card error will be displayed)

Approx. 22.3 x 14.9mm (APS-C)

Canon EF lenses (including EF-S lenses, excluding EF-M lenses)

Canon EF mount

CMOS sensor (supporting Dual Pixel CMOS AF)

Approx. 24.2 megapixels

Approx. 3.72 m square

Approx. 25.8 megapixels

3:2 (Horizontal : Vertical)

RGB primary color filters

Installed in front of the image sensor, non-detachable

(1) Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning activated automatically (taking approx. 2 sec.) when power is turned on or off. Manual operation also possible (taking approx. 8 sec.).
After the cleaning is performed, the camera will automatically restart (Power OFF to ON).
When you use Multi Shot Noise Reduction, Clean now cannot be selected

(2) Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
(3) Manual cleaning (by hand)

Compliant to Design rule for Camera File system 2.0 and Exif 2.3

JPEG, RAW (14-bit Canon original), C-RAW (Canon original)

3:2 Aspect Ratio
Large: 6000 x 4000
Medium: 3984 x 2656
Small 1: 2976 x 1984
Small 2: 2400 x 1600
RAW: 6000 x 4000
4:3 Aspect Ratio
Large: 5328 x 4000 (approx.)
Medium: 3552 x 2664
Small 1: 2656 x 1992
Small 2: 2112 x 1600 (approx.)
RAW: 6000 x 4000

16:9 Aspect Ratio
Large: 6000 x 3368 (approx.)
Medium: 3984 x 2240 (approx.)
Small 1: 2976 x 1680 (approx.)
Small 2: 2400 x 1344 (approx.)
RAW: 6000 x 4000
1:1 Aspect Ratio
Large: 4000 x 4000
Medium: 2656 x 2656
Small 1: 1984 x 1984
Small 2: 1600 x 1600
RAW: 6000 x 4000

File numbering can be set as follows:
File numbering methods
Continuous numbering
The numbering of captured images continues even after you replace the card
Auto reset
When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card
Manual reset
Resets the file number to 0001, and creates a new folder automatically

Simultaneous recording is possible using a combination of RAW and JPEG/Large(Fine)

sRGB/Adobe RGB

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3
In Basic Zone modes, [Auto] will be set for and of the mode, and [Standard] will be set for other modes
In Creative Zone modes, you can select or set the Picture Style
[Auto] is the default setting for [User Def. 1-3]

Auto (Ambience priority/White priority)
Daylight
Shade
Cloudy (Effective also in twilight and sunset)
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)

Option between ambience priority and white priority settings

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Corrected in reference to the current WB mode's color temperature

Eye-level SLR (with fixed pentaprism)

Approx. 95% vertical/horizontal coverage (at approx. 19mm eye point and Large image size)

Approx. 0.87x/24.5deg. (with 50mm lens at infinity, -1 m-1)

Approx. 19 mm (At -1m-1 from the eyepiece lens center)

Adjustable from approx. -3.0 to +1.0 m-1 (dpt)

Fixed

Quick-return half mirror (transmission: reflection ratio of 40:60)

Spot metering circle, AF point activation indicator, AF point, ISO speed indicator, Focus indicator, Maximum burst, ISO speed, Highlight tone priority, Exposure level indicator, Exposure compensation amount, AEB range, Red-eye reduction lamp ON, Exposure compensation, Aperture, Shutter speed, Bulb exposure

FE lock, Busy, Built-in flash recharging, No card warning, Card error, Card full warning, error code, Flash exposure compensation, High-speed sync, FE lock / FEB in-progress, Flash-ready, Improper FE lock warning, AE lock, AEB in-progress, Warning icon

Provided with depth of field preview button

TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

9 points
Center AF point is AF cross-type supporting f/5.6
Center AF point is vertical line-sensitive supporting f/2.8
Other AF points is vertical line-sensitive or horizontal line-sensitive AF supporting f/5.6

With One-Shot AF, at 73deg.F/23deg.C, ISO 100
EV -0.5-18 (center AF point)
EV 0.5-18 (other AF points)
(Based on Canon s testing standards and environment)

Autofocus
One-Shot AF
Predictive AI Servo AF
AI Focus AF
Switches between One-Shot AF and AI Servo AF automatically
Manual focus

Manual selection
Auto selection
Manually selectable in Basic Zone modes (except Special Scene Candlelight and Creative Filters Fish-eye effect and Miniature effect)

1) Built-in flash
Not supported
(2) External flash
Infrared
Intermittent firing

63-zone metering sensor
Evaluative metering (linked to all AF points)
Partial metering (center, approx. 9.0% of viewfinder)
Spot metering (center, approx. 4.0% of viewfinder)
Center-weighted average metering

EV 1.0 - EV 20.0 (at 73deg.F/23deg.C, ISO 100, evaluative metering)

Creative Zone, Program AE (shiftable), Shutter-priority AE, Aperture-priority AE, Manual exposure (including bulb), Basic Zone, Scene Intelligent Auto (Program AE/ non-shiftable), Flash Off, Creative Auto, Special Scene, Portrait, Group Photo, Landscape, Sports, Kids, Close-up, Food, Candlelight, Night Portrait

Handheld Night Scene, HDR Backlight Control, Creative Filters, Grainy B/W, Soft Focus, Fish-eye effect, Water painting effect, Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed

Manual Setting:
Normal: ISO 100 25600 (in whole-stop increments)
Expanded: ISO 51200

Manual: +/-5 stops in 1/3- or 1/2-stop increments
AEB: +/-3 stops in 1/3- or 1/2-stop increments

Auto AE lock
In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
Manual AE lock
In the P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
Possible with all metering modes

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled

1/4000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay, continuous shooting after 10 sec. (2 to 10 shots)

With SW-1 ON, time lag between SW-2 ON and start of exposure: approx. 0.075 sec.
Time lag with the aperture stopped down by 3 stops or less from the open aperture

E-TTL II autoflash (Evaluative, Average), FE Lock

+/-2 stops in 1/3- or 1/2-stop increments
Flash exposure compensation for built-in flash and external Speedlite can be set from the camera

Provided

The camera can set the following with EX series Speedlites:
The actual setting options will differ depending on the Speedlite used.
(1) External flash control
Flash firing, E-TTL II metering, Flash mode, Wireless functions, Flash zoom, Shutter synchronization, Flash exposure compensation, Flash exposure bracketing and Clear settings.
The radio wireless flash functions can be set from the camera

(2) External flash Custom Function setting
The setting options for both (1) and (2) will differ depending on the Speedlite used

Single shooting
High-speed continuous shooting
Max. approx. 5.0 shots/sec. (One-Shot AF and AI Servo AF)
Maximum continuous shooting speed with 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E17 and at room temperature (73Adeg. F/23Adeg. C)

With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM
Silent single shooting
Silent continuous shooting
Max. approx. 2.5 shots/sec
Self-timer: 10 sec./remote control

Compatible with Wireless Remote Controller BR-E1
Incompatible with accessories using the infrared transmission system as Remote Controller RC-6
2 sec. self-timer
Continuous shooting after 10 sec. self-timer (2 to 10 shots)

Still photo shooting and video shooting

Dual Pixel CMOS AF
Dual Pixel CMOS AF is possible with all EF and EF-S lenses
Contrast AF is not provided
Manual focus
Magnifying the image by 5x or 10x for manual focus possible

Real-time metering with image sensor
AE lock possible. The metering timer setting can be changed
Evaluative metering (315-zone)
Partial metering (center, approx. 6.0% of Live View screen)
Spot metering (center, approx. 2.6% of Live View screen)
Center-weighted average metering
AE lock possible. The metering timer setting can be changed

EV 0-20 (at 73deg. F/23deg. C, ISO 100, evaluative metering)

Off
3x3
6x4
3x3+diag

MP4
Video: MPEG-4 AVC / H.264
Variable (averaged) bit rate
Audio: AAC
MOV: ALL-I (FHD 29.97, time-lapse movies only)

Full range (0-255)

TFT color, liquid-crystal monitor

3.0" (screen aspect ratio of 3:2)
Approx. 2.95"/7.50cm diagonal (approx. 2.46"/6.24cm width, approx. 1.64 in/4.16cm height)

Approx. 1.04 million dots

Approx. 170deg. vertically and horizontally

Adjustable to one of seven brightness levels

Clear View LCD II

25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Single-image display
No information display
Basic information display
Detailed shooting information display
Basic shooting information
Lens information and RGB histogram
White balance
Picture Style and sharpness
Contrast, color saturation and color tone
Color space and noise reduction
Lens aberration correction
GPS information (when GPS Receiver is used)
Index display
4-image
9-image
36-image
100-image

With detailed information display, overexposed highlight areas with no image data will blink

Brightness and RGB

Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback. After selecting an item, you can select contents by operating the Main Dial

Single image (select image)
Select range
All images in a folder
All images in a card
All found images (only during image search)

Except protected images
Select image to erase
Select range
All images in a folder
All images in a card
All found images (only during image search)

Images can be sent via Wi-Fi to a PictBridge-compatible (Wireless LAN) printer and printed

Complies to DPOF Version 1.1

Hi-Speed USB (USB 2.0)
For PC communication
For Connect Station connection

Type C (Resolution switches automatically)
Video is not displayed unless the video system is correctly set for the connected TV set, [NTSC] or [PAL]

3.5mm diameter stereo mini jack
Directional Stereo Microphone DM-E1 connection

Battery Pack LP-E17 x 1
With the AC Adapter AC-E6N and DC Coupler DR-E18, AC power operation is possible

Automatic battery check when the power switch is turned ON. Displayed in 4 levels

Power turns off after the set time (10/30 or 30 sec., 1, 2, 4, 8 or 15 min.) of non-operation elapses

Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months
Recharge time: approx. 8 hrs.
To become capable to maintain the right date/time for 3 months after main battery power depletion

Approx. 0.2 sec. (based on CIPA testing standards)

32 to 104deg. F (0 to 40deg. C)

85% or less

required, included

lithium ion

1

non-universal

Approx. 4.82 x 3.65 x 2.75" (12.24 x 9.27 x 6.99cm)

Body only: Approx. 14.32 oz (405.96g)
Including battery and card: Approx. 15.98 oz (453.02g)
