Canon imagePROGRAF TM-240 Specifications

Lm24 Scanner

Lm24 Scanner

Jump to...
  • Scan Technology

    SingleSensor with multiple LED Illumination

  • Maximum Resolution (dpi)

    600dpi

  • Scan Speed

    COPY:
    300/300dpi Draft = 1ips color, 3ips mono
    300/600dpi Standard = 1ips color, 3ips mono
    600/600dpi Best = 0.5ips color, 1.5ips mono

    SCAN:
    200dpi Draft = 1ips color, 3ips mono
    300dpi Standard = 0.5ips color, 1.5ips mono
    600dpi Best = 0.33ips color, 1ips mono

  • Scan Modes

    Scan to USB - RGB/Grayscale/BW, TIFF (No ScanApp)
    Scan to USB - RGB/Grayscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp available)
    Scan to PC - RGB/Grayscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF
    Copy - RGB/Grayscale/BW
    Copy & Archive - (Combination of Copy and Scan to PC above).
    Cloud connectivity is achieved by a link to Canon's Direct Print & Share.
    PRINT is achieved by using Canon's Direct Print & Share.

  • Paper Path

    Face up, rear exit. Forward document transport only
    Document return guide(s) included

  • Maximum Scan Width

    24" (609.6mm)

  • Minimum Scan Width

    6.2" (157.4mm)

  • Maximum Document Width

    26" (660.4mm)

  • Maximum Scan Length

    109" (2768mm)

  • Document Thickness

    Designed to scan Canon iPF printer CAD paper.
    Min = 0.5mm
    Max = 0.8mm

  • Scan Accuracy

    Accuracy 0.2% +/-1 pixel

  • Interface USB

    USB2, 128GB FAT32.

  • Scan to Network

    ScanApp - Sets scan directory.
    Minimum PC specification:
    Windows 7/8/10 - 32bit.
    100Mbs Ethernet.
    Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors
    2GB RAM
    High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.

  • Scan to Network (Cont.)

    ScanApp
    English/French/German/Italian/Spanish/Simplified Chinese/Traditional Chinese/Korean/Russian/Portuguese/ Japanese/Czech/Polish

    Suggested PC specification:
    Windows 7/8/10 - 64bit.
    GB Ethernet.
    Intel i3,i5 or i7 processors
    4GB RAM
    High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images.

  • Languages

    ScanApp
    English/French/German/Italian/Spanish/Simplified Chinese/Traditional Chinese/Korean/Russian/Portuguese/ Japanese/Czech/Polish

  • Control Panel

    3" touch screen display

  • Compliances

    Europe : CE mark, Other countries : CB certification

  • Dimensions

    Width: 48.74" (1238mm)
    Height: 5.15" (131mm)
    Depth:
    Without Doc Return Guide - Paper tray folded: 5.74" (146mm)
    Without Doc Return Guide - Paper Tray flat: 7.59" (193mm)
    With Doc Return Guide - Paper tray folded: 8.11" (206mm)
    With Doc Return Guide - Paper Tray flat: 9.96" (253mm)

  • Weight

    11.6 lbs (5.28kg) (Without Doc return guide)

TM-240: Printer Technology

Jump to...
  • Printer Type

    5 Colors 24" (60.96cm)

  • Print Technology

    Canon Bubblejet on Demand 6 colors integrated type (6 chips per print head x 1 print head)

  • Print Resolution

    2,400 x 1,200 dpi

  • Number of Nozzles

    Total: 15360 nozzles
    MBK: 5120 nozzles
    BK, C, M, Y: 2560 nozzles each

  • Line Accuracy

    +/-0.1% or less
    User adjustments necessary. Printing environment and media must match those used for the adjustments.

  • Nozzle Pitch

    1,200 dpi x 2 lines

  • Ink Droplet Size

    Minimum 5pl per color

  • Ink Capacity

    Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
    Sales Ink: 55ml (MBK, BK, C, M, Y)

  • Ink Type

    Pigment inks: 5 colors MBK/BK/C/M/Y

  • OS Compatibility

    32 Bit: Windows7, Windows 8.1, Windows 10
    64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
    Apple Macintosh: macOS 10.15.7 - macOS 13

  • Other Supported Job Submission Protocols

    Apple AirPrint

  • Printer Languages

    HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

  • Standard Interfaces

    USB A Port: N/A
    USB B Port: Hi-Speed USB
    Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
    Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

TM-240: Memory

Jump to...
  • Standard Memory

    2GB
    Expansion slot: No

TM-240: Print Speed

Jump to...
  • CAD Drawing

    Plain Paper (A1):
    0:23 (Fast Economy Mode)
    0:25 (Fast)
    0:51 (Standard)

  • Poster

    Plain Paper (A1)
    0:25 (Fast Economy Mode)
    0:25 (Fast)
    0:49 (Standard

    Heavy Coated Paper (A1)
    0:56 (Fast)
    1:45 (Standard)

TM-240: Media Handling

Jump to...
  • Media Feed and Output

    Roll Paper: One Roll, Upper-loading, Front Output
    Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

  • Media Width

    Roll paper: 203.2 - 610mm
    Cut sheet: 210 - 610mm

  • Media Thickness

    Roll/Cut: 0.07mm - 0.8mm

  • Minimum Printable Length

    Roll paper: 203.2mm
    Cut sheet: 279.4mm

  • Maximum Printable Length

    Roll paper: 18m (varies according to the OS and application)
    Cut sheet: 1.6m

  • Maximum Media Roll Diameter

    150mm

  • Media Core Size

    Internal diameter of roll core: 2"/3" (Optional)

  • Margins Recommended Area

    Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
    Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
    Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm

  • Margins Printable Area

    Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
    Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
    Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
    Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

  • Media Feed Capacity

    Roll Paper: One roll
    Cut Sheet: 1 sheet

  • Borderless Printing Width (Roll Only)

    [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
    [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm
    Other than above, free size borderless printing is supported on only roll paper by user definition

  • Maximum Number of Delivered Prints

    Standard position - 1 sheet

TM-240: Power & Operating Requirements

Jump to...
  • Power Supply

    AC 100-240V (50-60Hz)

  • Power Consumption

    Operation: 59W or less
    Sleep mode: 2.2W or less
    Default setting for the time to enter the Sleep mode: Approx. 5 minutes
    Power off: 0.1W or less

  • Operating Environment

    Temperature: 59-86 Degree F (15-30 Degree C), Humidity: 10-80% RH (no dew condensation)

  • Acoustic Noise (Power/Pressure)

    Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
    (Measured based on ISO7779 standard)

    Standby: 35 dB(A) or less

    Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
    (Measured based on ISO7779 standard)

  • Regulations

    CE mark, UKCA mark

  • Environment Certificates

    CB certification, EPEAT GOLD

TM-240: Software

Jump to...
  • Software Included

    Software available as Download from Web

TM-240: Consumables

Jump to...
  • User Replaceable Items

    Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml)
    Print Head: PF-06
    Cutter Blade: CT-08
    Maintenance Cartridge: MC-31

TM-240: Physical

Jump to...
  • Dimensions (W x D x H)

    Main unit + Stand + Basket (SD-24):
    38.5 x 34.17 x 41.73" (978 x 868 x 1060mm) (Operation panel is not tilted up/Basket Opened)
    38.5 x 29.76 x 41.73" (978 x 756 x 1060mm) (Operation panel is not tilted up/Basket Closed)

  • Weight

    112.2 lbs (50.9kg) (including Roll Holder Set, excluding ink and print head)

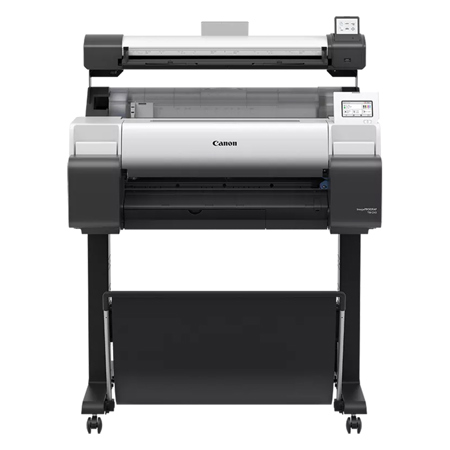

About Canon imagePROGRAF TM-240

Print Beyond the Everyday

The new imagePROGRAF TM Series offers versatility and productivity to help meet the growing demands of today’s marketplace. With a range of models, this series allows you to easily produce CAD documents, posters, banners, flyers, and more.

New Magenta Ink

Equipped with newly formulated magenta ink, these printers achieve excellent red color development. The printers produce highly visible posters, making it possible to create attention-grabbing retail POPs and engaging office displays. The use of pigment ink for all colors helps to ensure that prints do not easily fade over time, making them suitable for long-term display, and also provides water resistance for outdoor use.

ICATM240LMS

Color Calibration

The ability to calibrate your printer for consistent color quality is now available in the imagePROGRAF TM Series. This helps ensure your output is color consistent over time and across multiple TM Series devices.

ICATM240LMS

Speed

With the new L-COA PRO II processor, the new imagePROGRAF TM Series is approximately 30 percent faster than previous models with a speed of up to 3.2 ppm for an Arch D size sheet (24” x 36”).

ICATM240LMS

Ease of Use

The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, fullfrontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, media indicator levels, and other setting prompts all on the home screen!

ICATM240LMS

Environmentally Conscious

Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging.

ICATM240LMS

Automatic Paper Detection

The new imagePROGRAF TM Series is able to determine the media type, length, and width, and displays this information on the user interface home screen.

ICATM240LMS

Scanning Lm24/Lm36 Solutions

ICATM240LMS

Support thicker media than previous models

ICATM240LMS

Tilt Screen with simplified navigation User Interface

Features

  • 5-Color LUCIA TD Pigment Ink
  • Print Speed of approximately 2.4 - 3.2 ppm
  • Color Calibration
  • Automatic Paper Detection (Type/Length/Width)
  • Fat-top body design with tilt touchscreen
  • EPEAT Gold Registered
  • Scanning speed of up to 3.0 inches per second
  • monochrome, 1.0 inch per second color
  • Multi-color 3” LCD touchscreen user interface
  • SingleSensor technology (up to 600 dpi)
  • Scan documents up to 0.8 mm thick
  • ScanAppL

Key Features

  • High-resolution large-format prints with 2400 x 1200 dpi clarity
  • Wireless and Ethernet connectivity for easy device integration
  • Advanced 3" and 4.3" touchscreen panels for effortless navigation
  • Simultaneous printing and scanning for increased productivity
  • New magenta ink for vivid reds and sharper image quality
  • Borderless printing capability for full-bleed images directly from the printer

What's in the box:

  • Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet MFP Printer
  • Lm24 Scanner
  • Print Head
  • Power Cable
  • Set of Starter Ink Tanks
  • Stand & Basket
  • Printer Mounting Brackets
  • 2x Feet for Desktop Use
  • Calibration Target
  • CD for ScanApp Software and PDF Documentation
  • Ethernet Cable (2m)
  • Power Supply
  • Mains Power Cord (2m)
  • User Manual
  • Canon 1 Year Limited Warranty
