Kit Savings

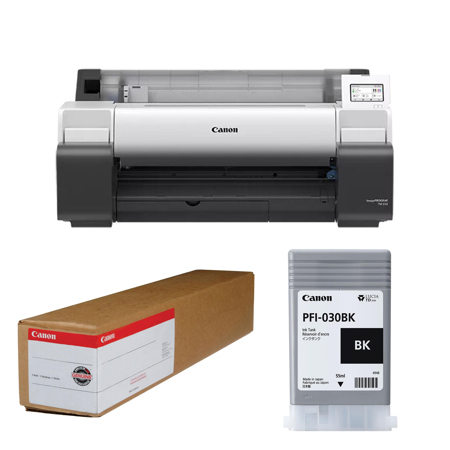

Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer, Bundle with 24"x100' Satin Photographic Paper and PFI-030 Pigment Black Ink Tank

SKU: ICATM240PB2 MFR: 6242C002ABBS
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer
    Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer
  • +
  • Canon Satin 7mil Luster Photo Paper(24"x100' Roll)
    Canon Satin 7mil Luster Photo Paper(24"x100' Roll)
  • +
  • Canon PFI-030 Pigment Black Ink Tank for imagePROGRAF PRO Series Printers, 55ml
    Canon PFI-030 Pigment Black Ink Tank for imagePROGRAF PRO Series Printers, 55ml
  • +
  • Show more

Key Features

  • Create stunning, vibrant posters with the Canon TM-240's exceptional print quality.
  • Enjoy fast CAD drawing print speeds, boosting productivity for architects & engineers.
  • This 24" large-format inkjet printer handles various media, from roll to cut sheets.
  • Connect easily via USB, Ethernet, or Wi-Fi for seamless large format printing.
  • The Canon TM-240 uses pigment inks for durable, water-resistant prints, ideal for signage.
  • Compact printer size fits small offices, delivering professional wide-format results.
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Add a Canon Protection Plan:

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon imagePROGRAF TM-240 Specifications

Printer Technology

Printer Technology

Jump to...
  • Printer Type

    5 Colors 24" (60.96cm)

  • Print Technology

    Canon Bubblejet on Demand 6 colors integrated type (6 chips per print head x 1 print head)

  • Print Resolution

    2,400 x 1,200 dpi

  • Number of Nozzles

    Total: 15360 nozzles
    MBK: 5120 nozzles
    BK, C, M, Y: 2560 nozzles each

  • Line Accuracy

    +/-0.1% or less
    User adjustments necessary. Printing environment and media must match those used for the adjustments.

  • Nozzle Pitch

    1,200 dpi x 2 lines

  • Ink Droplet Size

    Minimum 5pl per color

  • Ink Capacity

    Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
    Sales Ink: 55ml (MBK, BK, C, M, Y)

  • Ink Type

    Pigment inks: 5 colors MBK/BK/C/M/Y

  • OS Compatibility

    32 Bit: Windows7, Windows 8.1, Windows 10
    64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
    Apple Macintosh: macOS 10.15.7 - macOS 13

  • Other Supported Job Submission Protocols

    Apple AirPrint

  • Printer Languages

    HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

  • Standard Interfaces

    USB A Port: N/A
    USB B Port: Hi-Speed USB
    Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
    Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

  • Standard Memory

    2GB
    Expansion slot: No

Media Handling

Jump to...
  • Media Feed and Output

    Roll Paper: One Roll, Upper-loading, Front Output
    Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

  • Media Width

    Roll paper: 203.2 - 610mm
    Cut sheet: 210 - 610mm

  • Media Thickness

    Roll/Cut: 0.07mm - 0.8mm

  • Minimum Printable Length

    Roll paper: 203.2mm
    Cut sheet: 279.4mm

  • Maximum Printable Length

    Roll paper: 18m (varies according to the OS and application)
    Cut sheet: 1.6m

  • Maximum Media Roll Diameter

    150mm

  • Media Core Size

    Internal diameter of roll core: 2"/3" (Optional)

  • Margins Recommended Area

    Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
    Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
    Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm

  • Margins Printable Area

    Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
    Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
    Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
    Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

  • Media Feed Capacity

    Roll Paper: One roll
    Cut Sheet: 1 sheet

  • Borderless Printing Width (Roll Only)

    [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
    [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm
    Other than above, free size borderless printing is supported on only roll paper by user definition

  • Maximum Number of Delivered Prints

    Standard position - 1 sheet

Power and Operating Requirements

Jump to...
  • Power Supply

    AC 100-240V (50-60Hz)

  • Power Consumption

    Operation: 59W or less
    Sleep mode: 2.2W or less
    Default setting for the time to enter the Sleep mode: Approx. 5 minutes
    Power off: 0.1W or less

  • Operating Environment

    Temperature: 59-86 Degree F (15-30 Degree C), Humidity: 10-80% RH (no dew condensation)

  • Acoustic Noise (Power/Pressure)

    Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
    (Measured based on ISO7779 standard)

    Standby: 35 dB(A) or less

    Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
    (Measured based on ISO7779 standard)

  • Regulations

    CE mark, UKCA mark

  • Environment Certificates

    CB certification, EPEAT GOLD

Software

Jump to...
  • Software Included

    Software available as Download from Web

Consumables

Jump to...
  • User Replaceable Items

    Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml)
    Print Head: PF-06
    Cutter Blade: CT-08
    Maintenance Cartridge: MC-31

Physical

Jump to...
  • Dimensions (W x D x H)

    Main unit + Stand + Basket (SD-24):
    38.5 x 34.17 x 41.73" (978 x 868 x 1060mm) (Operation panel is not tilted up/Basket Opened)
    38.5 x 29.76 x 41.73" (978 x 756 x 1060mm) (Operation panel is not tilted up/Basket Closed)

  • Weight

    112.2 lbs (50.9kg) (including Roll Holder Set, excluding ink and print head)

  • UPC Codes

    192223248748, 660685040373, 013803313680, 10013803359890

12 Accessories for Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer, Bundle with 24"x100' Satin Photographic Paper and PFI-030 Pigment Black Ink Tank

  • All Accessories (12)
  • Ink (5)
  • Photo Paper (2)
  • Printer Accessories (3)
  • Installation Service (1)
  • Extended Warranty (1)

About Canon imagePROGRAF TM-240

Because professional quality and sustainable operation are paramount, the 24" imagePROGRAF TM-240 Wireless Color Large-Format Inkjet Printer redefines printing performance. This bundle, which includes a 24"x100' satin photographic paper and PFI-030 pigment black ink tank, is designed to cater to the needs of AEC offices, retail environments, and educational institutions.

This large-format printer is engineered to deliver brilliant image quality with less noise, making it an ideal choice for quiet office spaces. It boasts a new magenta ink formulation that produces a more vibrant red, enhancing the overall color spectrum and ensuring stable image enhancements for crisper lines.

The imagePROGRAF TM-240 is not just about superior image quality; it also offers reliable productivity. With faster processing times and a quick return from sleep mode, this printer ensures uninterrupted performance. Its borderless print feature eliminates the need for trimming excess margins, delivering full bleed images of any size directly from the device.

The printer's intuitive functionality is highlighted by its 4.3" touchscreen panel. This user-friendly interface displays vital information such as media type, remaining media, and ink amount, making operation a breeze. Additionally, the flat-top cover design simplifies the process of replacing roll paper.

As an EPEAT Gold rated device, the imagePROGRAF TM-240 demonstrates a commitment to improved sustainability. It features low energy consumption and power reduction during standby, and its packaging is free from polystyrene foam.

In summary, the imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer bundle offers a harmonious blend of professional quality prints, reliable productivity, intuitive functionality, and sustainable operation, making it an excellent choice for a wide range of applications.

Canon imagePROGRAF TM-240 Features

  • 5-color pigment ink: Matt black, black, cyan, yellow and new magenta pigment ink
  • 55ml ink tanks: Sufficient volume of ink to support your weekly printing demand
  • 4.3" operational panel: Intuitive functionality and useful information display
  • Intuitive functionality: Auto detection of media type & remaining amount, easy setup of roll paper
  • Reliable productivity: Faster processing time and a quick return from sleep mode
  • EPEAT Gold rating: Low energy consumption, polystyrene-free packaging and less noise operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create stunning, vibrant posters with the Canon TM-240's exceptional print quality.
  • Enjoy fast CAD drawing print speeds, boosting productivity for architects & engineers.
  • This 24" large-format inkjet printer handles various media, from roll to cut sheets.
  • Connect easily via USB, Ethernet, or Wi-Fi for seamless large format printing.
  • The Canon TM-240 uses pigment inks for durable, water-resistant prints, ideal for signage.
  • Compact printer size fits small offices, delivering professional wide-format results.

What's in the box:

  • Canon imagePROGRAF TM-240 24" Wireless Color Large-Format Inkjet Printer
  • Print Head
  • Power Cable
  • Set of Starter Ink Tanks
  • User Manual
  • Canon 1 Year Limited Warranty
  • Bundle Includes:
  • Canon 24"x100' Satin Photographic Paper
  • PFI-030 Pigment Black Ink Tank
