CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.
5 Colors 24" (60.96cm)
Canon Bubblejet on Demand 6 colors integrated type (6 chips per print head x 1 print head)
2,400 x 1,200 dpi
Total: 15360 nozzles
MBK: 5120 nozzles
BK, C, M, Y: 2560 nozzles each
+/-0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
1,200 dpi x 2 lines
Minimum 5pl per color
Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
Sales Ink: 55ml (MBK, BK, C, M, Y)
Pigment inks: 5 colors MBK/BK/C/M/Y
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7 - macOS 13
Apple AirPrint
HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
2GB
Expansion slot: No
Plain Paper (A1):
0:23 (Fast Economy Mode)
0:25 (Fast)
0:51 (Standard)
Plain Paper (A1)
0:25 (Fast Economy Mode)
0:25 (Fast)
0:49 (Standard
Heavy Coated Paper (A1)
0:56 (Fast)
1:45 (Standard)
Roll Paper: One Roll, Upper-loading, Front Output
Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Roll paper: 203.2 - 610mm
Cut sheet: 210 - 610mm
Roll/Cut: 0.07mm - 0.8mm
Roll paper: 203.2mm
Cut sheet: 279.4mm
Roll paper: 18m (varies according to the OS and application)
Cut sheet: 1.6m
150mm
Internal diameter of roll core: 2"/3" (Optional)
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Roll Paper: One roll
Cut Sheet: 1 sheet
[Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Standard position - 1 sheet
AC 100-240V (50-60Hz)
Operation: 59W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Temperature: 59-86 Degree F (15-30 Degree C), Humidity: 10-80% RH (no dew condensation)
Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
CE mark, UKCA mark
CB certification, EPEAT GOLD
Software available as Download from Web
Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Main unit + Stand + Basket (SD-24):
38.5 x 34.17 x 41.73" (978 x 868 x 1060mm) (Operation panel is not tilted up/Basket Opened)
38.5 x 29.76 x 41.73" (978 x 756 x 1060mm) (Operation panel is not tilted up/Basket Closed)
112.2 lbs (50.9kg) (including Roll Holder Set, excluding ink and print head)
192223248731, 10013803359890, 302756569474

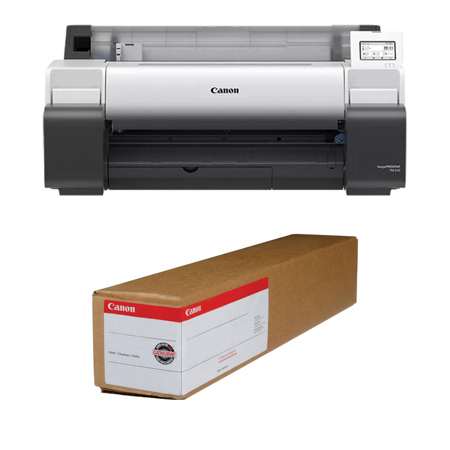

How you print can be revolutionized with the imagePROGRAF TM-240, a 24" wireless color large-format inkjet printer. This sustainable printer offers a quieter printing experience, enhanced intuitive functionality, and superior image quality, making it an ideal choice for AEC offices, retail environments, and educational institutions.
Experience a new level of printing performance with this printer's reliable productivity, user-friendly features, and eco-friendly operation. It's designed to produce sharp, precise lines and a vibrant red color, perfect for creating attention-grabbing marketing materials and accurate CAD prints.
The imagePROGRAF TM-240 is equipped with a new magenta ink that delivers a more brilliant red, while its stable image enhancements ensure crisper lines. Whether you're printing CAD drawings, posters, educational materials, or more, you can expect vivid and accurate results every time.
This printer is synonymous with reliable productivity. It boasts faster processing times and a quick return from sleep mode. Plus, its borderless print feature eliminates the need to trim excess margins, allowing you to produce full bleed images of any size directly from the device.
The imagePROGRAF TM-240 also features a functional design with a 4.3" touchscreen panel. This panel displays intuitive instructions and important information such as media type, remaining media, and ink amount. Replacing roll paper is a breeze thanks to the flat-top cover.
As an EPEAT Gold rated device, this printer is a testament to improved sustainability. It's designed for low energy consumption, with power reduction during standby. Even its packaging is free from polystyrene foam. The quieter printing process makes it a perfect fit for quiet offices.
In conclusion, the imagePROGRAF TM-240 24" wireless color large-format inkjet printer, bundled with 24"x150' premium bond luster inkjet paper, is a sustainable, high-performance, and user-friendly solution for all your large-format printing needs.
