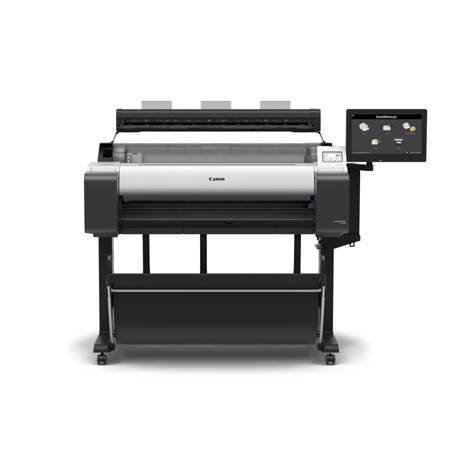

Canon imagePROGRAF TM-350 36" Wireless Color Large-Format Inkjet MFP Printer with Z36 Scanner

SKU: ICATM350Z36S MFR: 6246C007AB
Earn VIP Reward Points

Key Features

  • Experience vivid color accuracy with the Canon TM-350's 5-color LUCIA ink system.
  • Print detailed CAD drawings and posters up to 36" wide with stunning 2400 x 1200 dpi resolution.
  • Boost productivity with fast print speeds, creating A1 CAD drawings in just 17 seconds.
  • Enjoy flexible connectivity with built-in Wi-Fi, USB, and Ethernet for easy network integration.
  • Scan documents up to 36" wide with the integrated Z36 scanner, streamlining your workflow.
  • Minimize downtime with reliable performance and efficient paper handling for continuous printing.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canon imagePROGRAF TM-350 Specifications

Z36 Scanner

Z36 Scanner

Jump to...
  • Scan Technology

    Single Sensor

  • Maximum Resolution (dpi)

    1200 dpi

  • Paper Path

    Flat

  • Maximum Scan Width

    36" (914mm)

  • Minimum Scan Width

    6" (150mm)

  • Maximum Document Width

    38" (965mm)

  • Maximum Scan Length

    8m (JPEG/PDF), 15.2m (TIFF)

  • Document Thickness

    0.07-1.0mm

  • Interface USB

    3.0 (backward compatible to USB 2.0)

  • Compliances

    Europe : CE mark, Other countries : CB Certification

  • Front/Rear Exit

    Rear (front eject via Document Return Guide)

  • Document Handling - Face Up/Down

    Up

  • Scan Speed

    8-bit Grayscale & Mono @200dpi: 13 ips

  • Scan to PC: Scan Speed

    24-bit Color @200dpi: 3 ips

  • Copy: Scan Speed

    24-bit Color @200dpi: 6 ips

  • Scanner Controls

    Stop, Advance, Rewind, LED status

  • Branding/Color

    None / Canon black

  • Software Included

    SmartWorks MFP V6

  • System Controller

    Windows 10 Enterprise LTSC 64 bit. CPU: Intel Pentium
    G5400T. SSD: 256GB, RAM: 8GB DDR4.
    Display: Multi touch 15.6", 1366 x 768. 3 x USB3 & 1 x USB2, 1 x GbE (rear). Power button and 1 x USB3 (Front)

  • Dimensions (W x D x L)

    41.57 x 7.83 x 4.64" (1056 x 199 x 118mm)
    41.57 x 9.88 x 6.14" (1056 x 251 x 156mm) (With Doc return guide)

  • Weight

    17.19 lbs (7.8kg)

TM-350: Printer Technology

Jump to...
  • Printer Type

    5 Colors 36" (91.44cm)

  • Print Technology

    Canon Bubblejet on Demand 6 colors integrated type (6 chips per print head x 1 print head)

  • Print Resolution

    2,400 x 1,200 dpi

  • Number of Nozzles

    Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each

  • Line Accuracy

    +/-0.1% or less
    User adjustments necessary. Printing environment and media must match those used for the adjustments.

  • Nozzle Pitch

    1,200 dpi x 2 lines

  • Ink Droplet Size

    Minimum 5pl per color

  • Ink Capacity

    Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y) Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)

  • Ink Type

    Pigment inks : 5 colors MBK/BK/C/M/Y

  • OS Compatibility

    32 Bit: Windows7, Windows 8.1, Windows 10
    64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
    Apple Macintosh: macOS 10.15.7-macOS 13

  • Other Supported Job Submission Protocols

    Apple AirPrint

  • Printer Languages

    HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

  • Standard Interfaces

    USB B Port: Hi-Speed USB
    Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
    Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

TM-350: Memory

Jump to...
  • Standard Memory

    2GB
    Expansion slot: No

TM-350: Print Speed

Jump to...
  • CAD Drawing

    Plain paper (A1)
    0:17 (Fast Economy Mode), 3.2ppm

    Plain paper (A0)
    0:32 (Fast Economy Mode)
    0:41 (Fast)
    1:08 (Standard)

  • Poster

    Plain Paper (A0)
    0:37 (Fast Economy Mode)
    0:43 (Fast)
    1:18 (Standard)

    Heavy Coated Paper (A0)
    1:40 (Fast)
    2:33 (Standard)

TM-350: Media Handling

Jump to...
  • Media Feed and Output

    Roll Paper : One Roll, Upper-loading, Front Output
    Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

  • Media Width

    Roll paper: 203.2 - 917mm
    Cut sheet: 203.2 - 917mm

  • Media Thickness

    Roll/Cut : 0.07mm - 0.8mm

  • Minimum Printable Length

    Roll paper: 203.2mm
    Cut sheet: 279.4mm

  • Maximum Printable Length

    Roll paper : 18m (varies according to the OS and application)
    Cut sheet : 1.6m

  • Maximum Media Roll Diameter

    150mm

  • Media Core Size

    Internal diameter of roll core: 2"/3"

  • Margins Recommended Area

    Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
    Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
    Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm

  • Margins Printable Area

    Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
    Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
    Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
    Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

  • Media Feed Capacity

    Roll Paper: One roll
    Cut Sheet: 1 sheet

  • Borderless Printing Width (Roll Only)

    [Recommended]515mm(JIS B2), 728mm (JIS B1), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36"
    [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm
    Other than above, free size borderless printing is supported on only roll paper by user definition

  • Maximum Number of Delivered Prints

    Standard position: 1 sheet
    Folding position: Plain paper 20 sheets on A1 portrait / A0 portrait
    Flat position: Plain paper 20 sheets on A2 landscape / A1 landscape (exclude strong curled position)

TM-350: Power & Operating Requirements

Jump to...
  • Power Supply

    AC 100-240V (50-60Hz)

  • Power Consumption

    Operation: 65W or less
    Sleep mode: 2.2W or less
    Default setting for the time to enter the Sleep mode: Approx. 5 minutes
    Power off: 0.1W or less

  • Operating Environment

    Temperature: 59 - 86 Degree F (15-30 Degree C), Humidity: 10-80% RH (no dew condensation)

  • Acoustic Noise (Power/Pressure)

    Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
    Standby: 35 dB(A) or less
    Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)

  • Regulations

    CE mark, UKCA mark

  • Environment Certificates

    CB certification, EPEAT GOLD

TM-350: Physical

Jump to...
  • Dimensions

    Main unit with stand:
    50.5 x 34.8 x 41.7" (1285 x 885 x 1060mm) (Operation panel is not tilted up/Basket Opened)
    50.5 x 29.7 x 41.7" (1285 x 756 x 1060mm) (Operation panel is not tilted up/Basket Closed)

  • Weight

    140 lbs (63.8kg) (including Roll Holder Set, excluding ink and print head)

20 Accessories for Canon imagePROGRAF TM-350 36" Wireless Color Large-Format Inkjet MFP Printer with Z36 Scanner

  • All Accessories (20)
  • Ink (10)
  • Printer Accessories (3)
  • Printers & Scanners (2)
  • Roll Holder (1)
  • Software (1)
  • Monitors (2)
  • Installation Service (1)

About Canon imagePROGRAF TM-350

Print Beyond the Everyday

The new imagePROGRAF TM Series offers versatility and productivity to help meet the growing demands of today’s marketplace. With a range of models, this series allows you to easily produce CAD documents, posters, banners, flyers, and more.

New Magenta Ink

Equipped with newly formulated magenta ink, these printers achieve excellent red color development. The printers produce highly visible posters, making it possible to create attention-grabbing retail POPs and engaging office displays. The use of pigment ink for all colors helps to ensure that prints do not easily fade over time, making them suitable for long-term display, and also provides water resistance for outdoor use.

ICATM350Z36S

Color Calibration

The ability to calibrate your printer for consistent color quality is now available in the imagePROGRAF TM Series. This helps ensure your output is color consistent over time and across multiple TM Series devices.

ICATM350Z36S

Speed

With the new L-COA PRO II processor, the new imagePROGRAF TM Series is approximately 30 percent faster than previous models with a speed of up to 3.2 ppm for an Arch D size sheet (24” x 36”).

ICATM350Z36S

Ease of Use

The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, fullfrontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, media indicator levels, and other setting prompts all on the home screen!

ICATM350Z36S

Environmentally Conscious

Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging.

ICATM350Z36S

Automatic Paper Detection

The new imagePROGRAF TM Series is able to determine the media type, length, and width, and displays this information on the user interface home screen.

ICATM350Z36S

Scanning Lm24/Lm36 Solutions

ICATM350Z36S

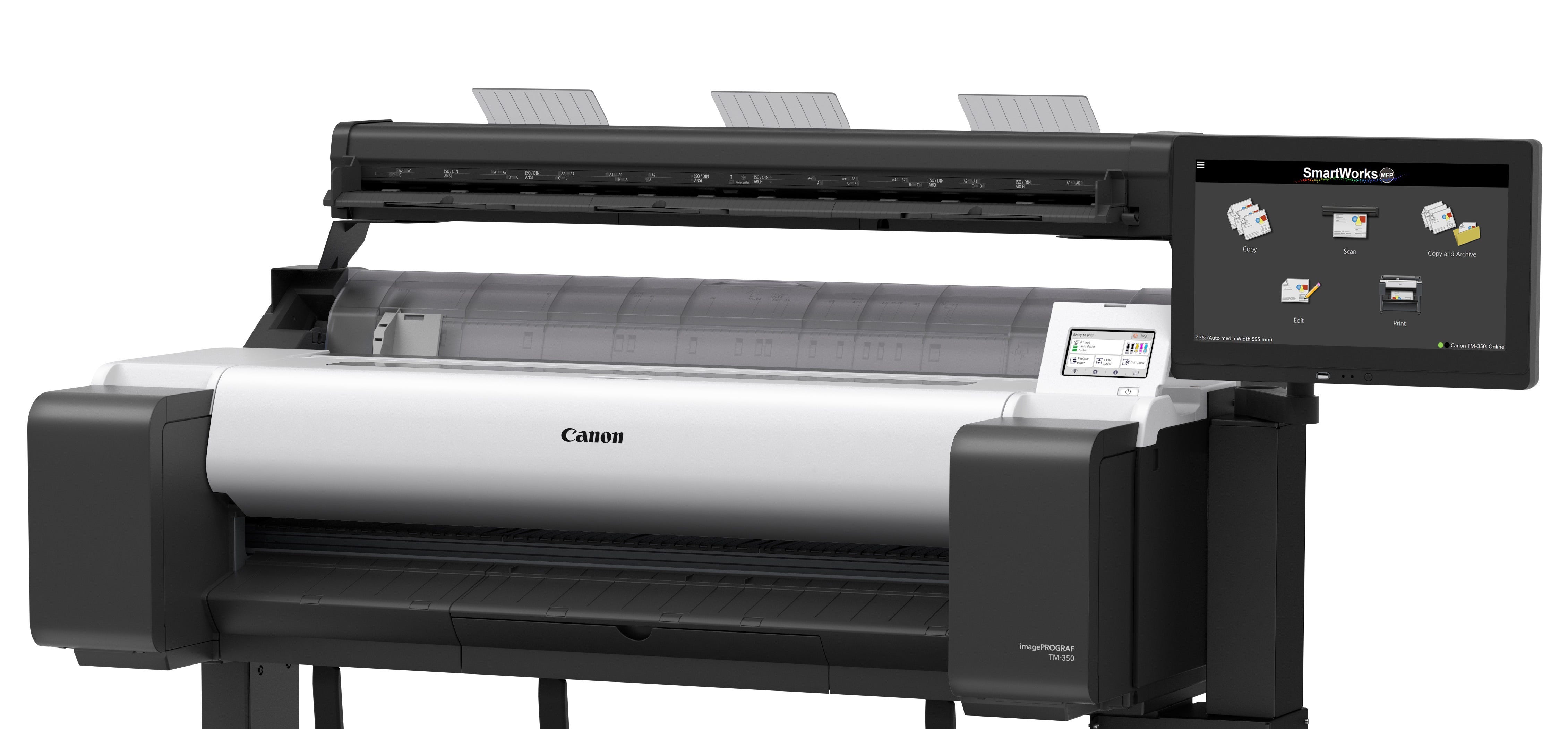

Integrated Solution – scanner mounts directly to the printer!

ICATM350Z36S

15.6” Touchscreen Controller with intuitive, user-friendly interface

Features

  • 5-Color LUCIA TD Pigment Ink
  • Print Speed of approximately 2.4 - 3.2 ppm
  • Color Calibration
  • Automatic Paper Detection (Type/Length/Width)
  • Fat-top body design with tilt touchscreen
  • EPEAT Gold Registered
  • Scanning speed of up to 13” per second
  • monochrome, up to 6” per second color
  • 6” Touchscreen Controller for large preview
  • and editing of scans
  • SingleSensor technology (up to 1,200 dpi)
  • Scan a document up to 1.0 mm thick
  • SmartWorks MFP software included

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience vivid color accuracy with the Canon TM-350's 5-color LUCIA ink system.
  • Print detailed CAD drawings and posters up to 36" wide with stunning 2400 x 1200 dpi resolution.
  • Boost productivity with fast print speeds, creating A1 CAD drawings in just 17 seconds.
  • Enjoy flexible connectivity with built-in Wi-Fi, USB, and Ethernet for easy network integration.
  • Scan documents up to 36" wide with the integrated Z36 scanner, streamlining your workflow.
  • Minimize downtime with reliable performance and efficient paper handling for continuous printing.

What's in the box:

  • Canon imagePROGRAF TM-350 36" Wireless Color Large-Format Inkjet MFP Printer
  • Z36 Scanner
  • Stand
  • Stackable Basket
  • Print Head
  • Power Cable
  • Set of Starter Ink Tanks
  • Suspension Mount for Printer and System Controller Mount
  • Calibration Target
  • USB 3.0 Cable (2m)
  • Power Supply
  • 15.6" System Controller
  • 3:1 Trident Power Cord
  • User Manual
  • Canon 1 Year Limited Warranty
