5 Colors 36" (91.44cm)
Canon Bubblejet on Demand 6 colors integrated type (6 chips per print head x 1 print head)
2,400 x 1,200 dpi
Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
+/-0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
1,200 dpi x 2 lines
Minimum 5pl per color
Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y) Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)
Pigment inks : 5 colors MBK/BK/C/M/Y
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7-macOS 13
Apple AirPrint
HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
USB A Port: USB Memory (Direct Print)
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
128GB (Physical memory 2GB)
Expansion slot : No
500GB (Encrypted)
Plain paper (A1)
0:17 (Fast Economy Mode), 3.2ppm
Plain paper (A0)
0:32 (Fast Economy Mode)
0:41 (Fast)
1:08 (Standard)
Plain Paper (A0)
0:37 (Fast Economy Mode)
0:43 (Fast)
1:18 (Standard)
Heavy Coated Paper (A0)
1:40 (Fast)
2:33 (Standard)
Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Roll paper: 203.2 - 917mm
Cut sheet: 203.2 - 917mm
Roll/Cut : 0.07mm - 0.8mm
Roll paper: 203.2mm
Cut sheet: 279.4mm
Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m
150mm
Internal diameter of roll core: 2"/3"
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Roll Paper: One roll
Cut Sheet: 1 sheet
[Recommended]515mm(JIS B2), 728mm (JIS B1), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36"
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Standard position: 1 sheet
Folding position: Plain paper 20 sheets on A1 portrait / A0 portrait
Flat position: Plain paper 20 sheets on A2 landscape / A1 landscape (exclude strong curled position)
AC 100-240V (50-60Hz)
Operation: 69W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Temperature: 59-86 Degree F (15-30 Degree C), Humidity: 10-80% RH (no dew condensation)
Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
CE mark, UKCA mark
CB certification, EPEAT GOLD
Software available as Download from Web
Ink Tank: M:PFI-321(300ml) / PFI-121(130ml), MBK/BK/C/Y:PFI-320(300ml) / PFI-120(130ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Main unit with stand:
50.5 x 34.8 x 41.7" (1285 x 885 x 1060mm) (Operation panel is not tilted up/Basket Opened)
50.5 x 29.76 x 41.7" (1285 x 756 x 1060mm) (Operation panel is not tilted up/Basket Closed)
140.6 lbs (63.8kg) (Including Roll Holder Set, excluding ink and print head)
013803359909

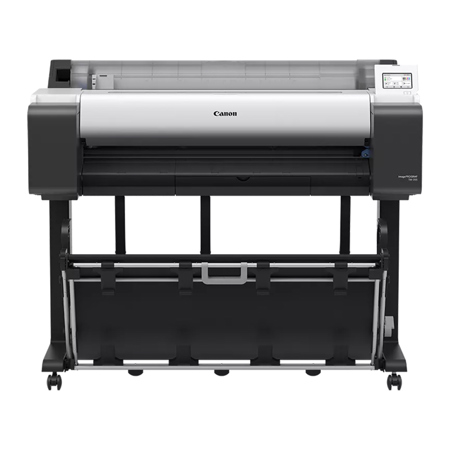

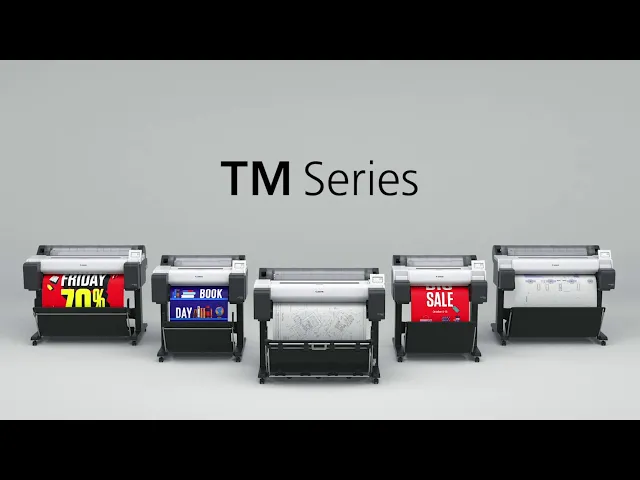

The new imagePROGRAF TM Series offers versatility and productivity to help meet the growing demands of today’s marketplace. With a range of models, this series allows you to easily produce CAD documents, posters, banners, flyers, and more.
Equipped with newly formulated magenta ink, these printers achieve excellent red color development. The printers produce highly visible posters, making it possible to create attention-grabbing retail POPs and engaging office displays. The use of pigment ink for all colors helps to ensure that prints do not easily fade over time, making them suitable for long-term display, and also provides water resistance for outdoor use.
The ability to calibrate your printer for consistent color quality is now available in the imagePROGRAF TM Series. This helps ensure your output is color consistent over time and across multiple TM Series devices.
With the new L-COA PRO II processor, the new imagePROGRAF TM Series is approximately 30 percent faster than previous models with a speed of up to 3.2 ppm for an Arch D size sheet (24” x 36”).
The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, fullfrontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, media indicator levels, and other setting prompts all on the home screen!
Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging.
The new imagePROGRAF TM Series is able to determine the media type, length, and width, and displays this information on the user interface home screen.
