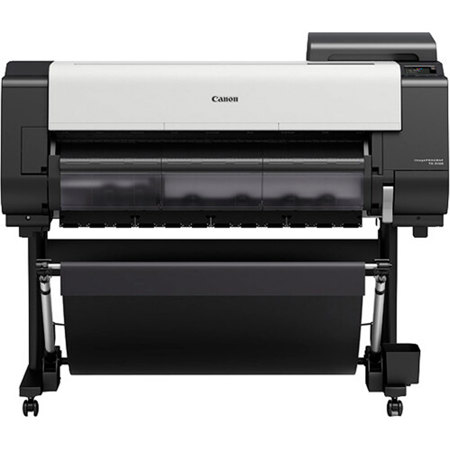

Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer with Basket

SKU: ICATX3100B MFR: 5515C002AA
Earn VIP Reward Points

Key Features

  • Create vibrant, high-quality CAD drawings with the Canon TX-3100's precise inkjet technology.
  • Print detailed architectural plans and maps quickly with impressive print speeds of this printer.
  • This wide-format printer handles media up to 36", perfect for posters and large documents.
  • Enjoy flexible connectivity with USB, Wi-Fi, and Ethernet options for seamless integration.
  • The Canon TX-3100 boasts a user-friendly touchscreen for easy navigation and control.
  • Rely on the Canon TX-3100 for consistent, reliable performance in your busy office.
See More Product Details
Special Order?Estimated to Ship: 09/01/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canon imagePROGRAF TX-3100 Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    Maintenance Cartridge
    Driver/Software CD for Windows
    PosterArtist Lite CD
    Power Cord
    User Manual

Printer

Jump to...
  • Printing Technology

    Inkjet

  • Color Type

    Color

  • Configuration

    5x Individual Cartridge

  • Ink Type

    Pigment-Based (Black, Cyan, Magenta, Photo Black, Yellow)

  • Ink Color

    1x Black
    1x Photo Black
    1x Cyan
    1x Magenta
    1x Yellow

  • Compatible Cartridges

    Canon PFI-110, Canon PFI-310, Canon PFI-710

  • Number of Nozzles

    15,360 Nozzles (Total)

  • Print Resolution

    Color: 2400 x 1200 dpi

  • Borderless Printing

    Yes

  • Printer Language

    Standard: HP-GL/2, HP-RTL, JPEG, PDF

  • Minimum Line Width

    0.79 mil (0.02mm)

  • Line Accuracy

    +/- 0.1%

  • Minimum Ink Droplet Size

    5 pL (Black, Cyan, Magenta, Matte Black, Yellow)

  • Print Speed (By Size)

    22 x 34" (55.9 x 86.4cm): 20 Seconds (Max Speed)

Printer Media Handling

Jump to...
  • Media Handling

    Manual Feed, Media Cutter

  • Media Sizes

    Roll Width: 6 to 36" (15.2 to 91.4cm)
    Sheet Width: 6 to 36" (15.2 to 91.4cm)
    Roll Length: 6 to 708.7" (15.2 to 1800.1cm)
    Sheet Length: 6 to 63" (15.2 to 160cm)

  • Media Thickness

    Roll: 2.8 to 31.4 mil (0.1 to 0.8mm)

  • Media Roll Diameter

    6.7" (17cm) (Outer)

Connectivity

Jump to...
  • Inputs/Outputs

    USB-B (USB 2.0), RJ45, USB-A

  • Wireless

    Wi-Fi

  • Wi-Fi

    802.11b/g; Single-Band (2.4 GHz)

  • Direct Printing

    USB Port

  • Hard Drive

    500 GB

  • Internal Memory

    2 GB (RAM)

  • OS Compatibility

    Windows
    macOS

Environmental

Jump to...
  • Operating Temperature

    59 to 86 Degree F (15 to 30 Degree C)

  • Operating Humidity

    10 to 80%

General

Jump to...
  • Display Size

    4.3"

  • Display Type

    Color Touchscreen LCD

  • Power Source

    AC Adapter (Included)

  • Battery

    None

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Power Consumption

    115 W (Maximum)
    2 W (Standby)
    0.3 W (Off)

  • Max Acoustic Noise

    51 dBA
    35 dBA
    6.9 BA (Power)

  • Certifications

    ENERGY STAR

  • Dimensions (W x H x D)

    55 x 46 x 39" (139.7 x 116.8 x 99.1cm) (Fully Assembled)

  • Weight

    231 lbs (104.8kg) (with Stacker)

25 Accessories for Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer with Basket

  • All Accessories (25)
  • Ink (9)
  • Printer Accessories (1)
  • Cables & Adapters (5)
  • Cleaning Accessories (1)
  • Roll Holder (1)
  • Printer Paper (5)
  • Photo Paper (3)

About Canon imagePROGRAF TX-3100

While setting the benchmark for engineering excellence, Canon introduces the imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer with Basket. This state-of-the-art printer is designed to help you leverage emerging market trends and steer your organization towards success.

Canon's core technologies continue to evolve, consistently winning awards for their innovative designs. These advancements have enabled Canon to develop solutions that boost productivity, optimize usage, and enhance security features. This seamless system positions you at the forefront of the large-format printing industry.

Designed for today's demanding culture, the imagePROGRAF TX-3100 offers advanced solutions for high production and technical document inkjet printing. It caters to the needs of high-volume CAD and low-volume LED plotter markets with exceptional print quality, usability, and security features. It also boasts impressive print speeds, delivering up to 190 D-sized prints per hour.

The imagePROGRAF TX-3100 is equipped with a 5-color LUCIA TD Pigment ink system, producing fine lines and sharp text even on non-inkjet coated paper. This ink system offers a perfect balance between bleed resistance, black density, and water resistance, a feature not found in dye ink.

The printer features an Intelligent Media Roll with advanced sensor technology, enabling it to detect roll width, length, and media type. This reduces the time taken to load media into the printer, enhancing productivity.

Security is a top priority with the imagePROGRAF TX-3100. It comes with an array of security features designed to protect confidential information, including an encrypted hard drive, secure disk erase, IPsec support, SSL/TLS, and secure encrypted PIN printing.

The optional Multifunction Roll System allows you to load a second roll of media of a different type and size, enabling automatic switching between media types and sizes without disrupting your workflow.

The TX Stacker can stack up to 100 sheets of various ARCH page sizes, further increasing productivity. The Sub-Ink Tank System ensures uninterrupted printing, allowing virtually all the available ink in a tank to be used before replacement, eliminating any ink wastage.

The imagePROGRAF TX-3100 comes with a variety of standard software to streamline and optimize workflows in large-format printing environments. It supports direct USB printing, allowing both PDF and JPEG files to be printed directly from a thumb drive.

Wi-Fi connectivity comes standard with the imagePROGRAF TX-3100, and a unified Windows driver simplifies the installation of multiple devices within the same environment. The printer is also equipped with an AutoCAD optimized printer driver for accurate printing of AutoCAD data.

The imagePROGRAF TX-3100 is not just a printer; it's a comprehensive solution for all your large-format printing needs.

Canon imagePROGRAF TX-3100 Features

  • 36" Large Format printer
  • Direct USB Thumb Drive Printing
  • Supports borderless printing
  • 5-Color LUCIA TD pigment based ink system
  • Print up to 190 D-sized prints per hour
  • Intelligent media handling
  • Comes with Multipositional Catch Basket

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Create vibrant, high-quality CAD drawings with the Canon TX-3100's precise inkjet technology.
  • Print detailed architectural plans and maps quickly with impressive print speeds of this printer.
  • This wide-format printer handles media up to 36", perfect for posters and large documents.
  • Enjoy flexible connectivity with USB, Wi-Fi, and Ethernet options for seamless integration.
  • The Canon TX-3100 boasts a user-friendly touchscreen for easy navigation and control.
  • Rely on the Canon TX-3100 for consistent, reliable performance in your busy office.

What's in the box:

  • Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer
  • Multipositional Basket
  • Stand
  • PFI-310MBK Matte Black Pigment Ink Tank (330ml)
  • PFI-110C Cyan Pigment Ink Tank (160ml)
  • PFI-110M Magenta Pigment Ink Tank (160ml)
  • PFI-110Y Yellow Pigment Ink Tank (160ml)
  • PFI-110BK Black Pigment Ink Tank (160ml)
  • PF-06 Print Head
  • 2/3" Core Media Spool with Adapters
  • Tools & Screws
  • (See the Specification Section for Additional Included Items)
  • Canon 1 Year Limited Warranty
