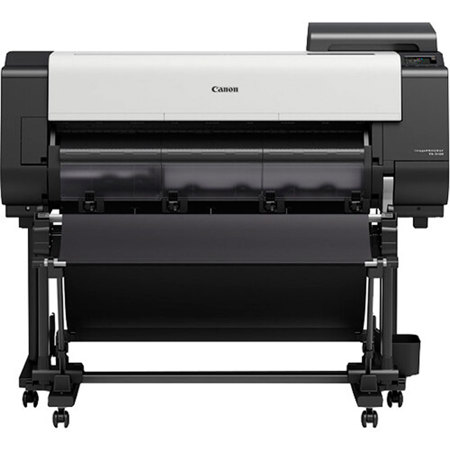

Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer with Stacker

SKU: ICATX3100S MFR: 5515C001AA
Earn VIP Reward Points

Key Features

  • Create stunning, detailed prints with the Canon's 2400 x 1200 dpi print resolution.
  • Achieve precise output with a line accuracy of +/- 0.1% on this wide-format printer.
  • Enjoy flexible connectivity with USB, Wi-Fi, and Ethernet options on this inkjet printer.
  • This large-format printer handles media up to 36" wide, perfect for detailed projects.
  • Boost productivity with rapid print speeds, producing 22" x 34" prints in just 20 seconds.
  • The Canon TX-3100's pigment-based inks ensure vibrant, long-lasting color prints every time.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Dr Omar E : hi, is this a new or refurbished ??

Reviews about this item

Review Summary

Canon imagePROGRAF TX-3100 Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    Maintenance Cartridge
    Driver/Software CD for Windows
    PosterArtist Lite CD
    User Manual

Printer

Jump to...
  • Printing Technology

    Inkjet

  • Color Type

    Color

  • Configuration

    5x Individual Cartridge

  • Ink Type

    Pigment-Based (Black, Cyan, Magenta, Photo Black, Yellow)

  • Ink Color

    1x Black
    1x Photo Black
    1x Cyan
    1x Magenta
    1x Yellow

  • Compatible Cartridges

    Canon PFI-110, Canon PFI-310, Canon PFI-710

  • Number of Nozzles

    15,360 Nozzles (Total)

  • Print Resolution

    Color: 2400 x 1200 dpi

  • Borderless Printing

    Yes

  • Printer Language

    Standard: HP-GL/2, HP-RTL, JPEG, PDF

  • Minimum Line Width

    0.79 mil (0.02mm)

  • Line Accuracy

    +/- 0.1%

  • Minimum Ink Droplet Size

    5 pL (Black, Cyan, Magenta, Matte Black, Yellow)

  • Print Speed (By Size)

    22 x 34" (55.9 x 86.4cm): 20 Seconds (Max Speed)

Printer Media Handling

Jump to...
  • Media Handling

    Manual Feed, Media Cutter

  • Media Sizes

    Roll Width: 6 to 36" (15.2 to 91.4cm)
    Sheet Width: 6 to 36" (15.2 to 91.4cm)
    Roll Length: 6 to 708.7" (15.2 to 1800.1cm)
    Sheet Length: 6 to 63" (15.2 to 160cm)

  • Media Thickness

    Roll: 2.8 to 31.4 mil (0.1 to 0.8mm)

  • Media Roll Diameter

    6.7" (17cm) (Outer)

Connectivity

Jump to...
  • Inputs/Outputs

    USB-B (USB 2.0), RJ45, USB-A

  • Wireless

    Wi-Fi

  • Wi-Fi

    802.11b/g; Single-Band (2.4 GHz)

  • Direct Printing

    USB Port

  • Hard Drive

    500 GB

  • Internal Memory

    2 GB (RAM)

  • OS Compatibility

    Windows
    macOS

Environmental

Jump to...
  • Operating Temperature

    59 to 86 Degree F (15 to 30 Degree C)

  • Operating Humidity

    10 to 80%

General

Jump to...
  • Display Size

    4.3"

  • Display Type

    Color Touchscreen LCD

  • Power Source

    AC Adapter (Included)

  • Battery

    None

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Power Consumption

    115 W (Maximum)
    2 W (Standby)
    0.3 W (Off)

  • Max Acoustic Noise

    51 dBA
    35 dBA
    6.9 BA (Power)

  • Certifications

    ENERGY STAR

  • Dimensions (W x H x D)

    55 x 46 x 47" (139.7 x 116.8 x 119.4cm) (Fully Assembled)

  • Weight

    257 lbs (116.6kg) (with Stacker)

  • UPC Code

    013803340020

26 Accessories for Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer with Stacker

  • All Accessories (26)
  • Ink (9)
  • Printer Accessories (1)
  • Cables & Adapters (5)
  • Cleaning Accessories (2)
  • Roll Holder (1)
  • Printer Paper (5)
  • Photo Paper (3)

About Canon imagePROGRAF TX-3100

What sets the imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer apart is its embodiment of Canon's dedication to engineering excellence, designed to meet the demands of the evolving large-format printing market. This printer is an ideal solution for professionals seeking to enhance productivity, leverage advanced usability, and maintain robust security in their printing operations.

The imagePROGRAF TX-3100 is engineered with core technologies that Canon has refined through its award-winning innovations. These technologies converge to create a seamless system that positions users at the vanguard of the large-format printing industry, catering to the needs of high-volume CAD printing and the low-volume LED plotter market with unparalleled print quality.

Featuring a sophisticated 5-color LUCIA TD Pigment ink system, the TX-3100 delivers crisp, sharp text and fine lines, even on non-inkjet coated paper. This high-quality ink achieves a perfect balance of bleed resistance, black density, and water resistance, surpassing the capabilities of standard dye ink. Users can select from 160 ml, 330 ml, or 700 ml ink tanks to suit their printing volume needs.

The TX-3100 boasts intelligent media handling with its new Intelligent Media Roll system, equipped with advanced sensor technology. This system adeptly detects roll width, length, and media type, streamlining the media loading process and saving valuable time.

Security is paramount in the TX-3100, which comes equipped with robust security features to safeguard confidential information. These features include an encrypted hard drive, secure disk erase conforming to U.S. Department of Defense standard DoD5220.22-M, IPsec support, SSL/TLS, 802.1x authentication, and more, ensuring that sensitive data remains protected.

For those requiring versatility in media handling, the optional Multifunction Roll System serves as a game-changer. It can hold a second roll of media of a different type or size, enabling automatic switching between media without disrupting workflow. Alternatively, it can function as a bi-directional take-up unit for production printing, accommodating two rolls of media up to 650 ft. in length each.

The TX-3100's stacker, the TX Stacker, is capable of neatly stacking up to 100 sheets of various ARCH page sizes, significantly boosting productivity. The Sub-Ink Tank System is a standard feature, allowing for the use of virtually all available ink in a tank before replacement, minimizing ink wastage.

Canon's imagePROGRAF TX-3100 comes with a suite of printing solutions to optimize large-format printing workflows. Direct Print Plus software accelerates processing speeds by up to 60% compared to its predecessor, while Direct USB Printing enables straightforward printing from a thumb drive. The unified printer driver simplifies the installation of multiple devices, and the AutoCAD optimized printer driver ensures precise printing of AutoCAD-generated data.

Additional tools such as the Accounting Manager for tracking ink and media usage, Poster Artist Lite for easy poster creation, and Canon's Print Plug-In for Microsoft Office for effortless enlargements, round out the comprehensive offerings of the imagePROGRAF TX-3100, making it a top-tier choice for professionals in need of a reliable, high-quality, and innovative large-format printing solution.

Canon imagePROGRAF TX-3100 Features

  • 36" Large Format printer
  • Direct USB Thumb Drive Printing
  • Supports borderless printing
  • 5-Color LUCIA TD pigment based ink system
  • Print up to 190 D-sized prints per hour
  • Intelligent media handling
  • Comes with TX stacker

Warranty Information

This product has a limited warranty of 3 months.

Product Documents

User Manual

Key Features

  • Create stunning, detailed prints with the Canon's 2400 x 1200 dpi print resolution.
  • Achieve precise output with a line accuracy of +/- 0.1% on this wide-format printer.
  • Enjoy flexible connectivity with USB, Wi-Fi, and Ethernet options on this inkjet printer.
  • This large-format printer handles media up to 36" wide, perfect for detailed projects.
  • Boost productivity with rapid print speeds, producing 22" x 34" prints in just 20 seconds.
  • The Canon TX-3100's pigment-based inks ensure vibrant, long-lasting color prints every time.

What's in the box:

  • Canon imagePROGRAF TX-3100 36" Wireless Color Large-Format Inkjet Printer
  • TX Stacker
  • Stand
  • PFI-310MBK Matte Black Pigment Ink Tank (330ml)
  • PFI-110C Cyan Pigment Ink Tank (160ml)
  • PFI-110M Magenta Pigment Ink Tank (160ml)
  • PFI-110Y Yellow Pigment Ink Tank (160ml)
  • PFI-110BK Black Pigment Ink Tank (160ml)
  • PF-06 Print Head
  • 2/3" Core Media Spool with Adapters
  • Power Cord
  • Tools & Screws
  • (See the Specification Section for Additional Included Items)
  • Canon 90 Day Limited Warranty
