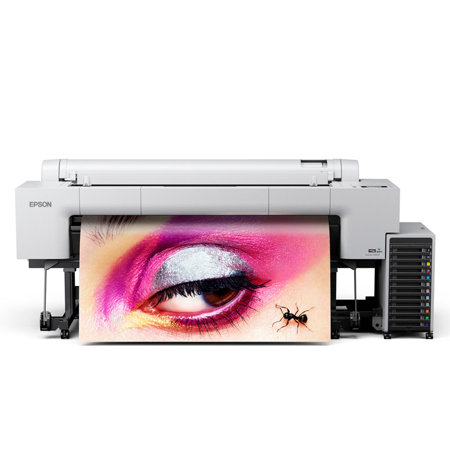

Epson SureColor P20570 64" Standard Edition Wide Format Wireless Professional Inkjet Photo Printer

SKU: IEP20570 MFR: SCP20570SE
Earn VIP Reward Points

Key Features

  • Create stunning, large-format prints with the Epson SureColor P20570 inkjet printer.
  • Achieve precise color accuracy with our UltraChrome PRO12 ink for vivid photo prints.
  • Boost your productivity with print speeds up to 1,314 sq ft/hr on this wide-format printer.
  • Handle various media types and sizes up to 60" wide for diverse printing needs.
  • Enjoy flexible connectivity with SuperSpeed USB and 100Base-TX/1000Base-T interfaces.
  • Get reliable performance with Epson's PrecisionCore printhead technology for consistent output.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Epson SureColor P20570 Specifications

Print
  • Printing Technology

    Precision Core Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control

  • Ink Type

    UltraChrome PRO12 aqueous pigment ink
    12-color ink set

  • Ink Colors

    PK, C, VM, Y, Lc, Lm, GY, MK, LG, Or, Gr, Vi

  • Nozzle Configuration

    9,600 nozzles (800 nozzles x 12 colors)

  • Maximum Resolution

    2400 x 1200 dpi

  • Minimum Ink Droplet Volume

    3.5 picolitres

  • Print Speeds

    Draft mode: 1,314 sq. ft /hr
    Photo-quality: 200 sq. ft /hr

  • Printer Language/Drivers

    Standard: Epson ESC/P raster photographic drivers
    Optional Expansion Unit: Adobe PostScript 3, Adobe PDF 1.7

  • Memory

    6GB

Replacement Ink Packs

Jump to...
  • Ink Pack Fill Volume

    1.6 L per color available x 12 colors total

Media Handling

Jump to...
  • BorderFree Sizes

    64", 60", 54", 44", 40.5", 36", 33.1", 28.7", 24", 23.4", 20", 17", 16", 13", 11.8", 10"

  • Maximum Printable Length

    298' (90m)

  • Maximum Reel Diameter

    7.48" with Auto Take-Up Reel Unit option

  • Maximum Reel Weight

    52 lbs (23.5kg) with Auto Take-Up Reel Unit option

  • Maximum Roll Diameter

    6.69"

  • Maximum Roll Weight

    52 lbs (23.5kg)

  • Roll Paper Thickness

    0.08 to 1.5mm

  • Roll Paper Width

    10 to 60" (254 to 1524mm)

  • Roll Paper Remaining

    Barcode management

  • Minimum Margins

    Roll Paper
    With border: 0.1" (3mm) top/left/right margins, 0.5" (14mm) bottom margin
    BorderFree: 0mm top/left/right/bottom margins

    Cut Sheet
    With border: 0.1" (3mm) top/left/right margins, 0.5" (14mm) bottom margin
    BorderFree: 0.1" (3mm) top, 0.5" (14mm) bottom, 0mm left/right margins

  • Paper Feed Method

    Friction Feed

  • Paper Path

    Roll (single roll)
    Cut sheet (manual feed)
    Poster board (manual feed)

  • Paper Thickness

    Cut sheet: 0.08mm to 0.8mm
    Posterboard: 0.8mm to 1.5mm (manual)

  • Paper Width (Cut Sheet)

    8.27 to 44" (210 to 1117mm)

Printer Interfaces

Jump to...
  • Printer Interfaces

    SuperSpeed USB, 100Base-TX/1000Base-T
    Optional 960GB SSD HD with encryption function

Operating Systems

Jump to...
  • Operating Systems Supported

    Mac OS X 10.9.5 or later, macOS 10.12 - 10.15, 11 or later Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008

Software

Jump to...
  • Available Software

    Software and Firmware Updaters, Epson Cloud Solution PORT, Epson Edge Color, Epson Print Layout, Epson Media Installer; Windows - Install Navi, Web Installer, LFP Accounting tool; Web Installer, Epson Software Updater, Uninstaller

Eco Features

Jump to...
  • Eco Features

    ENERGY STAR qualified
    RoHS compliant
    End-of-life options available
    Epson America, Inc. is a SmartWay Transport Partner

General

Jump to...
  • Acoustic Noise Level

    Sound Power Level: Not greater than 7 B(A)
    Sound Pressure Level: Not greater than 55 dB(A)

  • Temperature

    Operating: 50 Degree F to 95 Degree F (10 Degree C to 35 Degree C)
    Storage: -4 Degree F to 104 Degree F (-20 Degree C to 40 Degree C)

  • Relative Humidity

    Operating: 20% - 80% (no condensation)
    Storage: 5% - 85% (no condensation)

  • Standards and Approvals

    NRTL Certified CSA/UL 62368-1 (United States and Canada)
    Compliant with Class A requirements USA (FCC), Canada (ICES-003)

  • Electrical Requirements

    Voltage: AC 100 V - 240 V
    Frequency: 50Hz - 60Hz
    Rated Current: AC 100 V - 240 V (3.4 A-1.6 A)

  • Power Consumption

    Operating: Approx. 95W
    Standby: Approx. 0.3W
    Ready: Approx. 40W
    Sleep: Approx. 2.2W

  • Dimensions (W X D X H)

    Printing: 107.9 x 38.5 x 45.1" (2740 x 977 x 1145mm)
    Stowed: 107.9 x 29.9 x 45.1" (2740 x 759 x 1145mm)

  • Weight

    494 lbs (224kg)

  • UPC Code

    198390000530

25 Accessories for Epson SureColor P20570 64" Standard Edition Wide Format Wireless Professional Inkjet Photo Printer

  • All Accessories (25)
  • Cables & Adapters (5)
  • Ink (12)
  • Printer Accessories (1)
  • Adapters & Mounts (1)
  • Printer Paper (5)
  • Maintenance Tank (1)

About Epson SureColor P20570

If you're seeking the pinnacle of professional printing technology, the Epson SureColor P20570 64" Standard Edition Wide Format Wireless Professional Inkjet Photo Printer is your ultimate solution. This state-of-the-art printer redefines large-format production and fine art printing, catering to the exacting demands of professional photographers, fine art reproduction specialists, and graphic designers.

At the heart of the SureColor P20570 is the high-performance 12-channel PrecisionCore Micro TFP printhead, which incorporates Nozzle Verification Technology for automated maintenance, ensuring consistent, high-quality output. This advanced printhead works in tandem with the UltraChrome PRO12 Ink system, featuring a high-capacity 1.6-liter ink pack that includes Orange, Green, and Violet inks. This combination delivers the widest color gamut in its class, achieving up to 99 percent coverage of the PANTONE PLUS FORMULA GUIDE solid-coated standard, and sets a new benchmark for industry-leading print permanence with prints lasting up to 200 years in color and 400 years in black-and-white.

The SureColor P20570 excels in productivity, offering photographic print-quality speeds of up to 200 square feet per hour. Its intuitive operation is facilitated by a large 4.3" color LCD touchscreen, providing complete system control at your fingertips. The printer's Black Enhance Overcoat technology further improves Dmax on glossy media, ensuring deep, rich blacks.

With extensive media handling capabilities, this printer is compatible with a wide variety of photographic and fine art roll media, sheet media, and rigid boards up to 1.5 mm thick. This versatility is complemented by advanced software support, including the Epson Cloud Solution PORT for remote monitoring and fleet management, as well as the Epson Media Installer and Epson Edge Print Pro software for seamless workflow and media management.

The Epson SureColor P20570 is not just a printer; it's a testament to Epson's commitment to excellence, trusted by the world's greatest artists and photographers to print their legacy. Experience the art of performance with this exceptional wide-format printer, designed to meet the highest standards of quality and efficiency in professional printing.

Epson SureColor P20570 Features

  • 12-channel Precision Core Micro TFP printhead
  • UltraChrome PRO12 Ink; widest color gamut in its class
  • Efficient, high-capacity 1.6 L ink pack system
  • Industry-leading print permanence
  • Photographic print-quality speeds of 200 sq. ft/hr

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create stunning, large-format prints with the Epson SureColor P20570 inkjet printer.
  • Achieve precise color accuracy with our UltraChrome PRO12 ink for vivid photo prints.
  • Boost your productivity with print speeds up to 1,314 sq ft/hr on this wide-format printer.
  • Handle various media types and sizes up to 60" wide for diverse printing needs.
  • Enjoy flexible connectivity with SuperSpeed USB and 100Base-TX/1000Base-T interfaces.
  • Get reliable performance with Epson's PrecisionCore printhead technology for consistent output.

What's in the box:

  • Epson SureColor P20570 64" Standard Edition Wide Format Wireless Professional Inkjet Photo Printer
  • Printer Stand with Paper Basket
  • Roll Rests
  • AC Power Cable
  • 2x Roll Adapter
  • Epson Edge Print Pro
  • 3x Preinstalled Maintenance Boxes
  • 2x Additional Maintenance Boxes for Ink Initialization
  • Dust Cover
  • Cleaning Supplies
  • Bulk Ink Delivery System (In a Separate Box)
  • Quick Start Guide
  • (Ink and Media Not Included)
  • Epson 1 Year Limited Warranty
