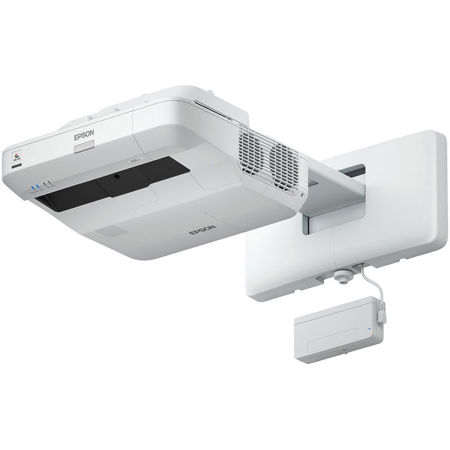

Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector, 1920x1200, 3800 Lumens, White

SKU: IES696UI

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Epson BrightLink 696Ui Specifications

  • Additional Item Includes

    Wall Mount
    Smart Notebook Redemption Code
    4x Soft Pen Tips
    2x Hard Pen Tips
    Touch Module
    Touch Module Cable
    Touch Module Mounting Bracket
    Control Panel
    Mini Audio Cable
    2x 5m USB Cable
    6' USB Cable

  • Projection System

    Epson 3LCD, 3-chip technology

  • Projection Method

    Front/rear/wall mount/table mount

  • Driving Method

    Epson Poly-silicon TFT Active Matrix

  • Pixel Number

    2,304,000 dots (1920 x 1200) x 3

  • Color BrightnessColor Light Output

    3,800 lumens

  • White BrightnessWhite Light Output

    3,800 lumens

  • Aspect Ratio

    16:10

  • Native Resolution

    1920 x 1200 (WUXGA)

  • Lamp Type

    267W UHE

  • Lamp Life

    ECO Mode: Up to10,000 hours, Normal Mode: Up to 5,000 hours

  • Throw Ratio Range

    (16:10) 0.28
    0.37, (4:3) 0.33
    0.44, (16:10) 0.27
    0.37

  • Sizeprojected distance

    (16:10) 70.4"
    100"

  • Keystone Correction

    Horizontal: +/-3 degrees; Vertical: +/-3 degrees

  • USB Plug 'n Play

    For Mac: Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
    For Windows: Windows Vista/Windows 7/Windows 8/Windows 10

  • Contrast Ratio

    Up to 16,000:1

  • Color Reproduction

    Up to 1 billion colors

  • Interactive Color Brightness

    3,800 lumens (Color Light Output)

  • Projection Lens: Type

    Manual focus

  • Projection Lens: F-number

    1.6

  • Projection Lens: Focal Length

    4.2 mm

  • Projection Lens: Zoom Ratio

    Digital zoom 1.0
    1.35x

  • Interactive Connectivity

    USB cable for non-networked

  • Interactive Technology

    Infrared, 850 nm

  • Interactive Modes

    Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual User, Finger Touch: Up to 6 points of touch

  • Calibration Method

    Automatic or Manual

  • Interactive Area

    70"
    100" diagonal (16:10, WUXGA)

  • PC-Free Annotation

    Two pens and two fingers

  • PC-Free Annotation Tools

    Document Cameras, DVD/ Blu-ray Disc player, iPod/iPad devices, Chromebooks

  • PC-Free Annotation Sources

    USB, HDMI, Computer 1, Computer 2, LAN

  • Type of Interactive Input Device

    Digital pen

  • Interactive Pen Functions

    Mouse Functions (left and right click), Electronic Pen, LED Battery Status Indicator

  • Interactive Pen Power

    AA battery, rechargeable

  • Compatible Pen Battery Types

    Eneloop batteries (included), Manganese dry cell, alkaline dry cell

  • Security

    Kensington lock provision, security anchor bar, Password Protection function

  • Operating Temperature

    41deg. to 104deg.F (5deg. to 40deg.C)

  • Display Performance

    NTSC: 480 lines
    PAL: 576 lines (Depends on observation of the multi-burst pattern) Color Modes

  • Input Signal

    NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM

  • Speaker

    16W monaural

  • Fan Noise

    ECO Mode: 30 dB, Normal Mode: 37 dB

  • Functions

    Computer, Video/HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, User, Home, Split, Pen Mode, Link Menu

  • Operating Distance

    19.7' (6.00m)

  • Operating Angle

    Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
    Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

  • Power Supply Voltage

    100
    240 V +/-10%, 50/60 Hz

  • Power Consumption

    425W
    2.9W Standby (Communication On)

  • Interfaces

    2x HDMI
    1x HDMI/MHL
    Computer/Component video: 1x D-sub 15 pin
    Composite video: 1x RCA (Yellow)
    Audio in: 2x Mini stereo
    USB connector: 1x Type B (USB display, audio interactivity and mouse control)
    USB connector: 2x Type A (USB memory/document camera)
    1x RJ-45
    Serial: 1x RS-232c
    Monitor Out/Computer 2: 1x D-sub 15 pin
    Audio Out: 1x Mini stereo

  • Interfaces (Cont.)

    Wireless LAN port: 802.11 b/g/n (included)
    Interactive Synchronization Mini stereo In
    Interactive Synchronization Mini stereo Out
    Touch Unit Connection Port

  • Dimensions

    Interactive Pen: 6.3 x 0.94" (16.00 x 2.39cm) (diameter)
    18.7 x 17.6 x 5.1" (47.50 x 44.70 x 12.95cm)

  • Weight

    Interactive Pen: 1.1 oz (31.18g) (Without battery)
    18.3 lbs (8.30kg)

1 Accessories for Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector, 1920x1200, 3800 Lumens, White

  • All Accessories (1)
  • Laptop Stand (1)

About Epson BrightLink 696Ui

The Full HD ultra short-throw interactive display for classrooms. Transform your classroom into a collaborative learning space with the BrightLink 696Ui touch-enabled, Full HD WUXGA ultra short-throw interactive display. Featuring a powerful 3,800 lumens of color and white brightness, the 696Ui delivers dynamic images up to 100" - from as close as 10" away.

• Powerful display - 3,800 lumens color/white brightness
• Full HD WUXGA display up to 100" - supersize display for clear legibility and visibility from anywhere in the room
• Pen- and touch-based interactivity - touch interactivity allows up to six users to draw, share and collaborate at once using familiar gestures
• Wirelessly connect up to 50 devices - simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS and Android devices
• Easy content sharing - share images between the big screen and wirelessly connected mobile devices, for individualized learning
• Seamless integration with popular curriculum software - includes 1-year subscription and support for SMART Notebook
• Ultra short-throw interactive display - get a large, easy-to-read 100" image from as little as 11" away with virtually no shadow interference
• Long-life, low-cost lamps - lasts up to 10,000 hours in ECO Mode
• DuoLink - install two BrightLink displays side-by-side to create one seamless interactive surface
• 3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology

Turn almost any wall or existing whiteboard into an interactive workspace with pen- and touch-based interactivity - up to two pens or six users at one time. Wirelessly display content from a variety of devices - including Chromebooks - using the Epson iProjection App with Moderator device management software. Plus, it includes a 1-year subscription to SMART Notebook.

Bright and Colorful
Features 3800 lumens of color brightness (color light output) and 3800 lumens of white brightness (white light output).

WUXGA Resolution
1920 x 1200 Full HD widescreen resolution.

Interactive
Make almost any smooth, lightly-colored surface interactive with BrightLink solutions.

Finger-Touch Enabled
Touch, draw, select and interact using intuitive and familiar gestures.

Multi-PC Projection and Moderator Function

Connect up to 50 devices over a network and select up to 4 displays to project simultaneously - great for comparing students work.

Ultra-Short Throw Projector

Can be mounted only 11" away from the board for a projected image as large as 100" diagonal - with no shadow interference.

What's in the box:

  • Epson BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector
  • Quick Start Guide
  • 15' Power Cable
  • 5m USB A/B Cable
  • 5m USB Extender Cable
  • Electronic User Manual
  • Interactive Driver For Mac And PC
  • Easy Interactive Tools
  • Network Management Software
  • Projector Remote Control
  • 2x Interactive Pens
  • Pen Tray
  • 2x AA Batteries for Interactive Pens
  • Battery Charger
  • Epson 90 Day Lamp and 2 Year Projector Limited Warranty
  • (See Specs for More Item Includes)
