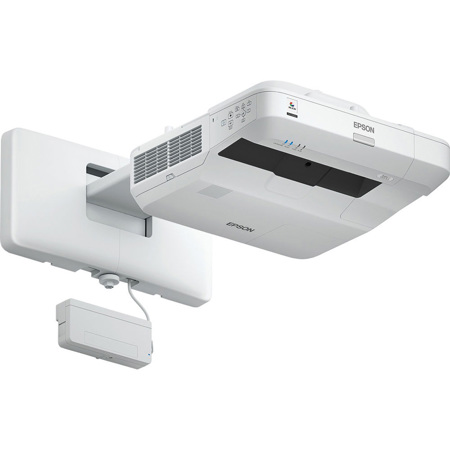

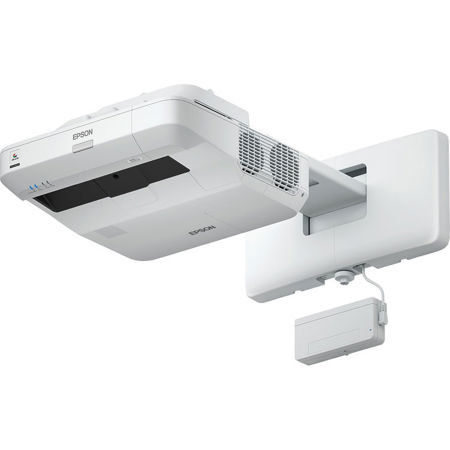

Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector, 1920x1200, 4400 Lumens, White

SKU: IES697UI

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Epson BrightLink 697Ui Specifications

  • Additional Item Includes

    2x AA Batteries for Remote
    Wall Mount
    Smart Notebook Redemption Code
    4x Soft Pen Tips
    2x Hard Pen Tips
    Touch Module
    Touch Module Cable
    Touch Module Mounting Bracket

  • System Compatibility

    Microsoft Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x

  • Projection System

    Epson 3LCD, 3-chip technology

  • Projection Method

    Front/rear/wall mount/table mount

  • Driving Method

    Epson Poly-silicon TFT Active Matrix

  • Pixel Number

    2,304,000 dots (1920 x 1200) x 3

  • Color BrightnessColor Light Output

    4,400 lumens

  • White BrightnessWhite Light Output

    4,400 lumens

  • Aspect Ratio

    16:10

  • Native Resolution

    1920 x 1200 (WUXGA)

  • Lamp Type

    300W UHE

  • Lamp Life

    ECO Mode: Up to10,000 hours, Normal Mode: Up to 5,000 hours

  • Throw Ratio Range

    (16:10) 0.22
    0.37, (4:3) 0.33
    0.44, (16:9) 0.27
    0.37

  • Sizeprojected distance

    (16:10) 70.4"
    100"

  • Keystone Correction

    Horizontal: +/-3 degrees; Vertical: +/-3 degrees

  • USB Plug 'n Play

    For Mac: Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
    For Windows: Windows Vista/Windows 7/ Windows 8/Windows 10

  • Contrast Ratio

    Up to 16,000:1

  • Color Reproduction

    Up to 1 billion colors

  • Interactive Color Brightness

    4,400 lumens (Color Light Output)

  • Projection Lens: Type

    Manual focus

  • Projection Lens: F-number

    1.6

  • Projection Lens: Focal Length

    4.2 mm

  • Projection Lens: Zoom Ratio

    Digital zoom 1.0
    1.35x

  • Interactive Connectivity

    USB cable for non-networked

  • Interactive Technology

    Infrared, 850 nm

  • Interactive Modes

    Computer Interactivity/Input,PC-free and Whiteboard Annotation Mode, Pen: Dual User, Finger Touch: Up to 6 points of touch

  • Calibration Method

    Automatic or Manual

  • Interactive Area

    70"
    100" diagonal (16:10, WUXGA)

  • PC-Free Annotation

    Two pens and two fingers

  • PC-Free Annotation Tools

    Epson Easy Interactive Tools, Dual User

  • PC-Free Annotation Sources

    USB, HDMI, Computer 1, Computer 2, LAN

  • Type of Interactive Input Device

    Digital pen

  • Interactive Pen Functions

    Mouse Functions (left and right click), Electronic Pen, LED Battery Status Indicator

  • Interactive Pen Power

    AA battery, rechargeable

  • Compatible Pen Battery Types

    Eneloop batteries (included), Manganese dry cell, alkaline dry cell

  • Security

    Kensington lock provision, security anchor bar, Password Protection function

  • Operating Temperature

    41deg. to 104deg.F (5deg. to 40deg.C)

  • Display Performance

    NTSC: 480 lines
    PAL: 576 lines (Depends on observation of the multi-burst pattern) Color Modes

  • Input Signal

    NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM

  • Speaker

    16W monaural

  • Fan Noise

    ECO Mode: 30 dB, Normal Mode: 38 dB

  • Functions

    Computer, Video/HDMI, USB, LAN, Whiteboard, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, User, Home, Split, Pen Mode, Link Menu

  • Operating Distance

    19.7' (6.00m)

  • Operating Angle

    Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
    Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

  • Power Supply Voltage

    100
    240 V +/-10%, 50/60 Hz

  • Power Consumption

    477W
    0.22W Standby (Communication Off)

  • Interfaces

    1x HDMI
    1x HDMI/MHL
    Computer/Component video: 1x D-sub 15 pin
    Composite video: 1x RCA (Yellow)
    Audio in: 2x Mini stereo
    USB connector: 1x Type B (USB display, audio interactivity and mouse control)
    USB connector: 2x Type A (USB memory/document camera)
    1x RJ-45
    Serial: 1x RS-232c
    Monitor Out: 1x D-sub 15 pin
    Audio Out: 1x Mini stereo
    Wireless LAN port: 802.11 b/g/n (included)

  • Interfaces (Cont.)

    Interactive Synchronization Mini stereo In
    Interactive Synchronization Mini stereo Out
    Touch Unit Connection Port
    DVI-Out
    Remote

  • Dimensions

    Interactive Pen: 6.3 x 0.94" (16.00 x 2.39cm) (diameter)
    18.7 x 17.6 x 5.1" (47.50 x 44.70 x 12.95cm)

  • Weight

    Interactive Pen: 1.1 oz (31.18g) (Without battery)
    18.7 lbs (8.48kg)

1 Accessories for Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector, 1920x1200, 4400 Lumens, White

  • All Accessories (1)
  • Laptop Stand (1)

About Epson BrightLink 697Ui

The bright, Full HD ultra short-throw interactive display for classrooms. The ultimate academic collaboration tool, the BrightLink 697Ui touch-enabled, wireless ultra short-throw interactive display delivers supersize Full HD WUXGA images up to 100" - from as close as 10" away. Featuring an amazingly bright 4,400 lumens of color and white brightness, the 697Ui turns almost any wall or existing whiteboard into a collaborative interactive workspace.

• Amazingly bright display - 4,400 lumens color/white brightness
• Full HD WUXGA display up to 100" - supersize display for clear legibility and visibility from anywhere in the room
• Pen- and touch-based interactivity - touch interactivity allows up to six users to draw, share and collaborate at once using familiar gestures
• Encrypted enterprise-level security - for peace of mind; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols
• Wirelessly connect up to 50 devices - simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS and Android devices
• Easy content sharing - share images between the big screen and wirelessly connected mobile devices, for individualized learning
• Whiteboard sharing - remote collaboration allows others to see and write to the whiteboard, even when they're not in the room
• Wall-mounted control panel - for easy projector control at your fingertips with access to On/Off, Source selection and PC-free whiteboarding
• Seamless integration with popular curriculum software - includes 1-year subscription and support for SMART Notebook
• 3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology

Offering encrypted enterprise-level security, wireless support and content sharing for a variety of devices - including Chromebooks - it's perfect for today's BYOD classrooms. Plus, PC-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription to SMART Notebook.

Bright and Colorful
Features 4400 lumens of color brightness (color light output) and 4400 lumens of white brightness (white light output).

WUXGA Resolution
1920 x 1200 Full HD widescreen resolution.

Interactive
Make almost any smooth, lightly-colored surface interactive with BrightLink solutions.

Finger-Touch Enabled
Touch, draw, select and interact using intuitive and familiar gestures.

Multi-PC Projection and Moderator Function

Connect up to 50 devices over a network and select up to 4 displays to project simultaneously - great for comparing students work.

Wireless Ready
Includes a high-speed LAN module for wireless connectivity.

What's in the box:

  • Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector
  • Quick Start Guide
  • 15' Power Cable
  • Electronic User Manual
  • Interactive Driver for Mac and PC
  • Easy Interactive Tools
  • Network Management software
  • Projector Remote Control
  • 2x Interactive Pens
  • Pen Tray
  • 2x AA Batteries for Interactive Pens
  • Battery Charger
  • 2x AA Batteries for Remote
  • Epson 90 Day Lamp and 2 Year Projector Limited Warranty
  • (See Specs for More Item Includes)
