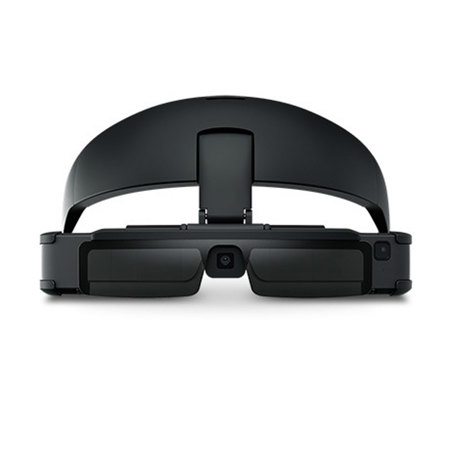

Epson Moverio BT-45C AR Smart Glasses

SKU: IESBT45C

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Epson BT-45C Specifications

Optical

Optical

Jump to...
  • Display Device Type

    Si-OLED (Silicon-Organic Light-Emitting Diode)

  • Brightness

    1000 cd/sq. m (Max)

  • Contrast

    5000,000:1

  • Transmittance

    Headset 40%, Shade 2%

  • Display Size

    0.453" (1.15cm) Wide Panel

  • Aspect Ratio

    16:9

  • Pixel Number

    2,073,600 (1920 x 1080) RGB

  • Refresh Rate

    60 Hz

  • Field of View

    34 Degree (diagonal)

  • Screen Size (Projected Distance)

    120" (304.8cm) at 16.40' (5m)

  • Color Reproduction

    24-bit color (16.77 million colors)

Sensors

Jump to...
  • Compass

    Yes

  • Gyroscope

    Yes

  • Accelerometer

    Yes

  • Ambient Light Sensor

    Yes

  • Data Transfer Method

    USB 2.0, Sensor Class HID1.11

  • Pixel Number

    8 megapixel

  • Resolution and Frame Rate

    8M (3264 x 2448) @ 30/10/1 fps, 4M (2560 x 1440) @ 30/20/2 fps, 1920 x 1080 @ 30/5 fps, 1600 x 1200 @ 30/5 fps, 1280 x 720 @ 60/30/10 fps, 640 x 480 @ 60/30 fps

  • Focus Type

    Auto

  • Exposure Type

    Auto

  • White Balance Type

    Auto

  • Depth of Field

    110 mm to Infinity

  • Field of View

    Horizontal 60 Degree over, vertical 45 Degree over

  • Data Transfer Method

    USB 2.0, Audio UAC, Video UVC 1.1

  • Supported Video Format

    H.264, MJPG, YUV

  • Supported Image Format

    JPEG

Video Input

Jump to...
  • USB

    Type-C

  • Video I/F

    DisplayPort Alternate Mode (DP Alt Mode)

  • Display Port Version

    1.2

  • Resolution

    1080p/60 Hz

  • EDID

    Supported

  • HDCP

    Supported

  • Data Transfer Method

    USB 2.0, Device Class HID 1.11, Data Type Sensor Data, Headset API Control, Firmware Update

  • Audio

    3.5 mm audio jack (CTIA standard earphones with microphone compatibility)
    Dual noise-reduction microphone, speaker

  • Audio Output

    80 dBA, 92 dBA (when using Moverio Link/Moverio Link Pro)

General

Jump to...
  • Temperature (Operating)

    41 Degree F - 95 Degree F (5 Degree C - 35 Degree C)

  • Humidity (Operating)

    20% - 80%

  • Temperature (Storage)

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • USB Power Delivery

    Rev. 3.0, Input (5.0 V) (1.5 A)

  • ANSI Shade

    ANSI Z87.1 safety-glass compliant

  • Dust-Resistant and Waterproof

    IP52 (except for USB port)

  • Drop Resistance

    MIL-STD-810H Drop Test Compliant

Eco Features

Jump to...
  • Eco Features

    RoHS compliant
    Recyclable product
    Epson America, Inc. is a SmartWay Transport Partner

Physical

Jump to...
  • Dimensions (W x D x H)

    Headset: 7.8 x 11.4 x 2.2" (200 x 290 x 57mm)
    Headband: 7.6 x 10.9 x 4.7" (195 x 279 x 120mm)
    Helmet Clip: 1.4 x 2.4 x 2.1" (36 x 62 x 54mm)

  • Weight

    Headset: 6.52 oz (185g) (Without shade, harness and IF box) (Approx.)
    Headband: 19.22 oz (545g) (Headset and headband with shade, top strap, harness and IF box) (Approx.)
    9.17 oz (260g) (Without top strap and clip) (Approx.)
    2.99 oz (85g) (Without rubber band and clip) (Approx.)

  • Supported 3D Format

    Side-by-Side Format (using the Utility application software)

  • Firmware Update Supported

    Requires connecting to PC by USB Type-C

  • Supported OS for Host Device

    (USB Type Connection) Windows 10 (depends on supported status of USB Type-C on connected device), Android 8.0 or later

  • UPC Code

    010343971738

About Epson BT-45C

Experience the cutting-edge of business productivity with the Moverio BT-45C AR Smart Glasses. These advanced glasses are specifically designed for mission-critical tasks such as troubleshooting, maintenance, inspection, and training. They facilitate hands-free, "see-what-I-see" collaboration, bridging the gap between on-site technicians and remote experts, thereby enhancing efficiency, improving safety, and minimizing downtime.

As the latest offering in Epson's new generation of AR smart glasses, the Moverio BT-45C is equipped with state-of-the-art Si-OLED technology, a proprietary optical engine, and a binocular see-through Full HD display with a 34-degree field-of-view. This combination ensures a seamless integration of digital content with the real world.

The Moverio BT-45C AR Smart Glasses are compatible with a wide range of Android or Windows host devices via the USB-C interface, supporting a diverse array of applications. Its robust design, with high shock and dust resistance, is built to withstand the most demanding work environments.

Comfort and flexibility are at the forefront of the Moverio BT-45C's design. It features an adjustable, padded headband and helmet mounting options, making it adaptable to various frontline work attire and helmet models.

The integrated Si-OLED technology, proprietary optical engine, and binocular see-through Full HD display with a 34-degree field-of-view provide a seamless and high-quality viewing experience. The headset's flip-up function allows users to secure a clear field of view for enhanced efficiency and safety. For added eye protection, tinted and clear ANSI Z87.1 compatible shields can be attached to the headset.

The Moverio BT-45C AR Smart Glasses also feature an advanced centered 8MP auto-focus camera with an optimized angle that precisely captures the wearer's point of view, enabling a true "see-what-I-see" experience. The headset is equipped with 9-axis and ambient light sensors, which allow developers to fully exploit the potential of augmented reality via the Moverio SDK.

The built-in audio system includes an integrated speaker and noise-canceling microphone to enhance the quality of hands-free communication. External audio devices can be connected via the mini audio jack.

In line with Epson's commitment to environmental sustainability, the Moverio BT-45C AR Smart Glasses are RoHS compliant and recyclable. Epson America, Inc. is also a proud SmartWay Transport Partner.

Epson BT-45C Features

  • Seamless binocular see-through Full HD display with 34 Degree field-of-view
  • Headband and helmet mounting options to fit a variety of work attire
  • Versatile USB-C interface supports an array of application
  • Robust design with shock and dust resistance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Provides seamless integration of digital content with the real world via a 34-degree field-of-view
  • Robust design with high shock and dust resistance, suitable for demanding work environments
  • Features adjustable, padded headband and helmet mounting options for comfort and flexibility
  • Boasts an advanced centered 8MP auto-focus camera for a true "see-what-I-see" experience
  • Integrated speaker and noise-canceling microphone for enhanced hands-free communication
  • Environmentally friendly with RoHS compliance and recyclability

What's in the box:

  • Epson Moverio BT-45C AR Smart Glasses
  • Headband
  • Helmet Clip

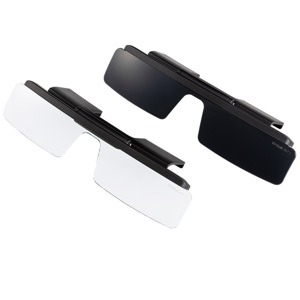

  • Dark Shade
  • Clear Shade
  • Carrying Case
  • Cleaning Cloth
  • User Manual
  • Epson 2 Year Limited Warranty
