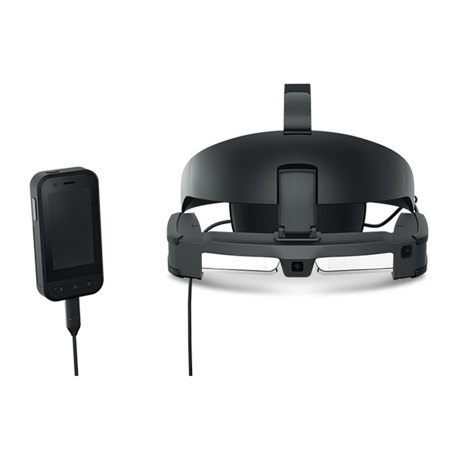

Epson Moverio BT-45CS AR Smart Glasses with Intelligent Touch Controller

SKU: IESBT45CS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Intelligent Touch Controller in Moverio BT-45CS AR Smart Glasses?

The Intelligent Touch Controller in the Moverio BT-45CS AR Smart Glasses allows for more precise and intuitive control over the device, enhancing the user's augmented reality experience.

What makes the image quality of Moverio BT-45CS AR Smart Glasses superior?

The Moverio BT-45CS AR Smart Glasses feature integrated Si-OLED technology and a proprietary optical engine. This, combined with a binocular see-through Full HD display, creates a seamless and superior viewing experience.

How does the Moverio BT-45CS AR Smart Glasses facilitate remote assistance?

The Moverio BT-45CS AR Smart Glasses support a 'see-what-I-see' collaboration. This is facilitated by a centered 8MP auto-focus camera on the headset that captures the wearer's point of view, allowing remote experts to provide efficient assistance.

What makes the Moverio BT-45CS AR Smart Glasses eco-friendly?

The Moverio BT-45CS AR Smart Glasses are RoHS compliant and recyclable, reflecting Epson's commitment to environmental sustainability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Epson BT-45CS Specifications

Optical

Optical

Jump to...
  • Display Device Type

    Si-OLED (Silicon-Organic Light-Emitting Diode)

  • Brightness

    1000 cd/sq. m (Max)

  • Contrast

    5000,000:1

  • Transmittance

    Headset 40%, Shade 2%

  • Display Size

    0.453" (1.15cm) Wide Panel

  • Aspect Ratio

    16:9

  • Pixel Number

    2,073,600 (1920 x 1080) RGB

  • Refresh Rate

    60 Hz

  • Field of View

    34 Degree (diagonal)

  • Screen Size (Projected Distance)

    120" (304.8cm) at 16.40' (5m)

  • Color Reproduction

    24-bit color (16.77 million colors)

Sensors

Jump to...
  • Compass

    Yes

  • Gyroscope

    Yes

  • Accelerometer

    Yes

  • Ambient Light Sensor

    Yes

  • Data Transfer Method

    USB 2.0, Sensor Class HID1.11

  • Pixel Number

    8 megapixel

  • Resolution and Frame Rate

    8M (3264 x 2448) @ 30/10/1 fps, 4M (2560 x 1440) @ 30/20/2 fps, 1920 x 1080 @ 30/5 fps, 1600 x 1200 @ 30/5 fps, 1280 x 720 @ 60/30/10 fps, 640 x 480 @ 60/30 fps

  • Focus Type

    Auto

  • Exposure Type

    Auto

  • White Balance Type

    Auto

  • Depth of Field

    110 mm to Infinity

  • Field of View

    Horizontal 60 Degree over, vertical 45 Degree over

  • Data Transfer Method

    USB 2.0, Audio UAC, Video UVC 1.1

  • Supported Video Format

    H.264, MJPG, YUV

  • Supported Image Format

    JPEG

Video Input

Jump to...
  • USB

    Type-C

  • Video I/F

    DisplayPort Alternate Mode (DP Alt Mode)

  • Display Port Version

    1.2

  • Resolution

    1080p/60 Hz

  • EDID

    Supported

  • HDCP

    Supported

  • Data Transfer Method

    USB 2.0, Device Class HID 1.11, Data Type Sensor Data, Headset API Control, Firmware Update

  • Audio

    3.5 mm audio jack (CTIA standard earphones with microphone compatibility)
    Dual noise-reduction microphone, speaker

  • Audio Output

    80 dBA, 92 dBA (when using Moverio Link/Moverio Link Pro)

General

Jump to...
  • Temperature (Operating)

    41 Degree F - 95 Degree F (5 Degree C - 35 Degree C)

  • Humidity (Operating)

    20% - 80%

  • Temperature (Storage)

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • USB Power Delivery

    Rev. 3.0, Input (5.0 V) (1.5 A)

  • ANSI Shade

    ANSI Z87.1 safety-glass compliant

  • Dust-Resistant and Waterproof

    IP52 (except for USB port)

  • Drop Resistance

    MIL-STD-810H Drop Test Compliant

Controller

Jump to...
  • Display Device Type

    IPS LCD

  • Brightness

    330 cd/sq. m (max.)

  • Contrast

    Up to 800:1

  • Display Size

    2.95" (7.49cm) panel

  • Pixels

    409,920 (480 x 854) RGB

  • Refresh Rate

    60 Hz

  • Color Reproduction

    24-bit color (16.77 million colors)

  • OS Version

    Android 10

  • CPU Qualcomm

    SXR1130

  • Battery

    3,400 mAh

  • Battery Type

    Lithium Polymer

  • Memory

    4GB

  • Storage

    64GB

  • External Memory

    micro SD (2GB max.), micro SDHC (32GB max.), micro SDXC (2TB max.)

  • Camera

    13 megapixel, auto focus

  • Bluetooth

    Standard Ver. 5

  • USB

    2.0

  • Supported File Formats

    Movie: MPEG-2, MPEG-4, H.263, H.264, H.265 (HEVC), VP8, VP9
    Audio: AAC, HE-AAC, AMR, FLAC, MP3 (8 to 320 kbps), CBR/VBR, Vorbis, WAV, OpusUser Interface: Touch panel, Power Button, Volume Keys, Back Key, Home Key, History Key, Function Key
    Audio: Microphone, receiver, speaker (0.5 W), 3.5 mm audio jack (CTIA standard earphones with microphone compatibility)

  • User Interface

    Touch panel, Power Button, Volume Keys, Back Key, Home Key, History Key, Function Key

  • Audio

    Microphone, receiver, speaker (0.5 W), 3.5 mm audio jack (CTIA standard earphones with microphone compatibility)

Eco Features

Jump to...
  • Eco Features

    RoHS compliant
    Recyclable product
    Epson America, Inc. is a SmartWay Transport Partner

Physical

Jump to...
  • Dimensions (W x D x H)

    Headset: 7.8 x 11.4 x 2.2" (200 x 290 x 57mm)
    Headband: 7.6 x 10.9 x 4.7" (195 x 279 x 120mm)
    Helmet Clip: 1.4 x 2.4 x 2.1" (36 x 62 x 54mm)

  • Weight

    Headset: 6.52 oz (185g) (Without shade, harness and IF box) (Approx.)
    Headband: 19.22 oz (545g) (Headset and headband with shade, top strap, harness and IF box) (Approx.)
    9.17 oz (260g) (Without top strap and clip) (Approx.)
    2.99 oz (85g) (Without rubber band and clip) (Approx.)

  • Supported 3D Format

    Side-by-Side Format (using the Utility application software)

  • Firmware Update Supported

    Requires connecting to PC by USB Type-C

  • Supported OS for Host Device

    (USB Type Connection) Windows 10 (depends on supported status of USB Type-C on connected device), Android 8.0 or later

  • UPC Code

    010343971745

About Epson BT-45CS

How about stepping into the future of business productivity with the innovative Moverio BT-45CS AR Smart Glasses with Intelligent Touch Controller These high-tech glasses are purpose-built to revolutionize mission-critical tasks such as troubleshooting, maintenance, inspection, and training. They support a hands-free, "see-what-I-see" collaboration between on-site technicians and remote experts, enhancing efficiency, improving safety, and reducing downtime.

The Moverio BT-45CS is a turnkey hardware solution that combines a sleek Moverio headset and an intuitive intelligent controller, designed to maximize ease of use in dynamic work environments. Representing a new generation of AR smart glasses from Epson, the Moverio BT-45CS is equipped with all-new Si-OLED technology, a proprietary optical engine, and a binocular see-through Full HD display with a 34-degree field-of-view. This allows for seamless integration of digital content with the outside world.

Built to withstand demanding work environments, these stylish smart glasses offer a robust design with high shock and dust resistance. They feature an adjustable, padded headband and helmet mounting options, ensuring a comfortable fit with a variety of frontline work attire and helmet models.

The Moverio BT-45CS AR Smart Glasses deliver incredible image quality, thanks to integrated Si-OLED technology and a proprietary optical engine. The easy-to-use touchscreen interface and array of connectivity options, including dual-band Wi-Fi and Bluetooth 5.0, maximize convenience and usability.

The headset is equipped with a centered 8MP auto-focus camera with an optimized angle, capturing the wearer's point of view for a true "see-what-I-see" experience. A second 13MP camera on the intelligent controller allows users to take detailed, up-close photos for enhanced precision.

Additional features include 9-axis and ambient light sensors, GPS sensors on the controller, integrated speaker and noise-canceling microphone, and the ability to connect external audio devices via the mini audio jack. The headset also has a flip-up function for a clear field of view and can be fitted with tinted and clear ANSI Z87.1 compatible shields for added eye protection.

The Moverio BT-45CS AR Smart Glasses are not only user-friendly but also eco-friendly. They are RoHS compliant and recyclable, reflecting Epson's commitment to environmental sustainability. Experience the future of augmented reality with the Moverio BT-45CS AR Smart Glasses.

Epson BT-45CS Features

  • Seamless binocular see-through Full HD display with 34 Degree field-of-view
  • Headband and helmet mounting options to fit a variety of work attire
  • Includes easy-to-use intelligent touchscreen controller
  • Robust design with shock and dust resistance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • High-tech AR Smart Glasses with Intelligent Touch Controller for enhanced productivity
  • Integrated Si-OLED technology and proprietary optical engine for superior image quality
  • Robust design with high shock and dust resistance, ideal for dynamic work environments
  • Hands-free, "see-what-I-see" collaboration for efficient remote assistance
  • Dual cameras (8MP on headset, 13MP on controller) for detailed, precise capture
  • Eco-friendly product, RoHS compliant and recyclable, reflecting commitment to sustainability

What's in the box:

  • Epson Moverio BT-45CS AR Smart Glasses
  • Touch Controller
  • Headband
  • Helmet Clip
  • Dark Shade
  • Clear Shade
  • Carrying Case
  • Cleaning Cloth
  • USB Cable
  • SD Card Eject Pin
  • User Manual
  • Epson 2 Year Limited Warranty
